Rays Lian Li PC201B

Rays Lian Li PC201B @Nethands

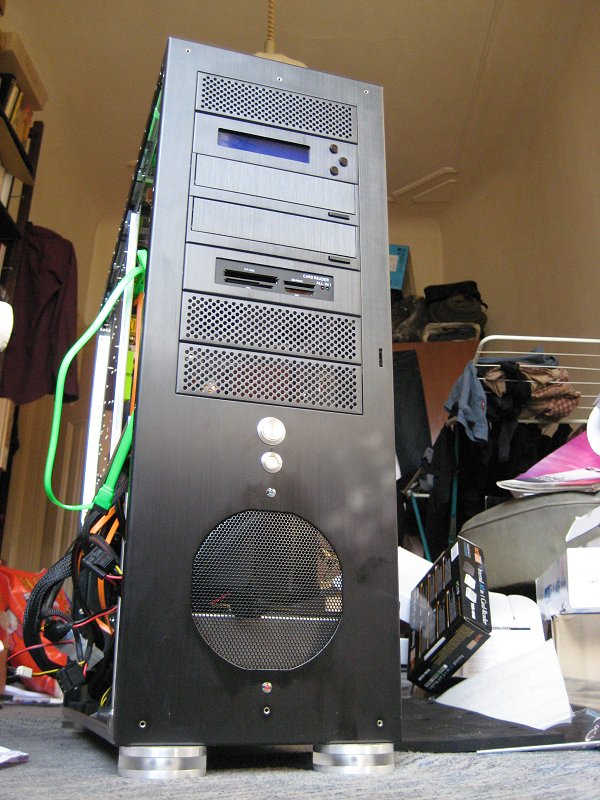

Lian Li PC201B

PC201B PC201B

Hardware

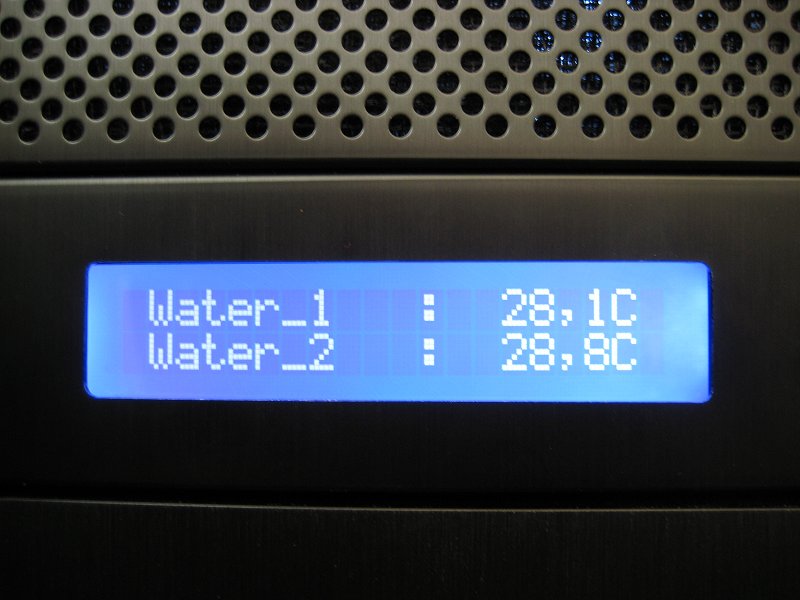

Watercooling

Aircooling

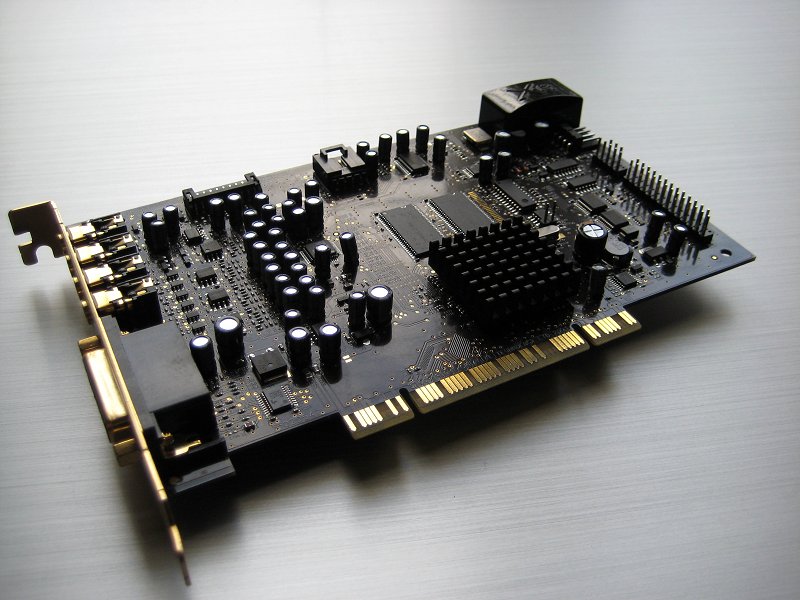

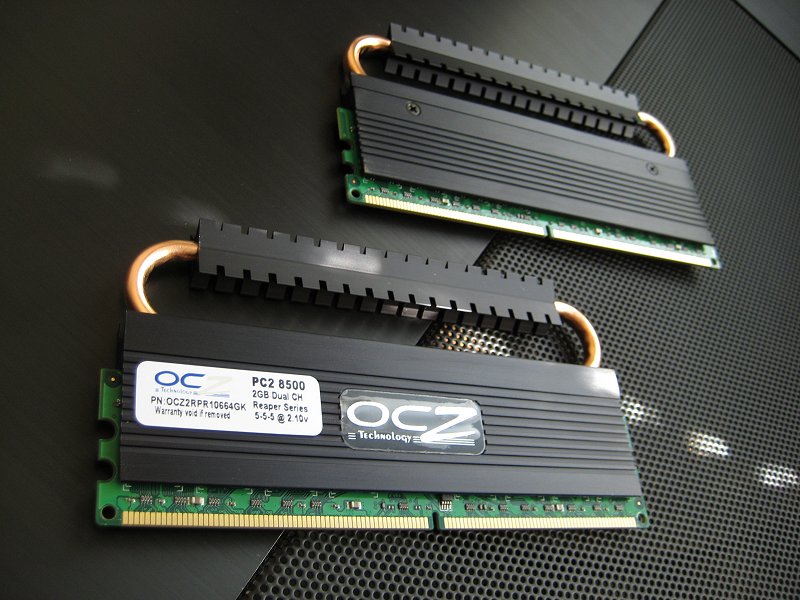

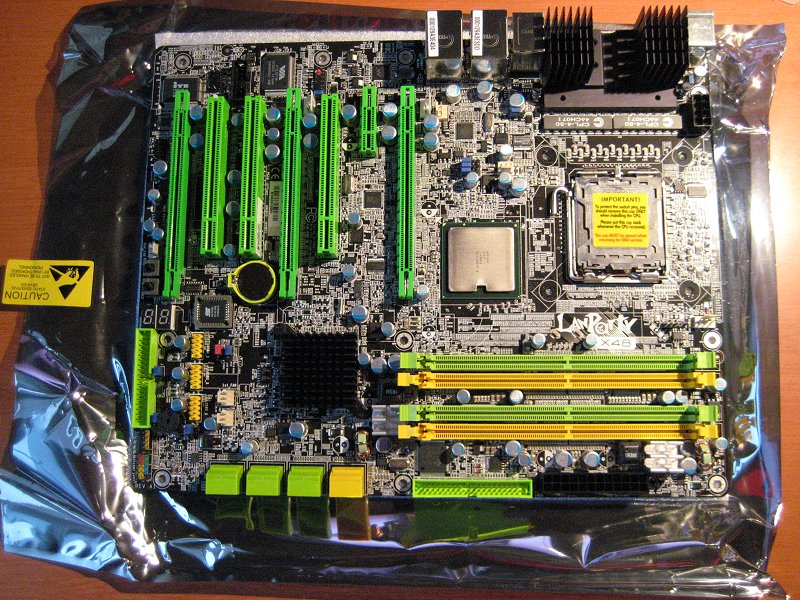

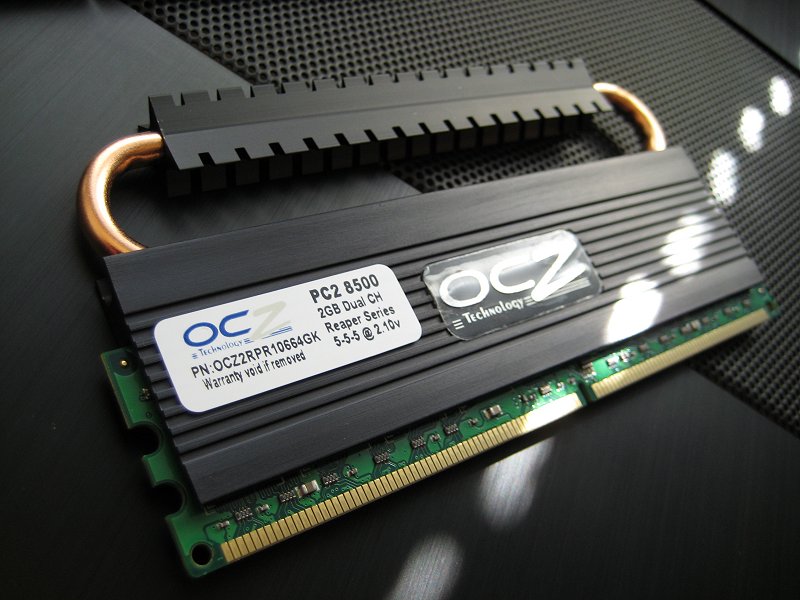

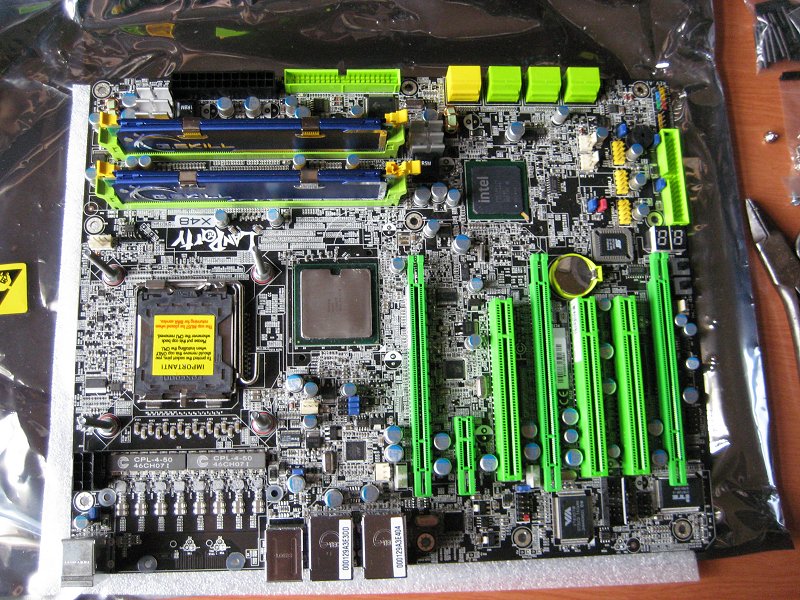

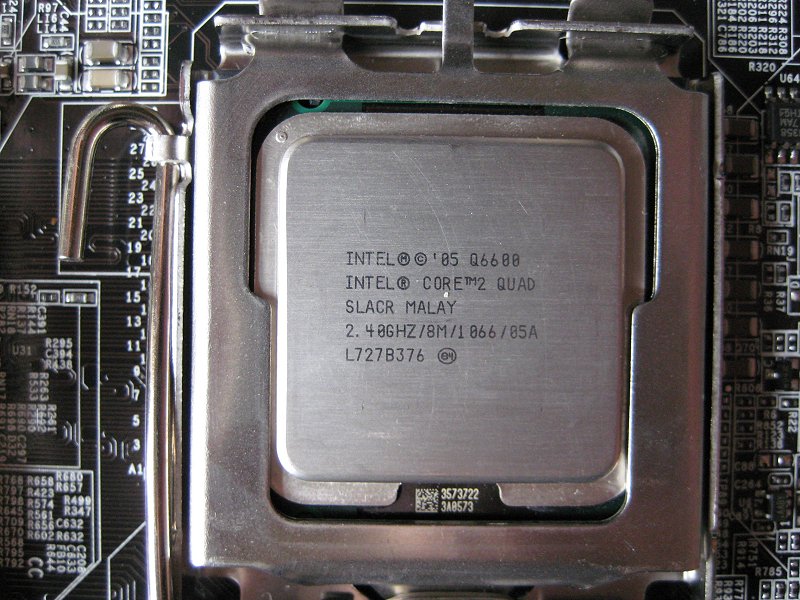

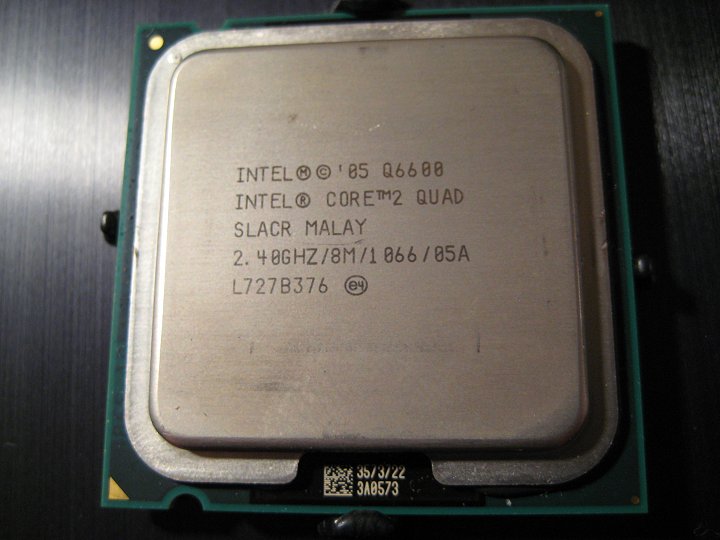

DFI LANPARTY LT X48-T2R, C2Q 6600, OCZ PC2 8500 C5 Reaper and Creative X-FI

PC201B PC201B PC201B PC201B PC201B

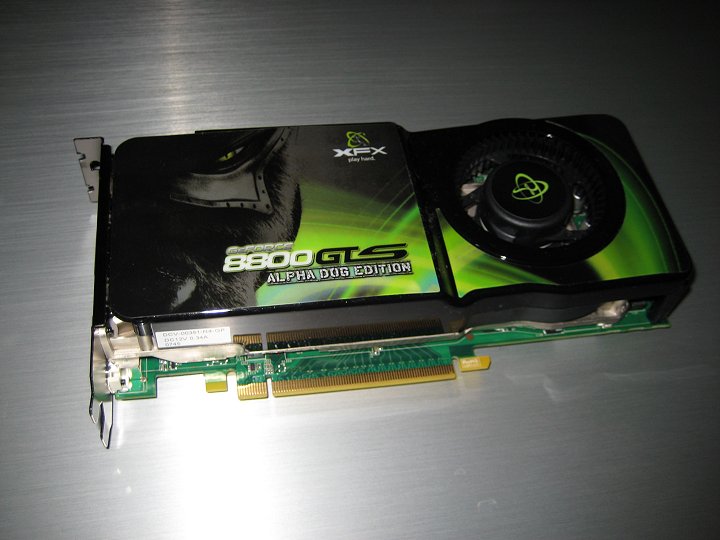

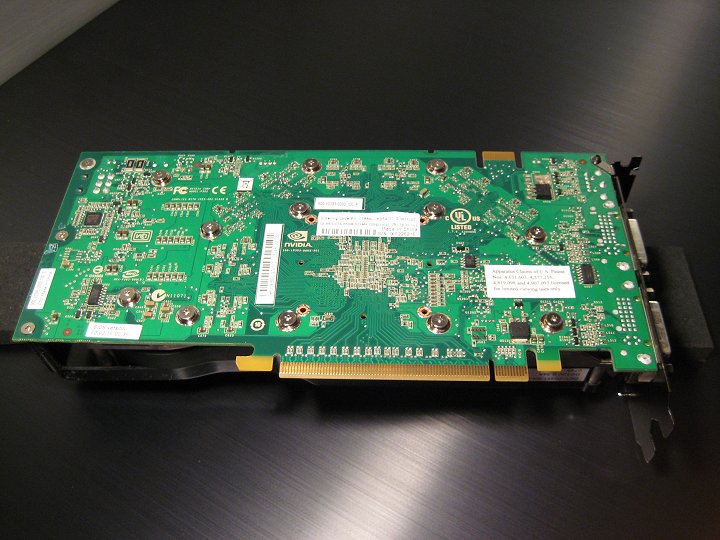

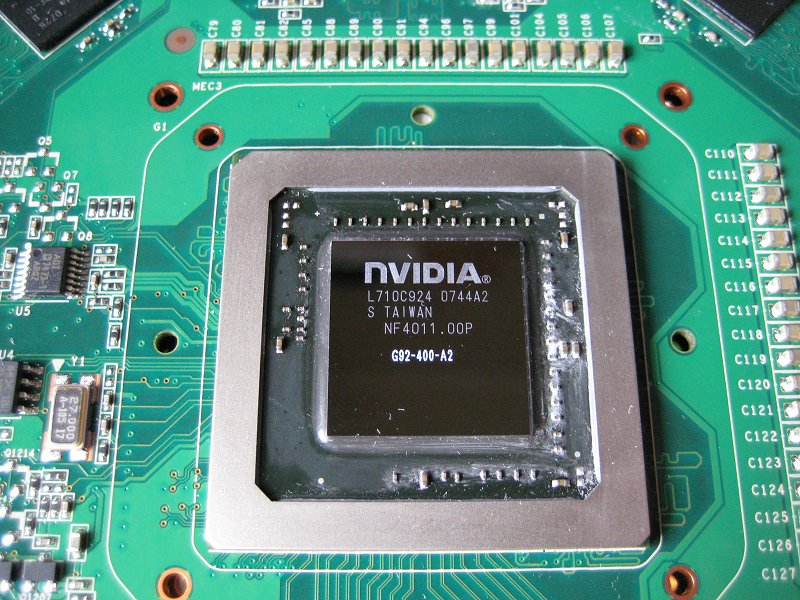

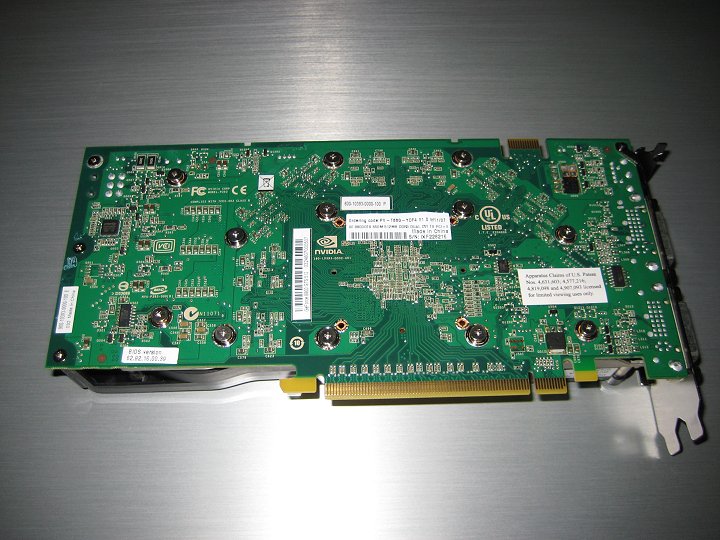

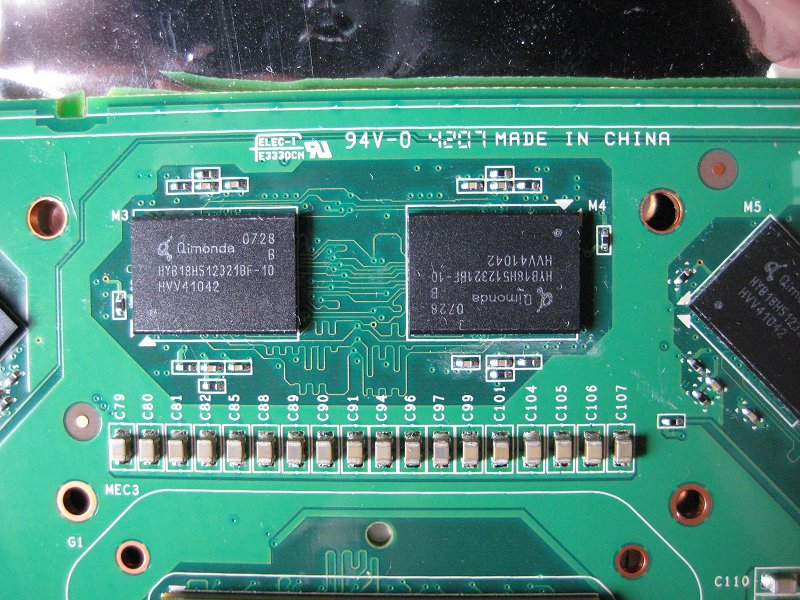

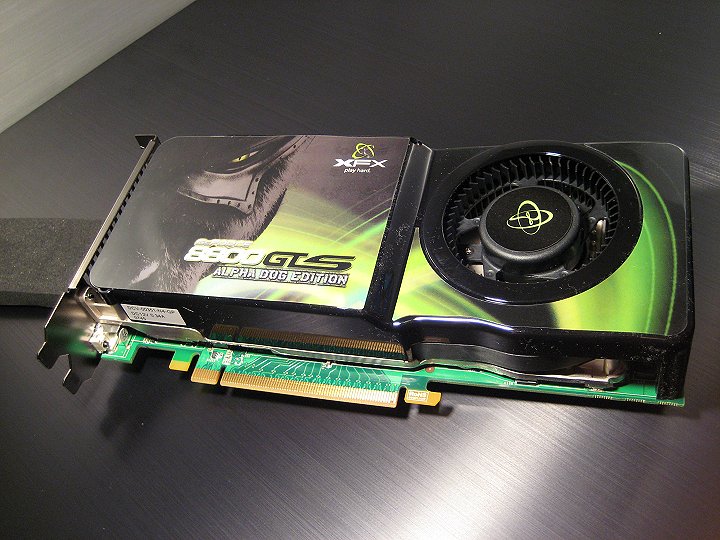

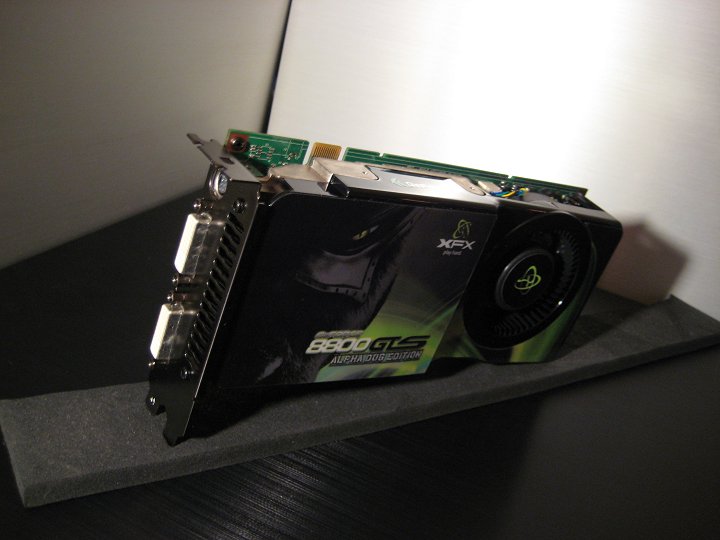

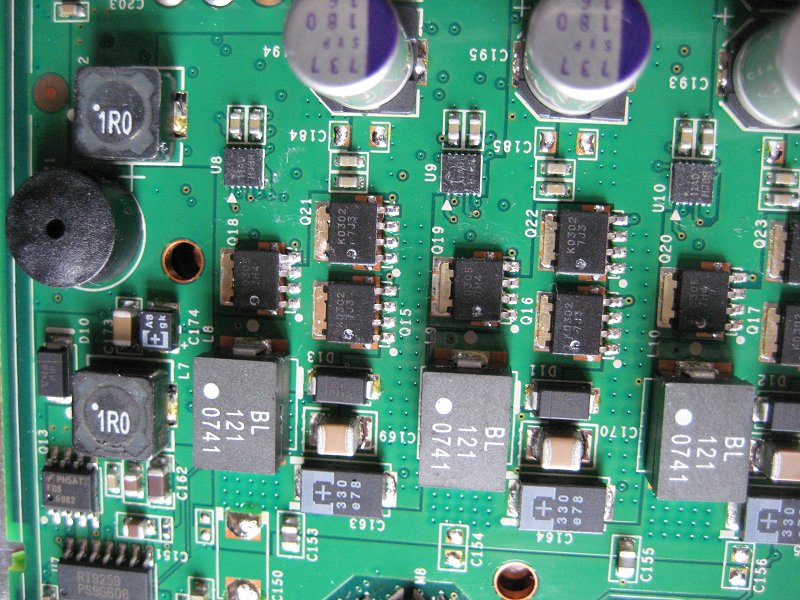

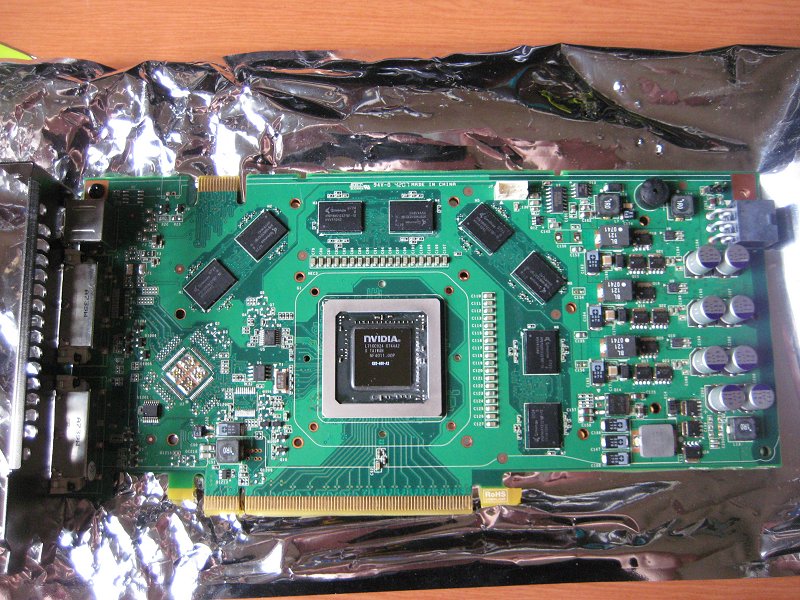

XFX 8800 GTS(G92) 512

PC201B PC201B PC201B PC201B PC201B

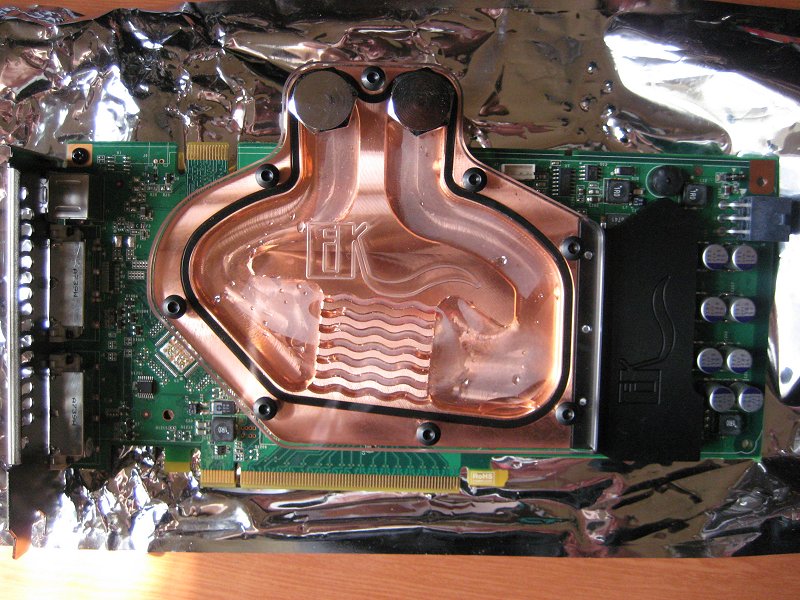

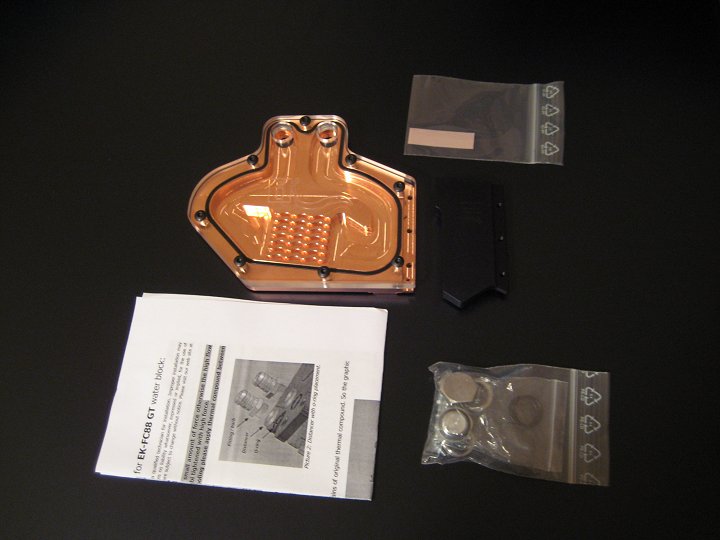

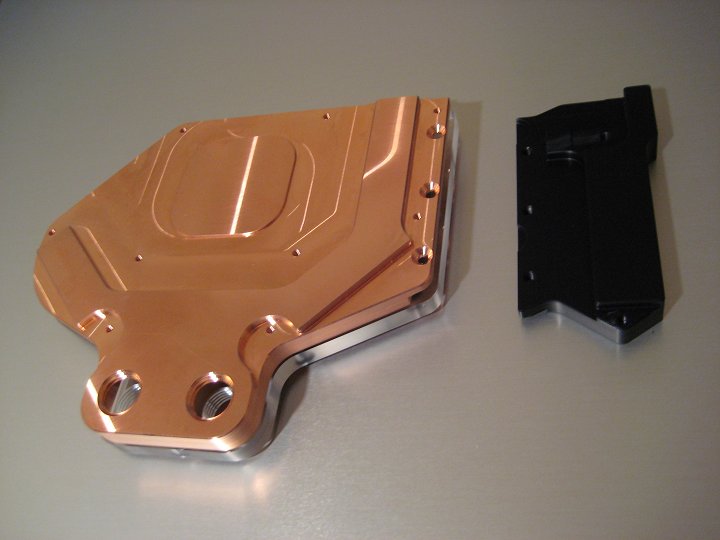

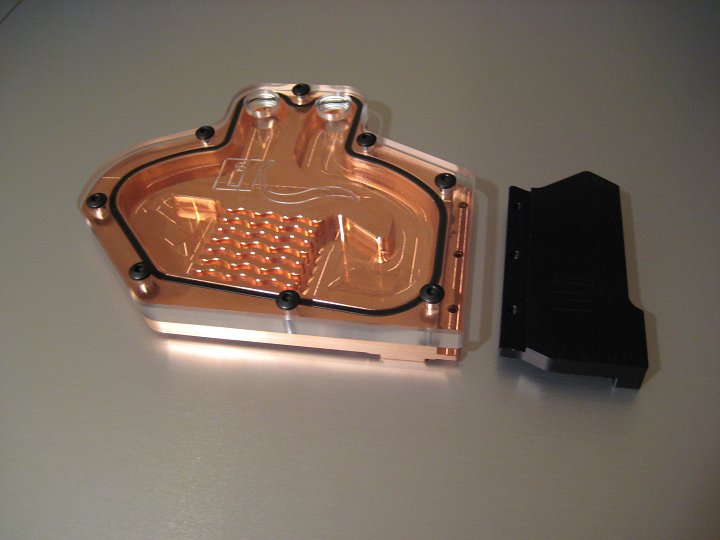

EK-FC8800 GT/GTS(g92)

PC201B PC201B PC201B

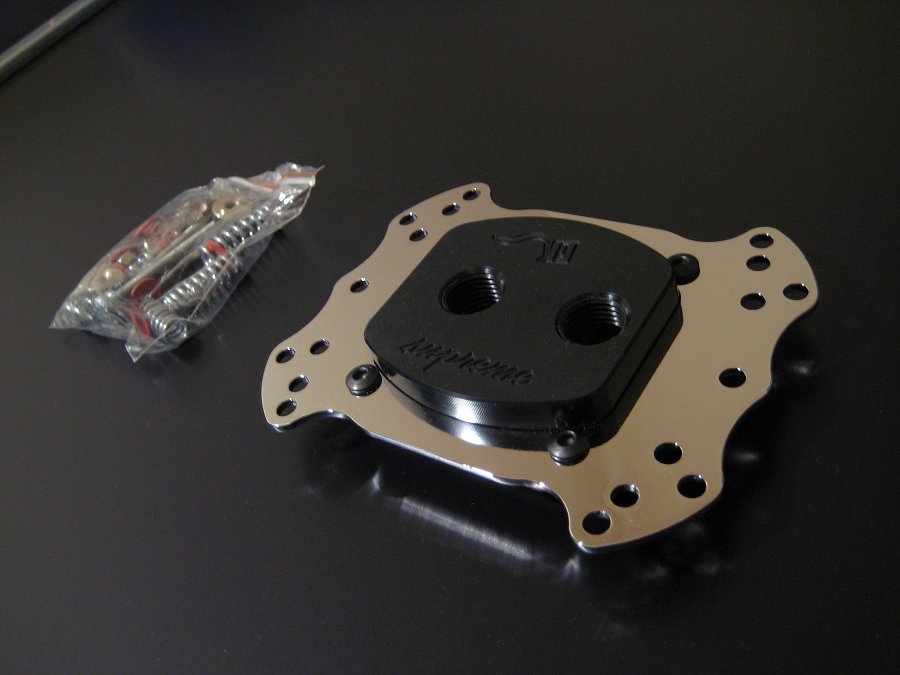

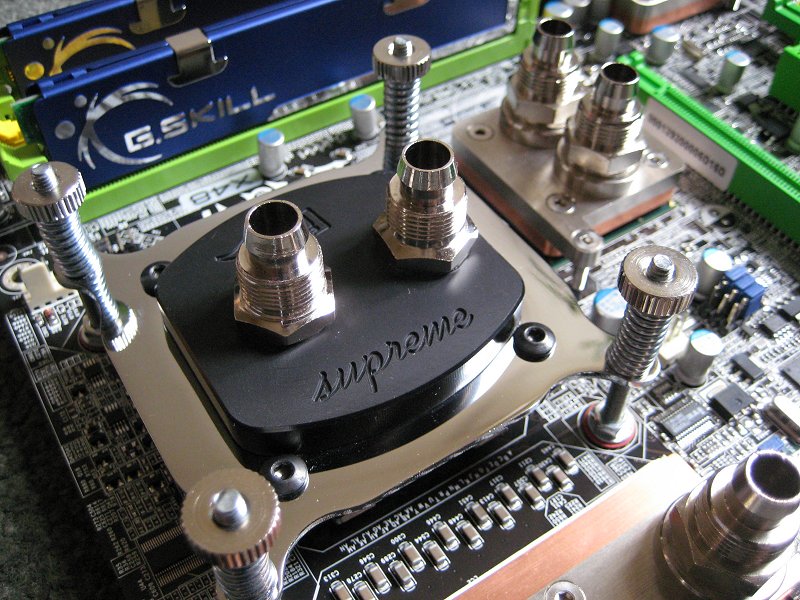

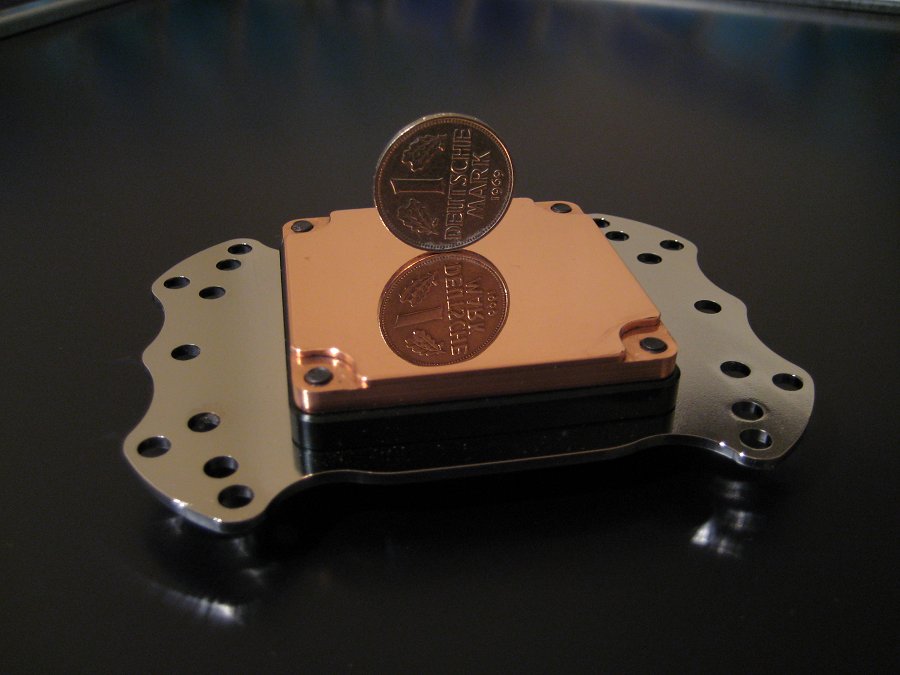

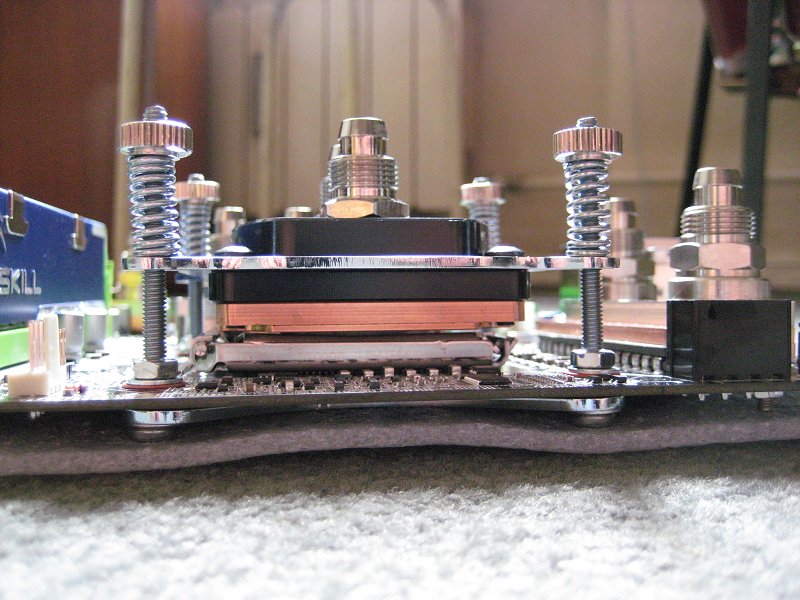

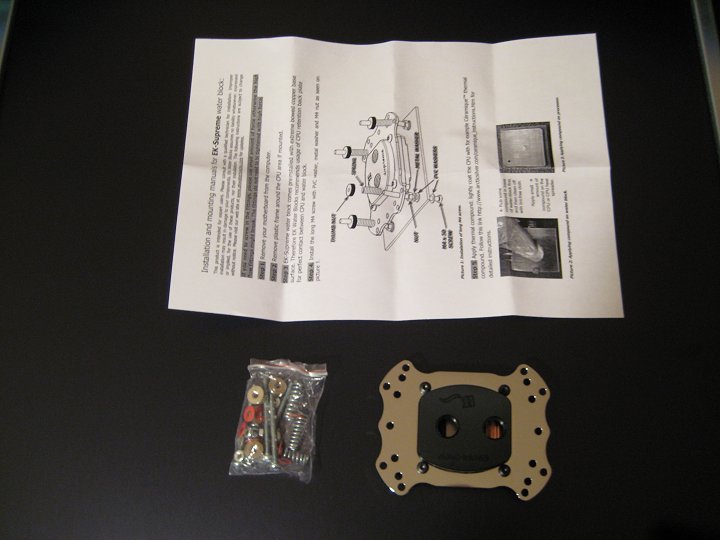

EK-Supreme

PC201B PC201B PC201B

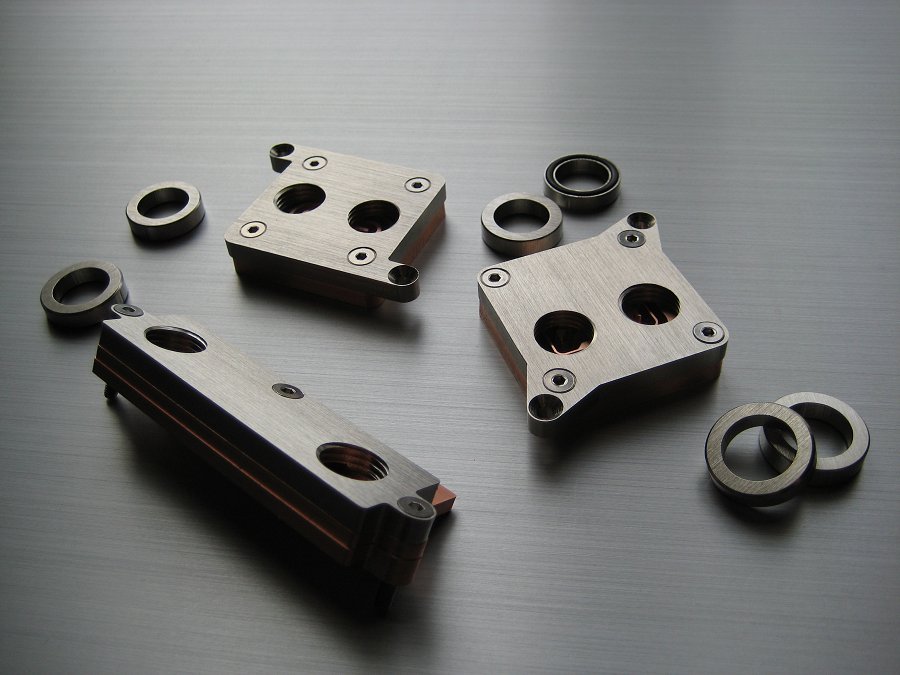

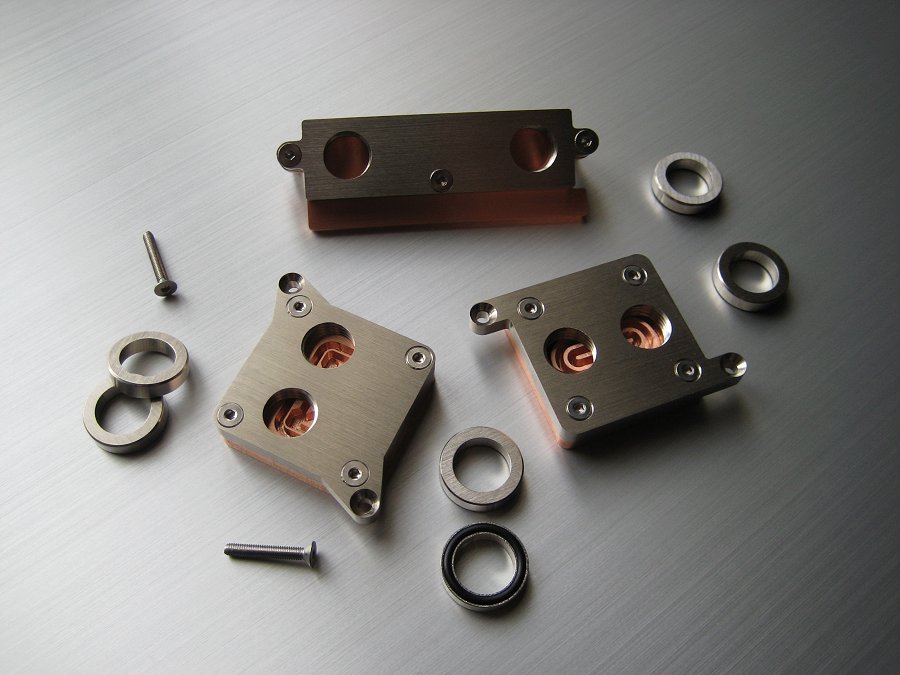

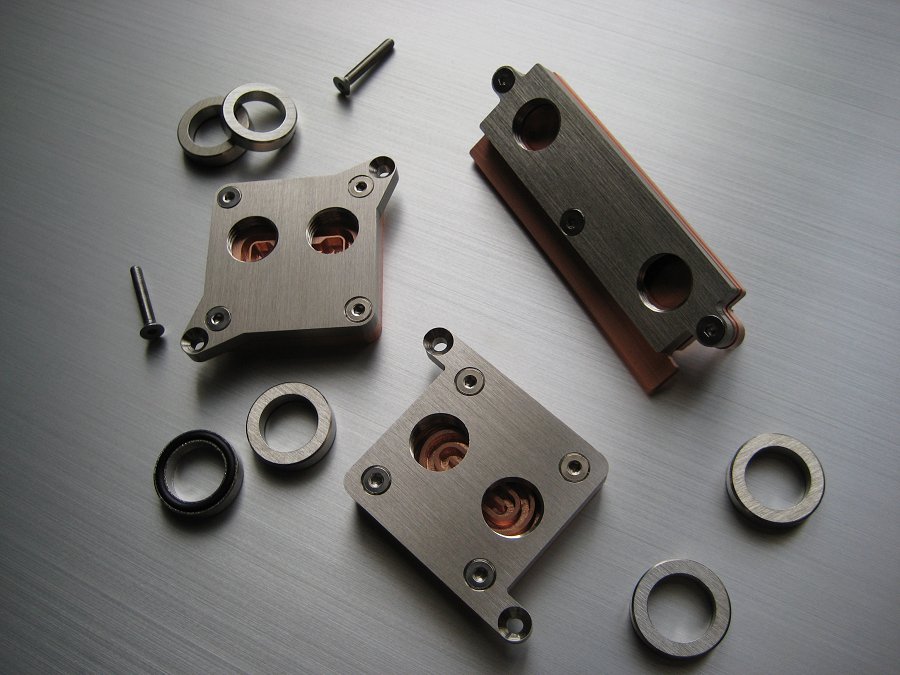

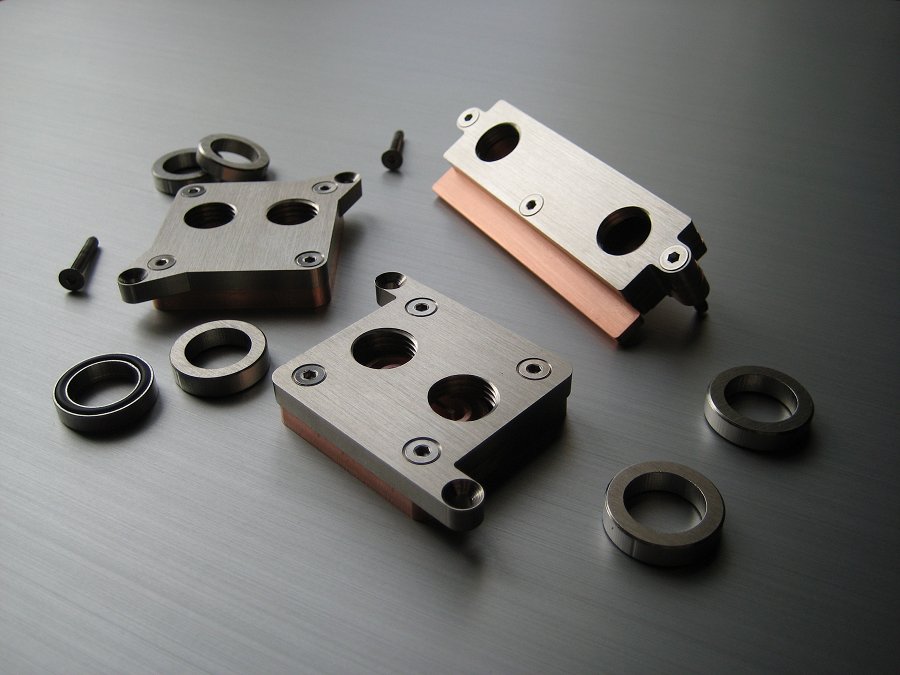

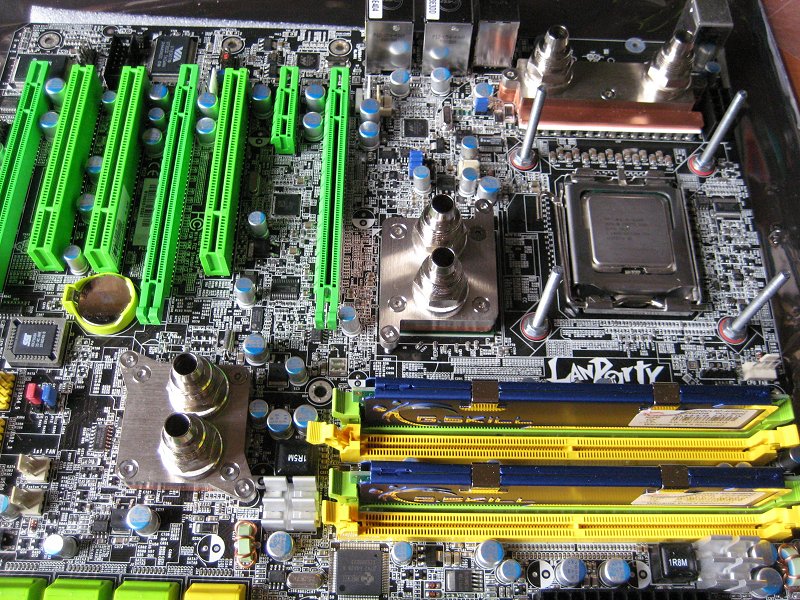

MIPS DFI LANparty P35/X38/X48 Series Freezer Set Nickel

PC201B PC201B PC201B PC201B


Workout impressions
10.02.2008
PC201B PC201B PC201B PC201B PC201B PC201B

17.02.2008
PC201B PC201B PC201B PC201B PC201B PC201B PC201B

01.03.2008
PC201B PC201B PC201B PC201B PC201B

06.04.2008
PC201B PC201B PC201B PC201B PC201B PC201B PC201B PC201B PC201B


13.04.2008

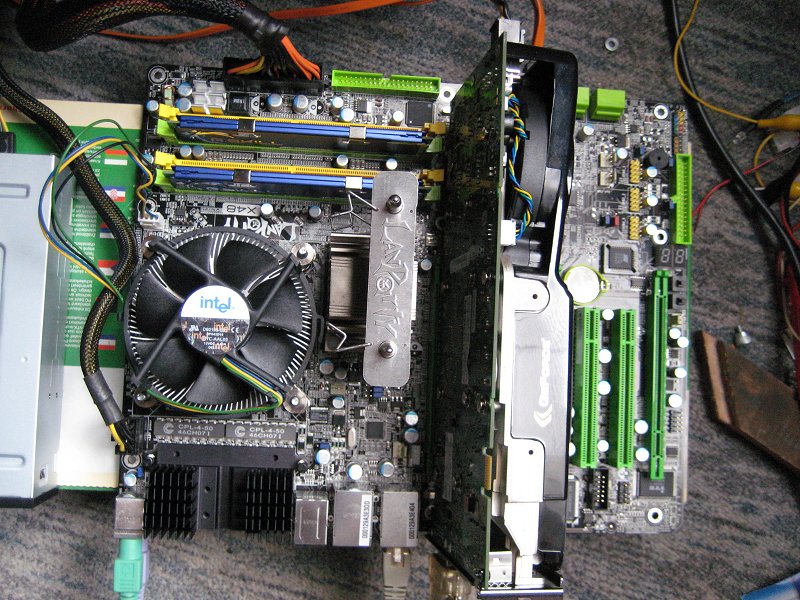

Hardware and cooler pretest

PC201B PC201B

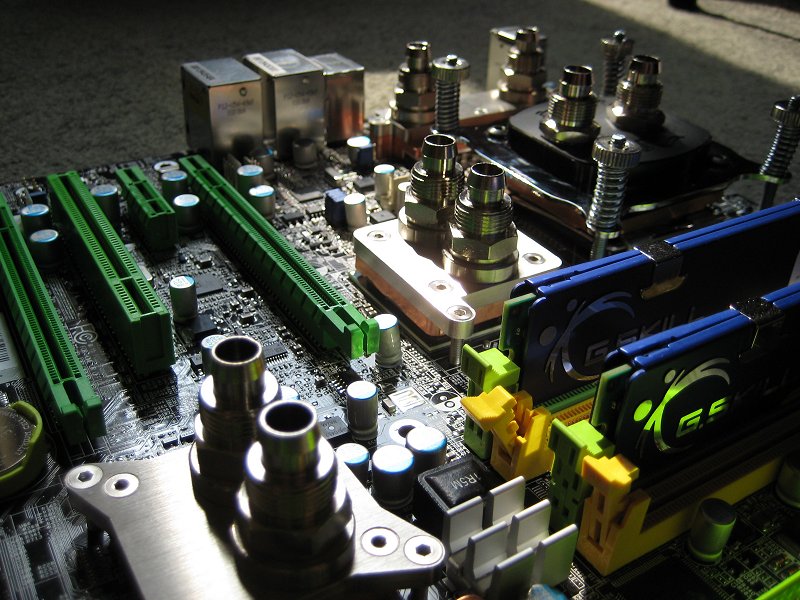

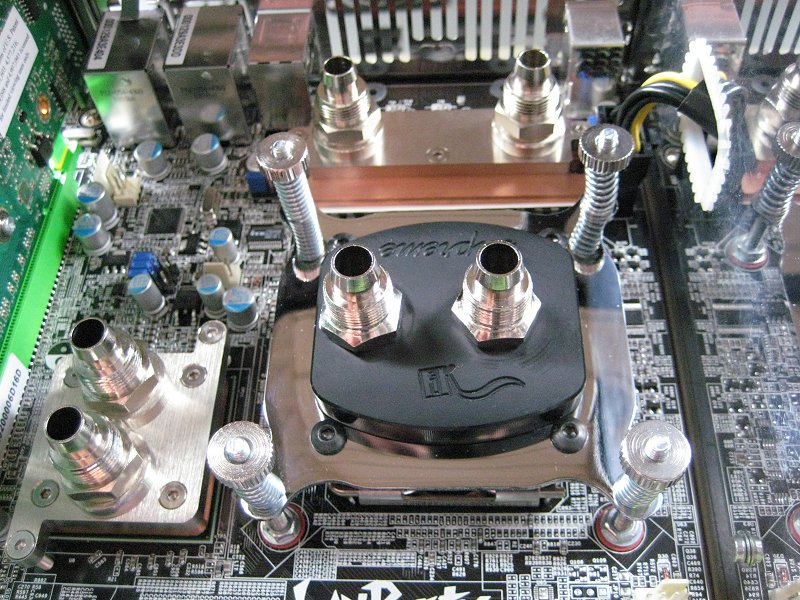

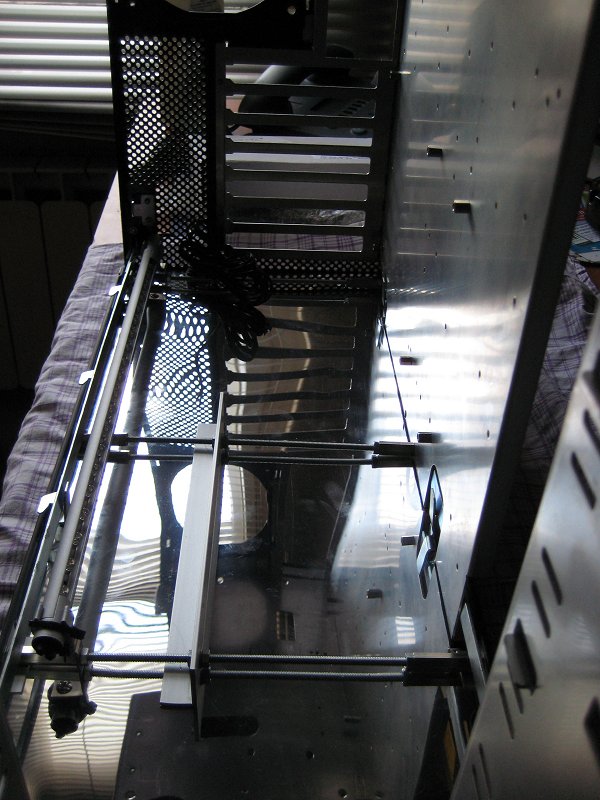

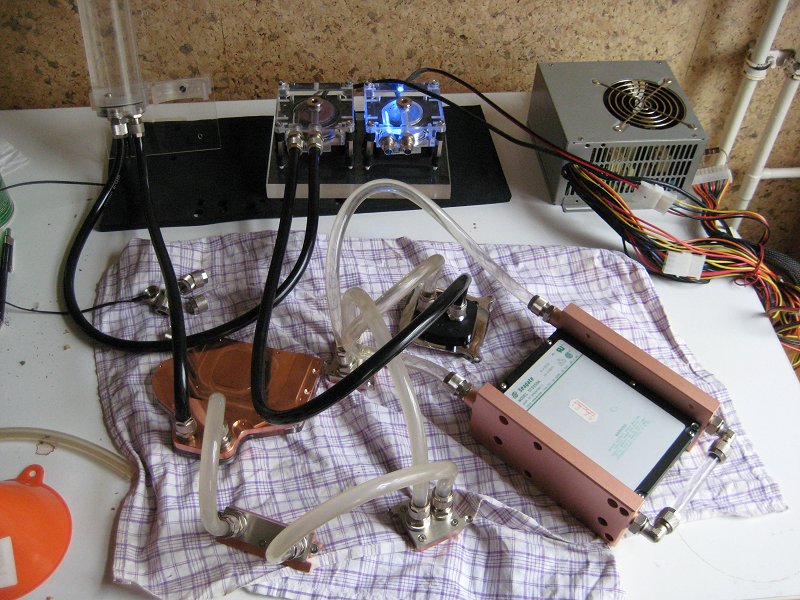

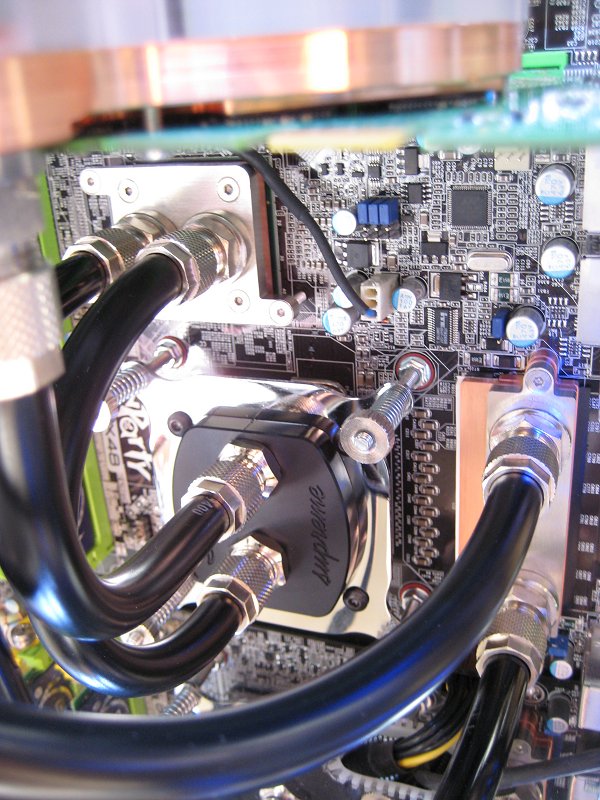

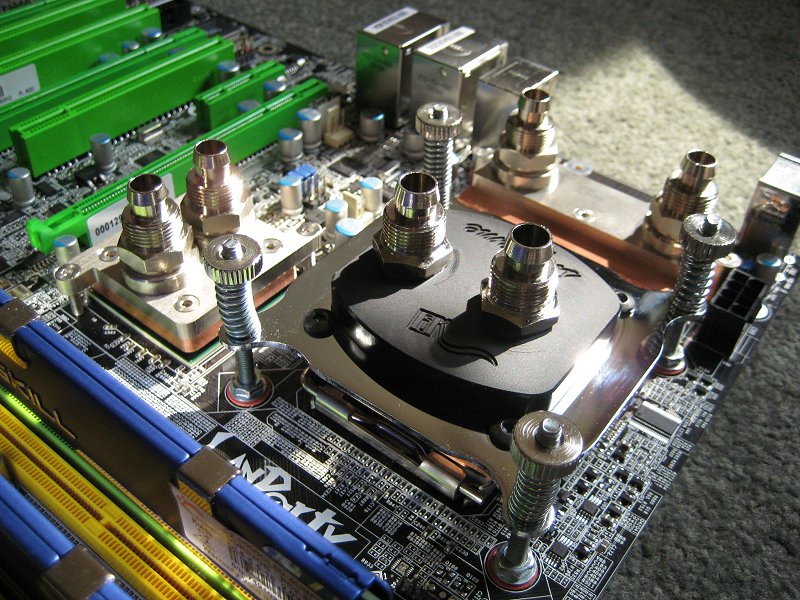

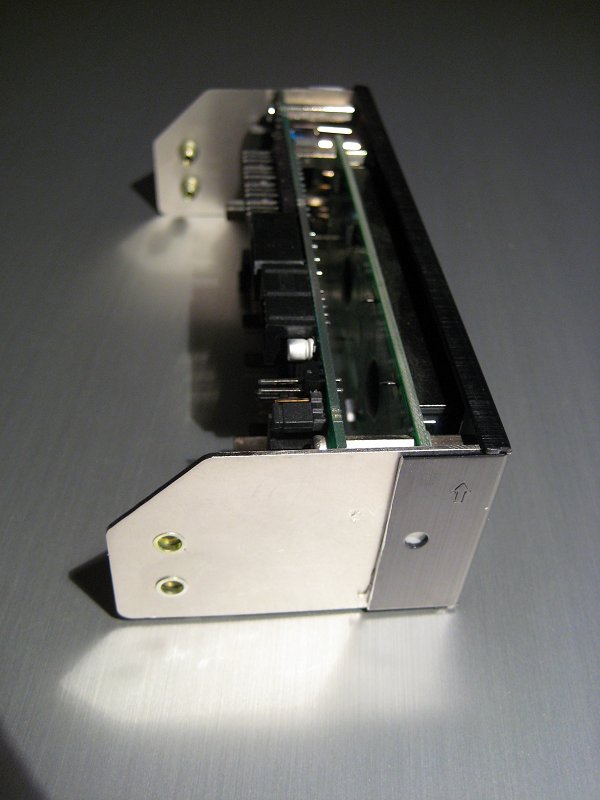

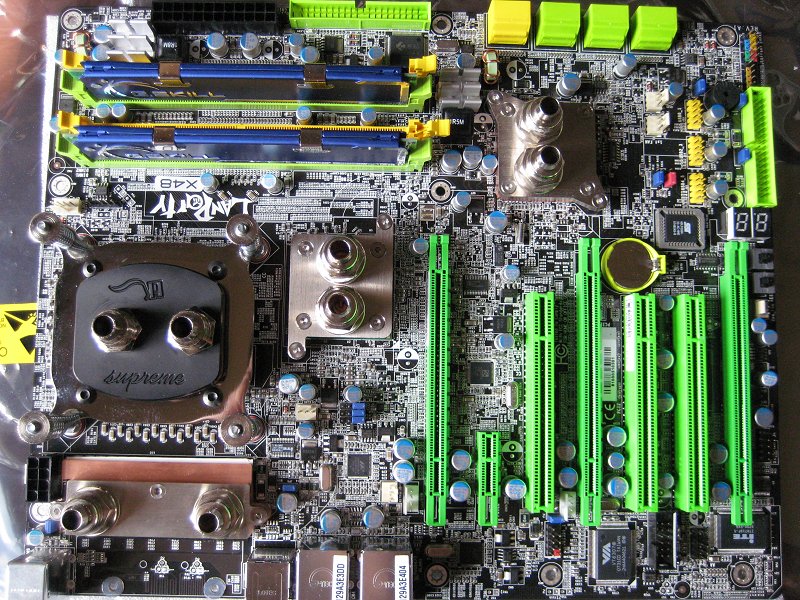

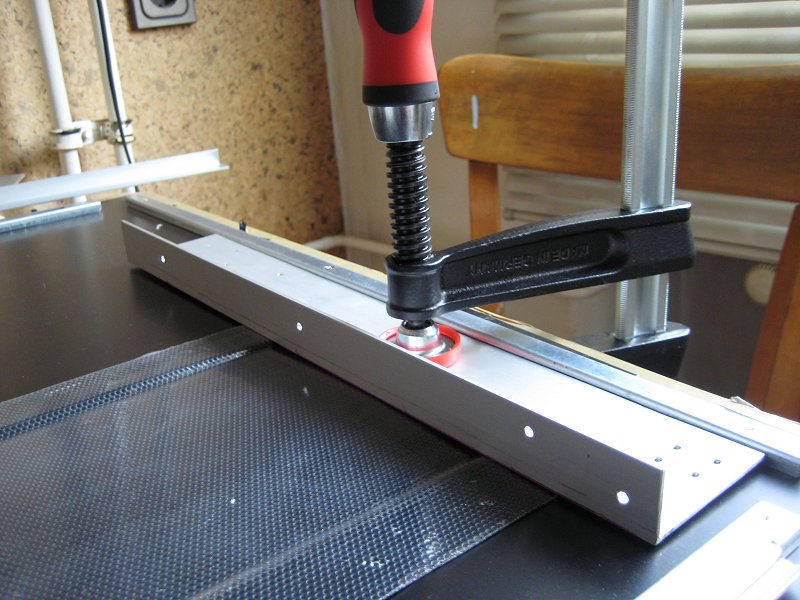

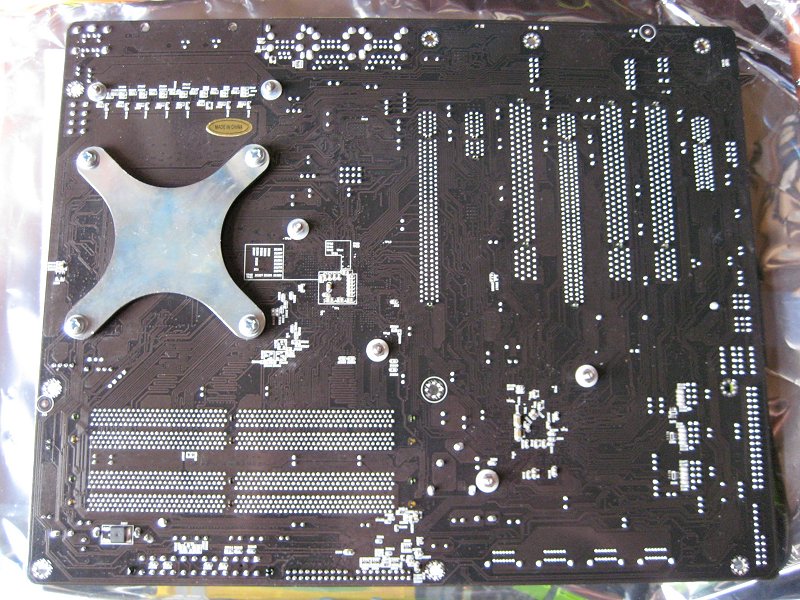

Preparation for water cooling

PC201B PC201B PC201B PC201B PC201B PC201B PC201B

PC201B PC201B PC201B PC201B PC201B PC201B PC201B

PC201B PC201B PC201B PC201B PC201B PC201B

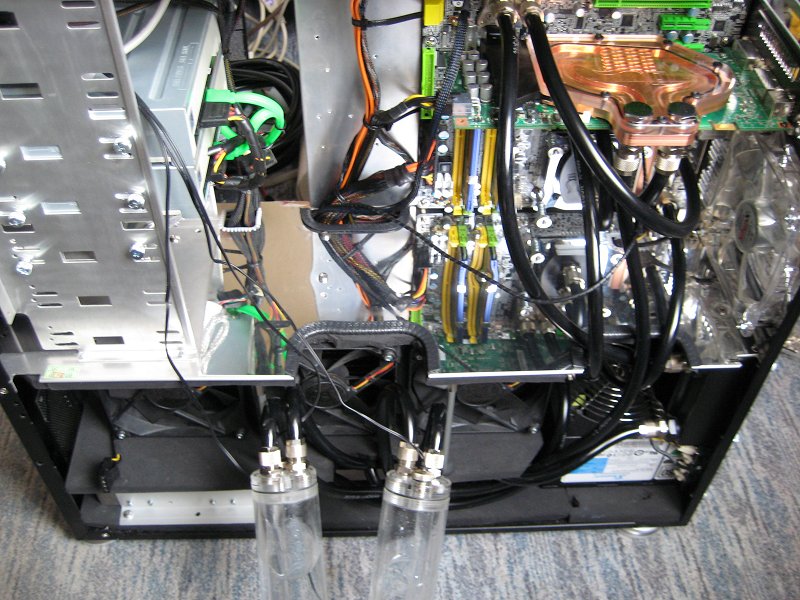

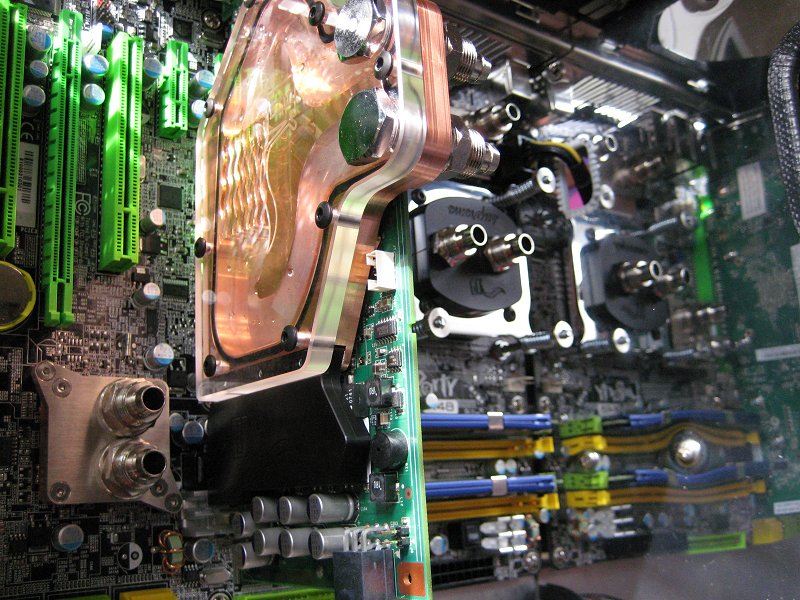

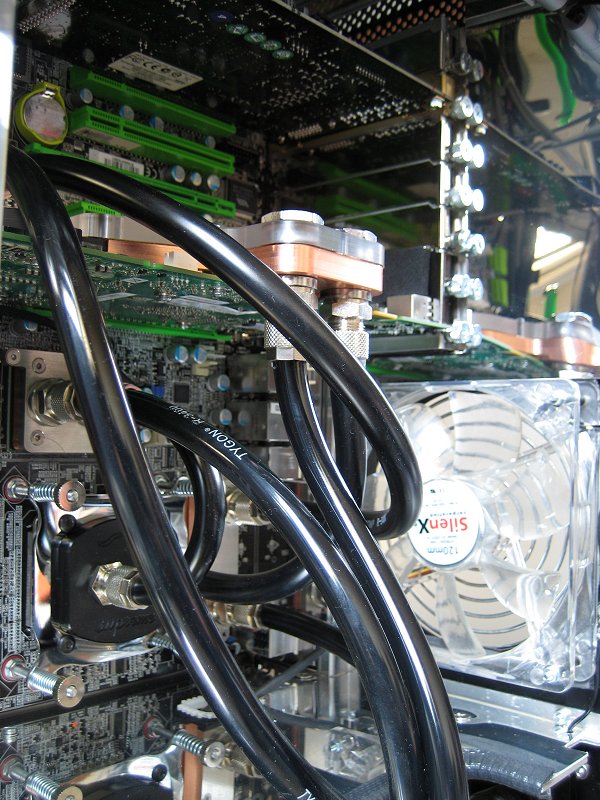

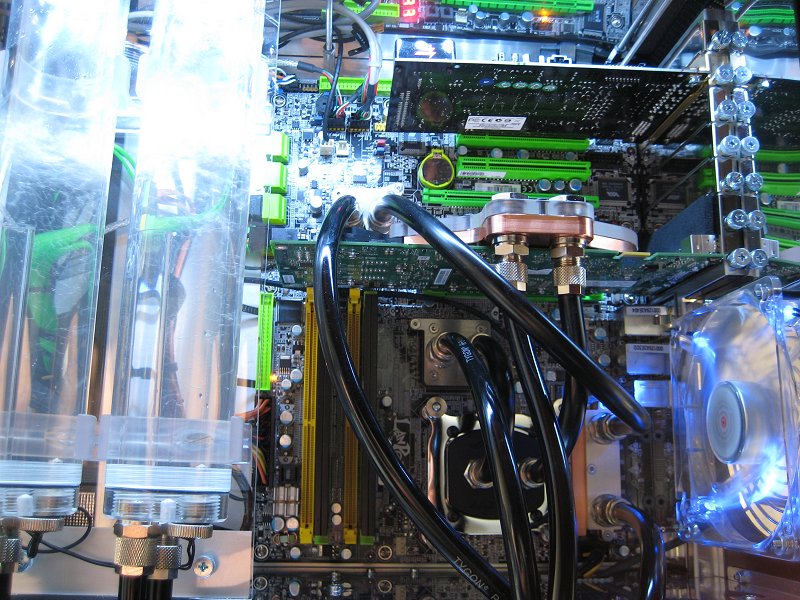

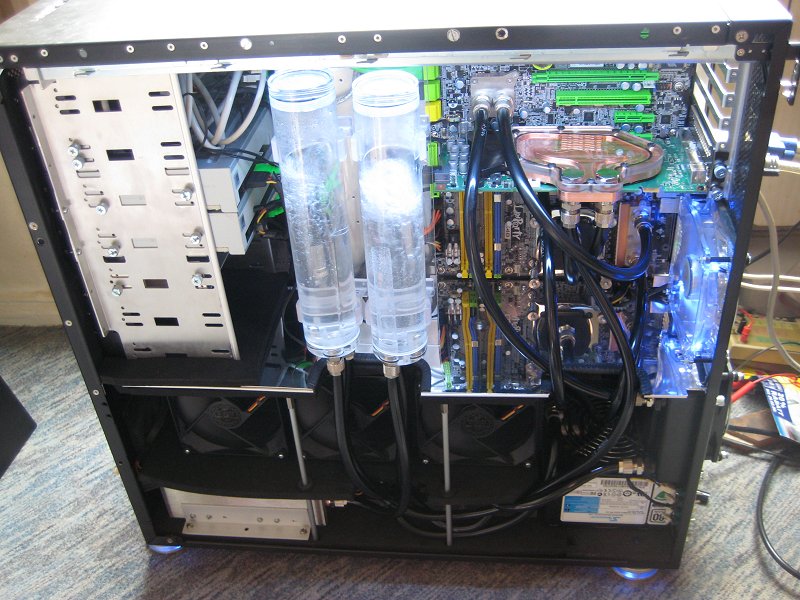

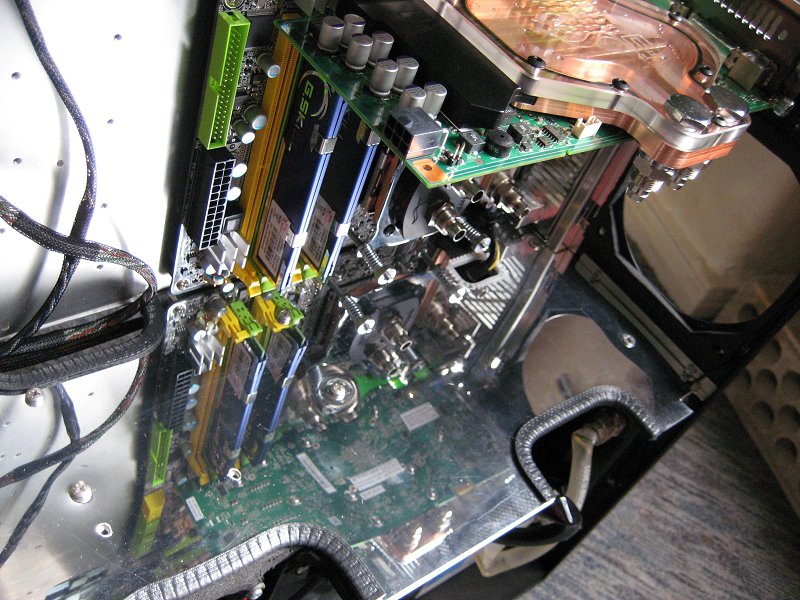

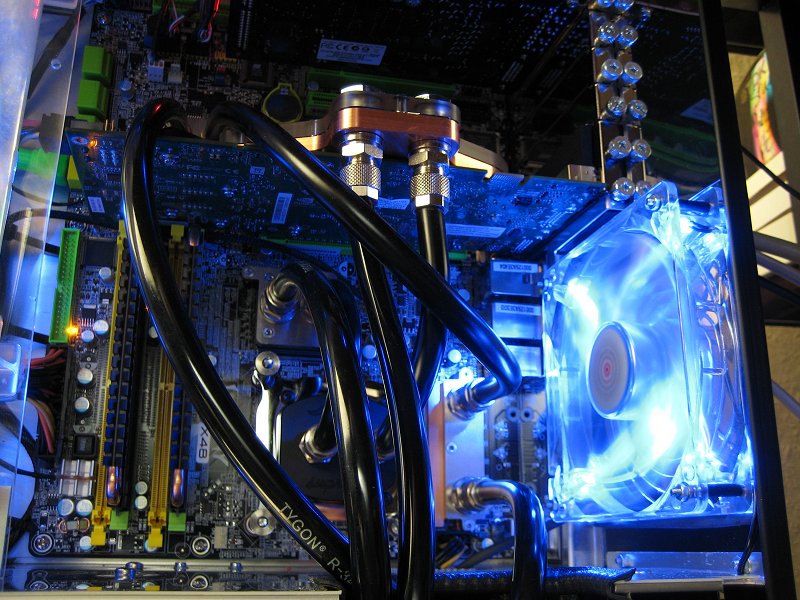

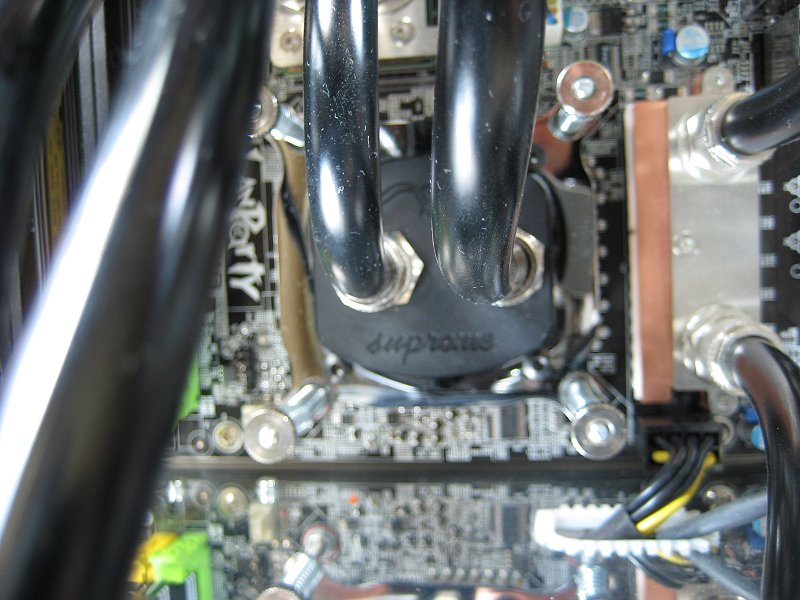

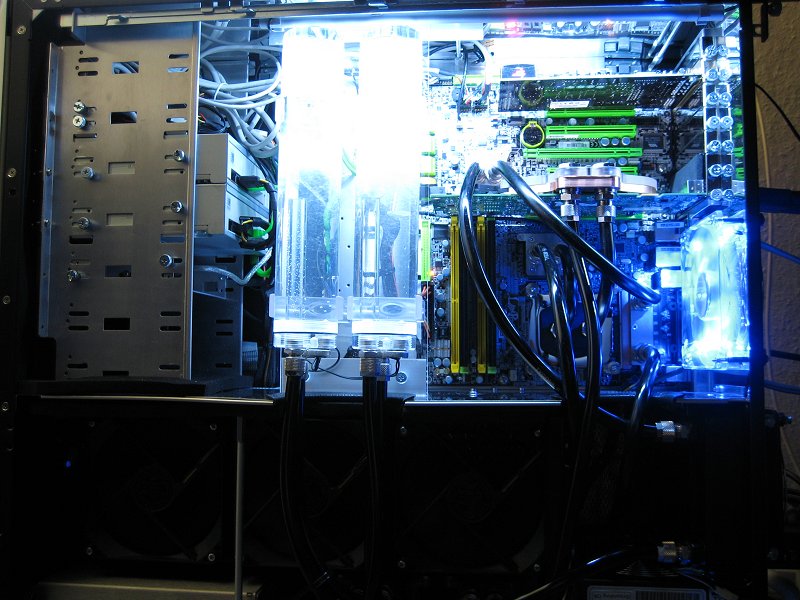

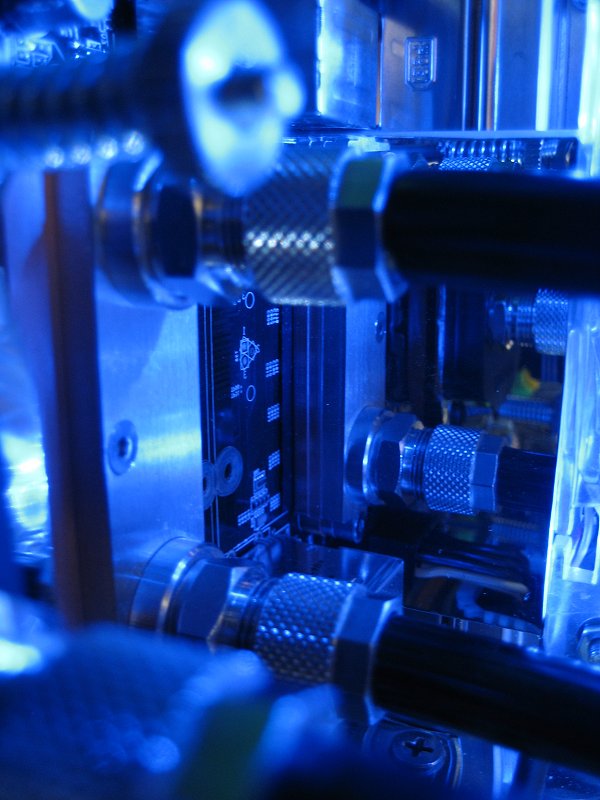

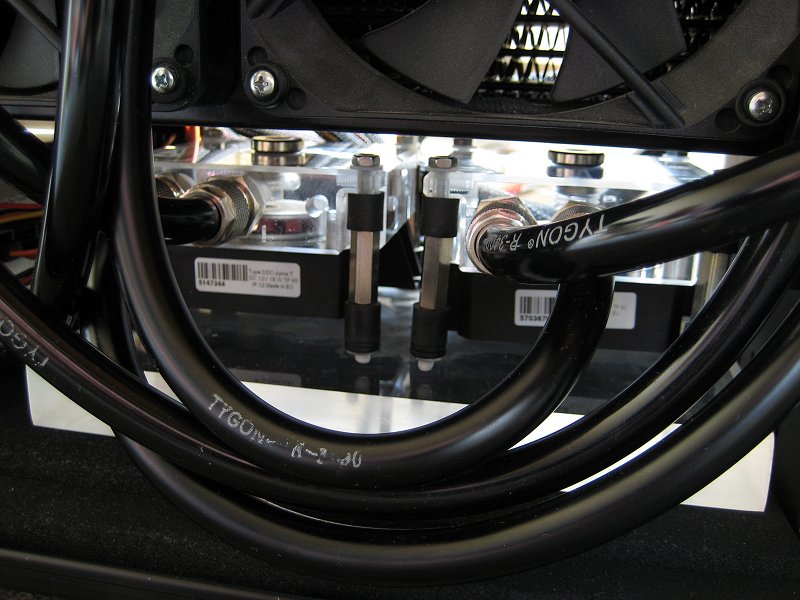

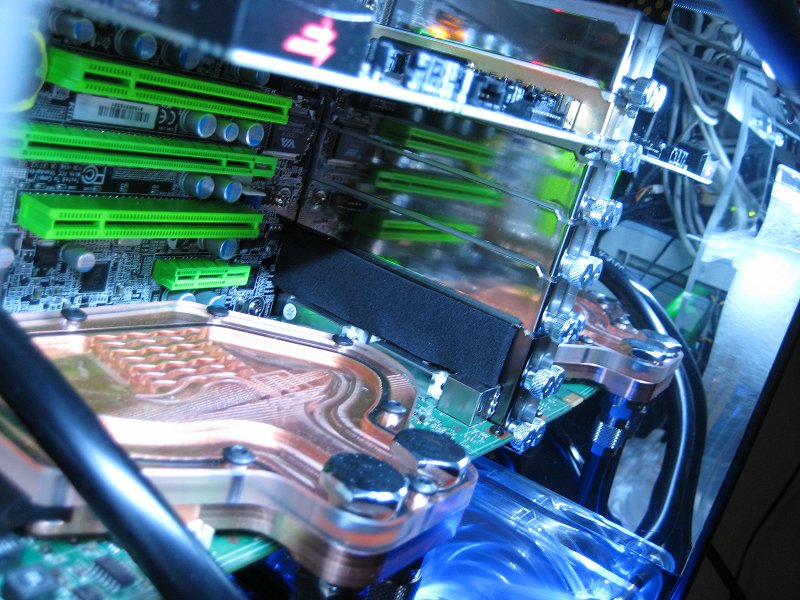

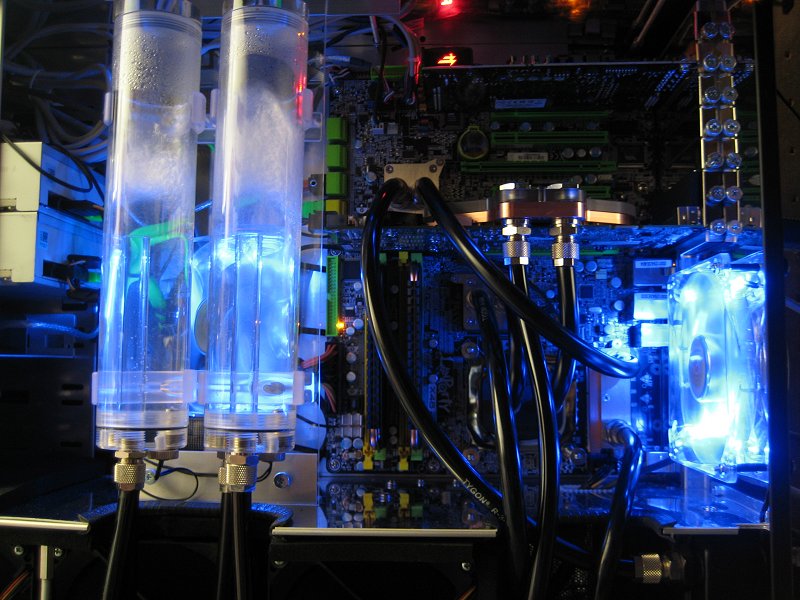

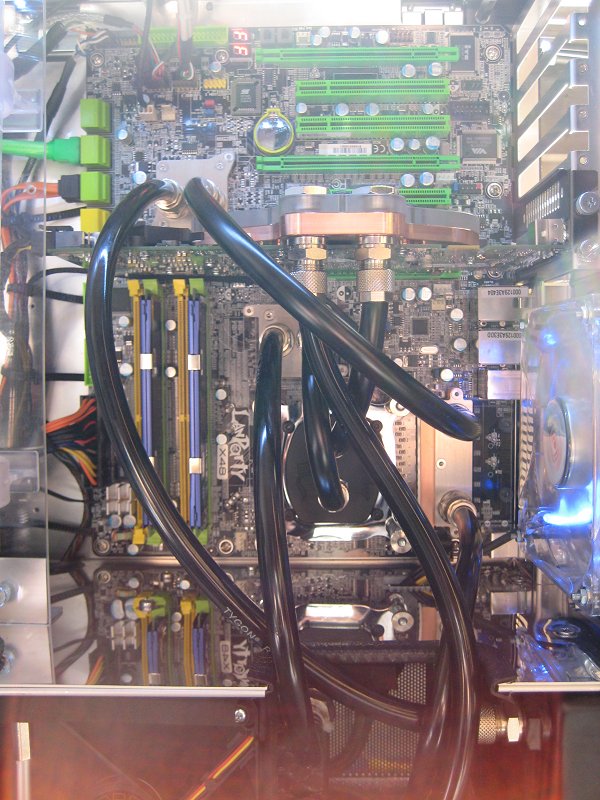

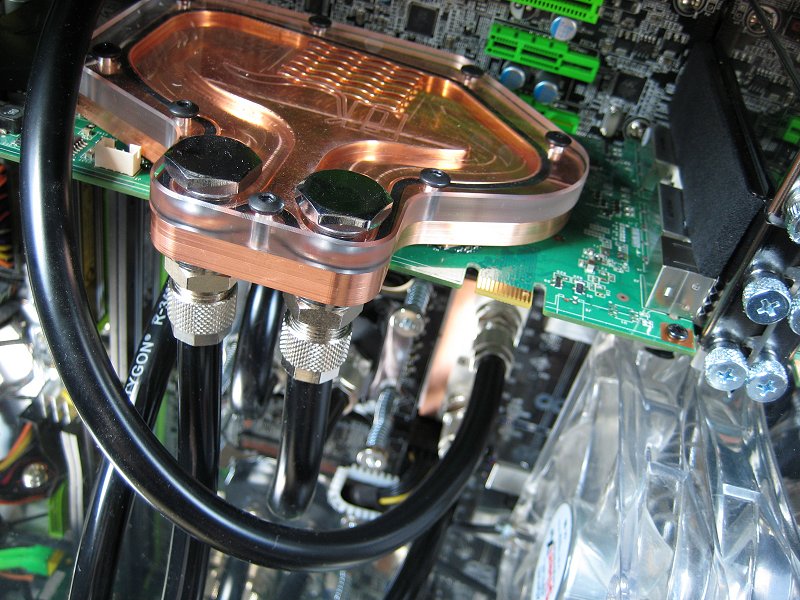

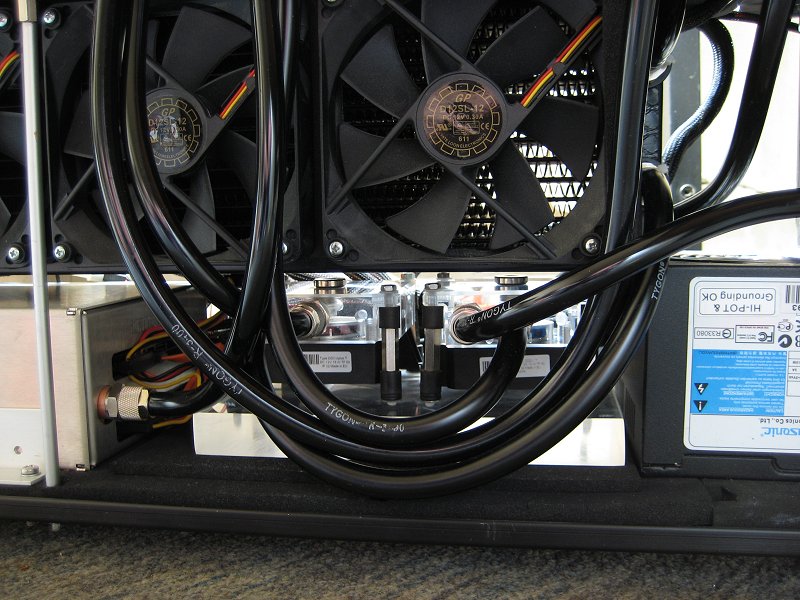

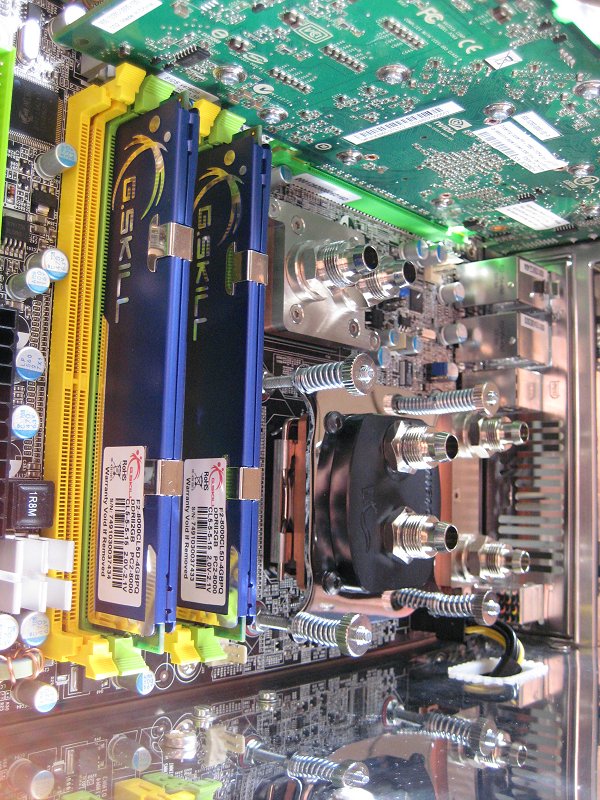

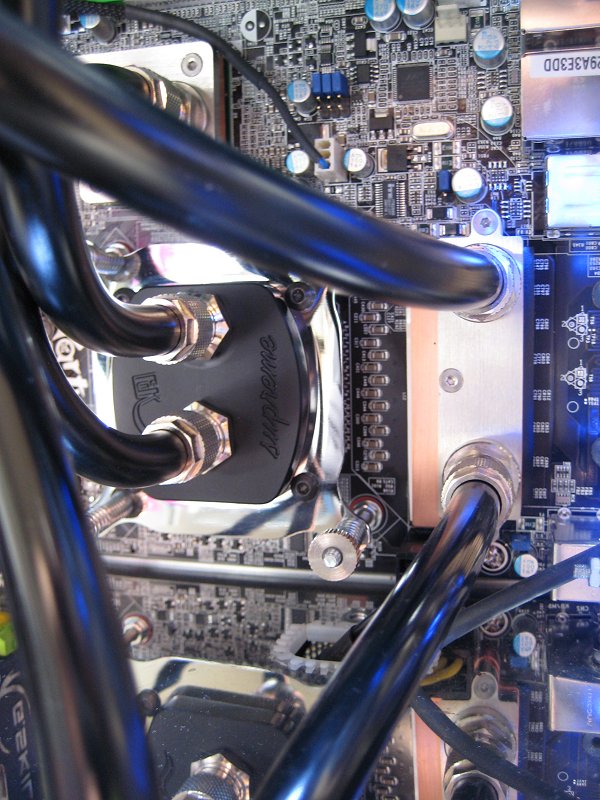

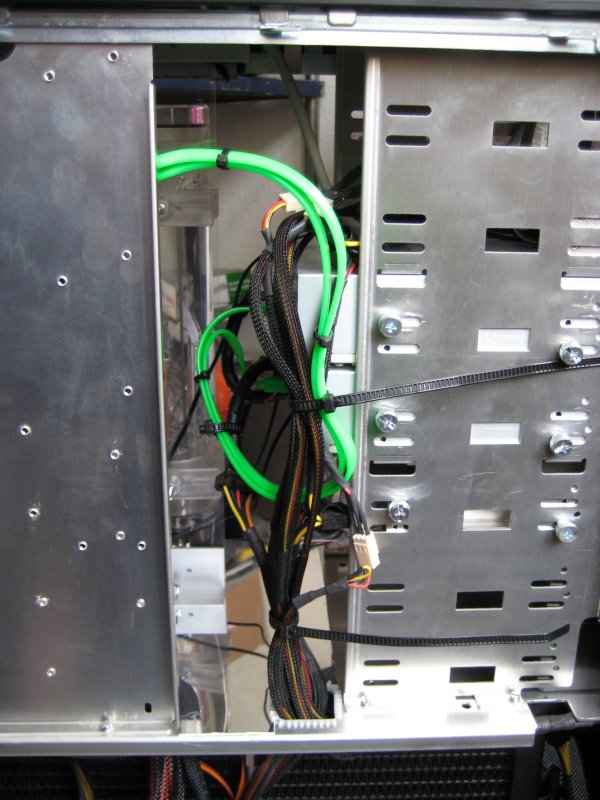

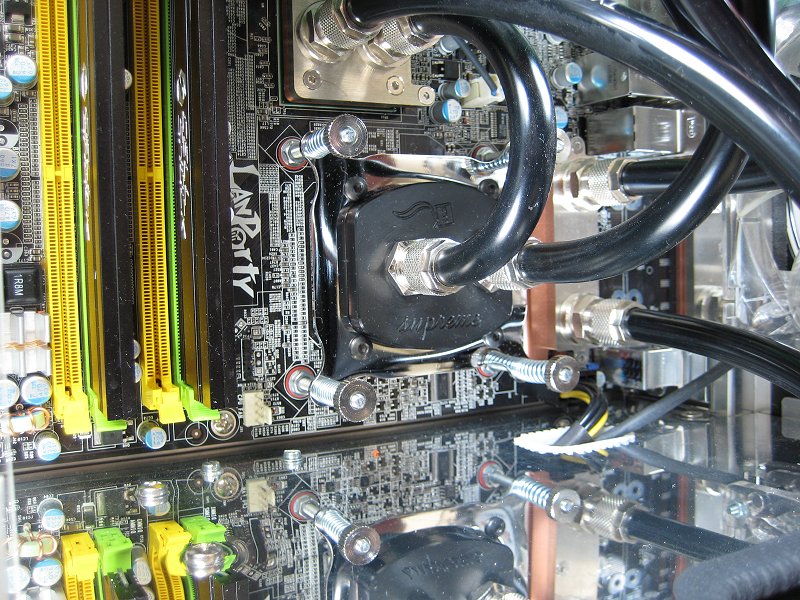

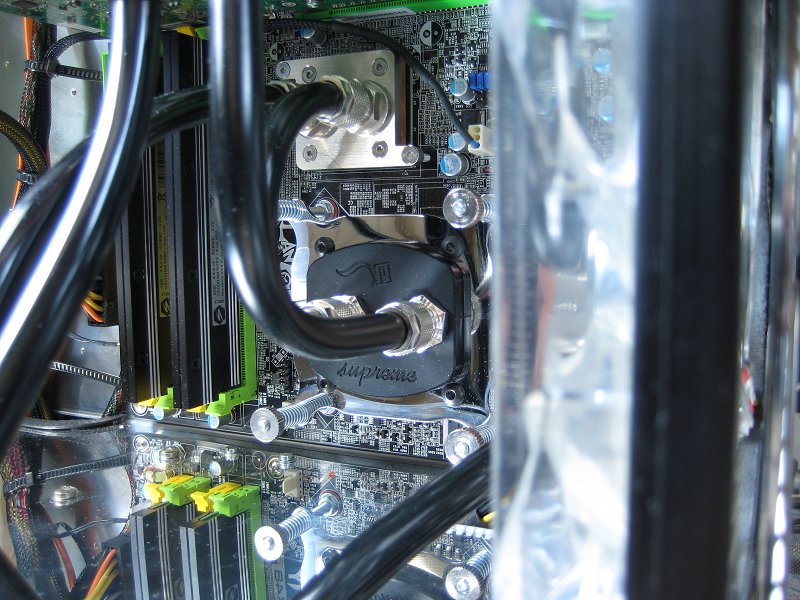

Bring it together

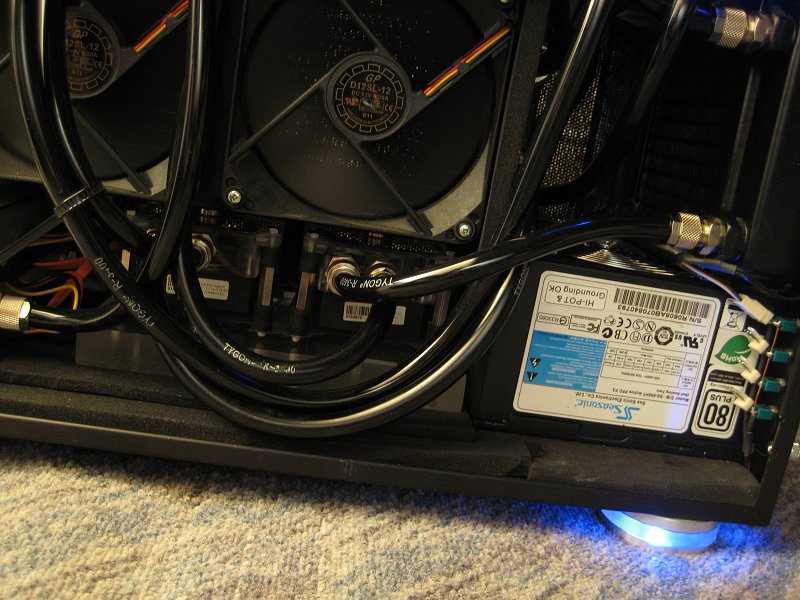

PC201B PC201B PC201B PC201B PC201B PC201B PC201B PC201B PC201B

PC201B PC201B PC201B PC201B PC201B PC201B

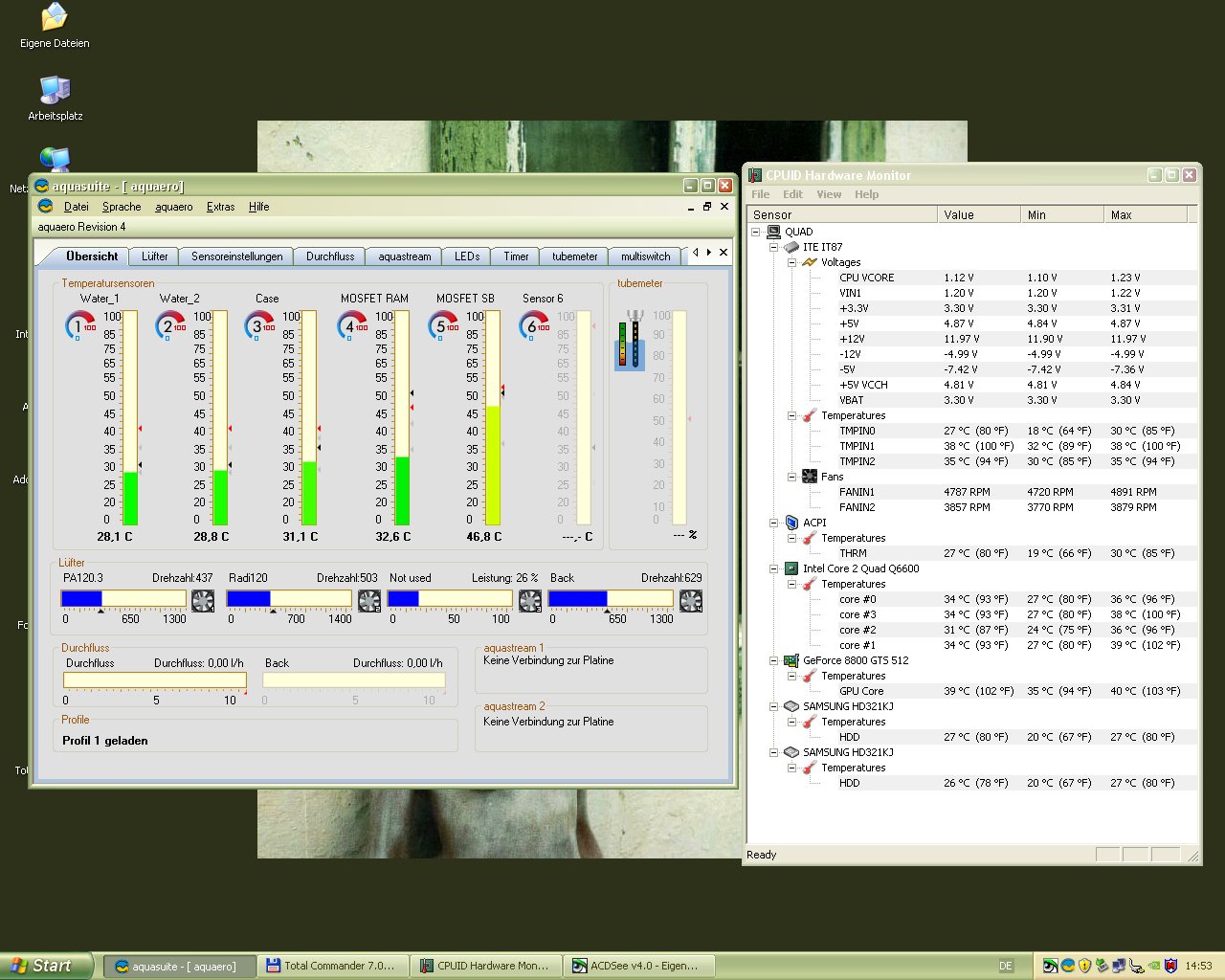

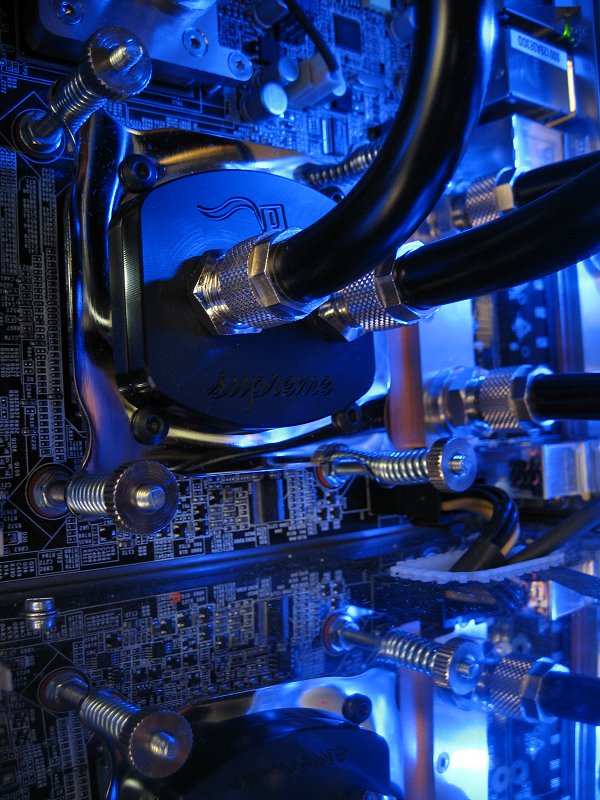

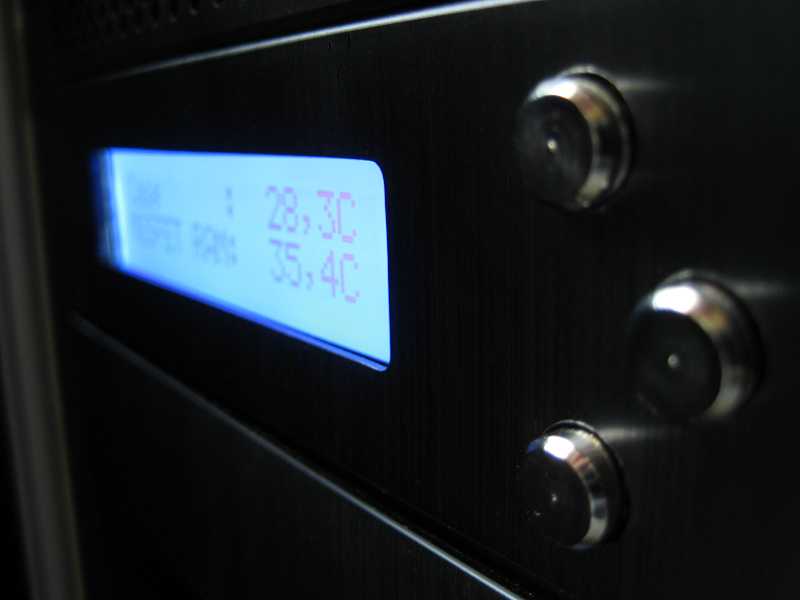

First run

PC201B


22.04.2008

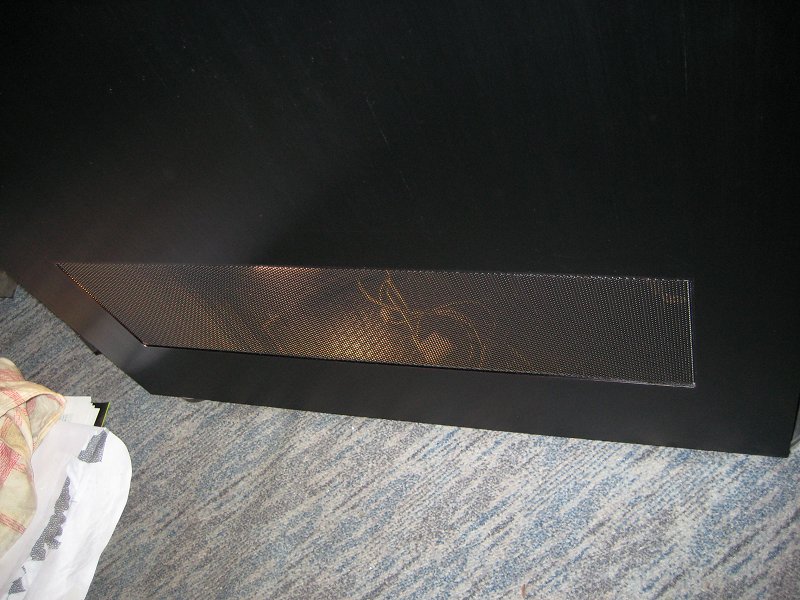

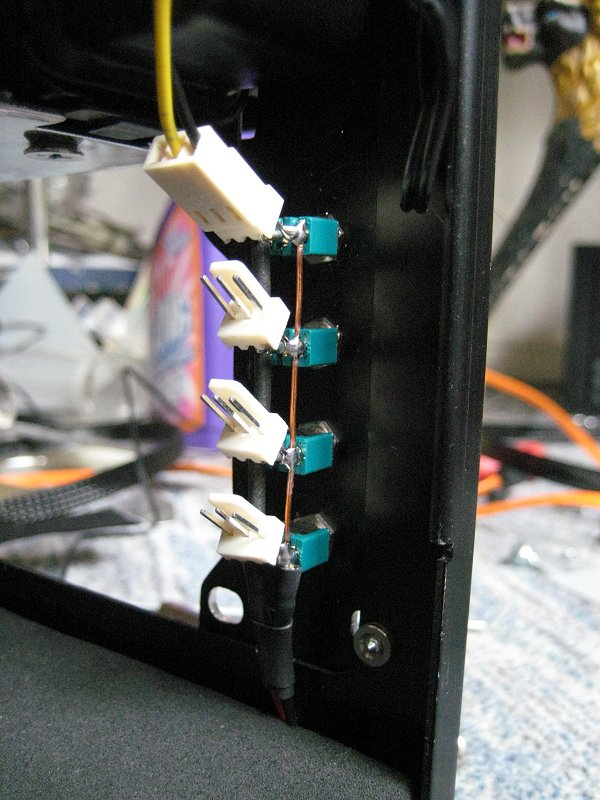

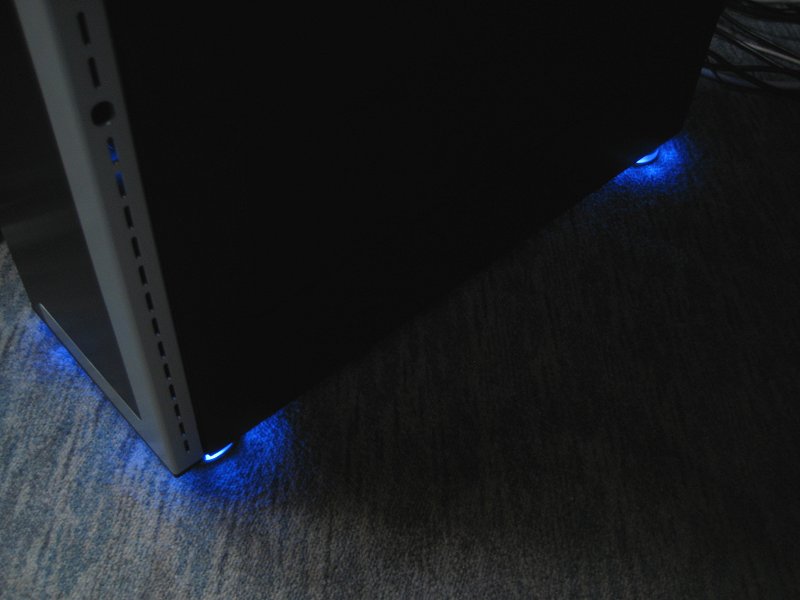

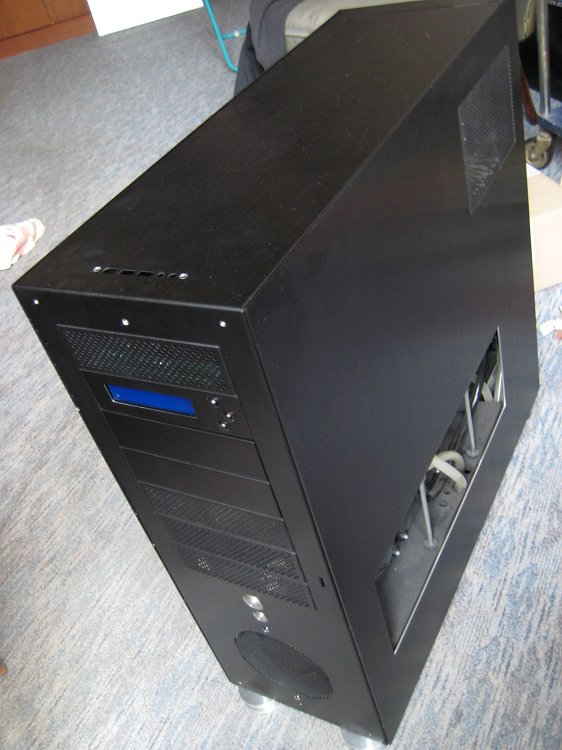

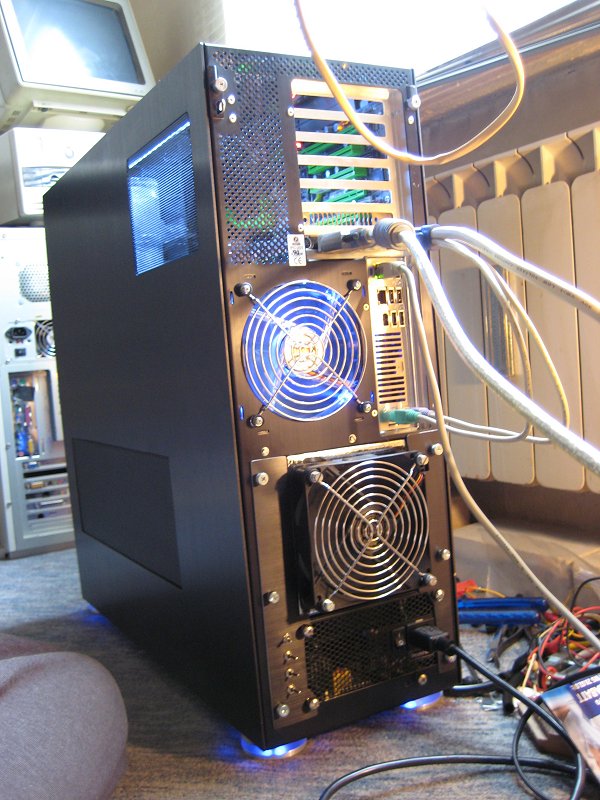

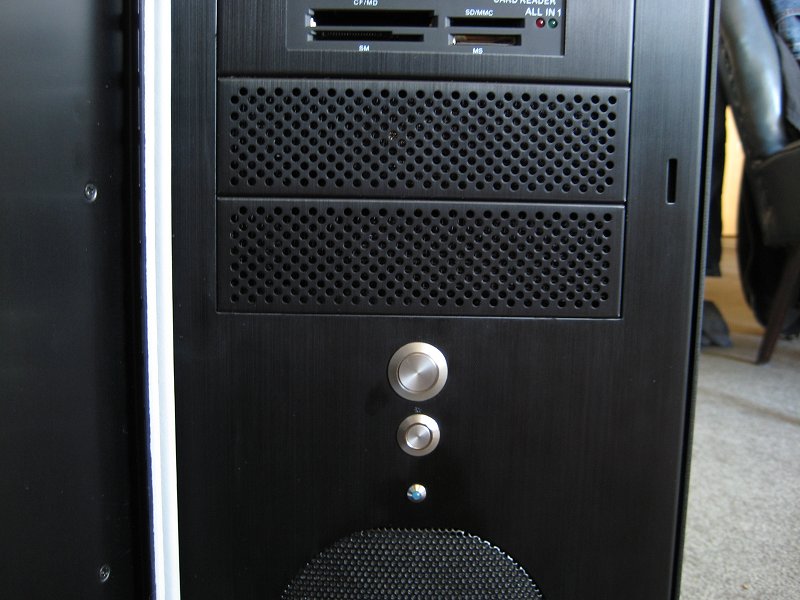

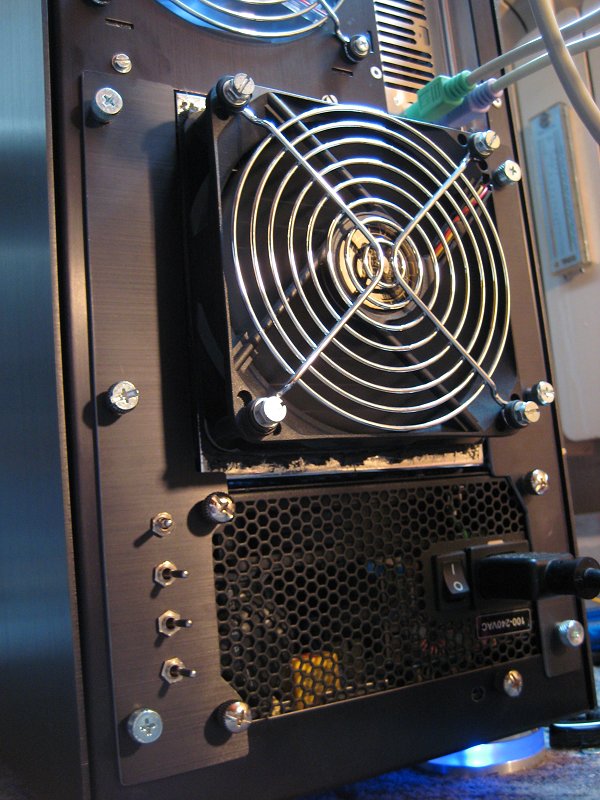

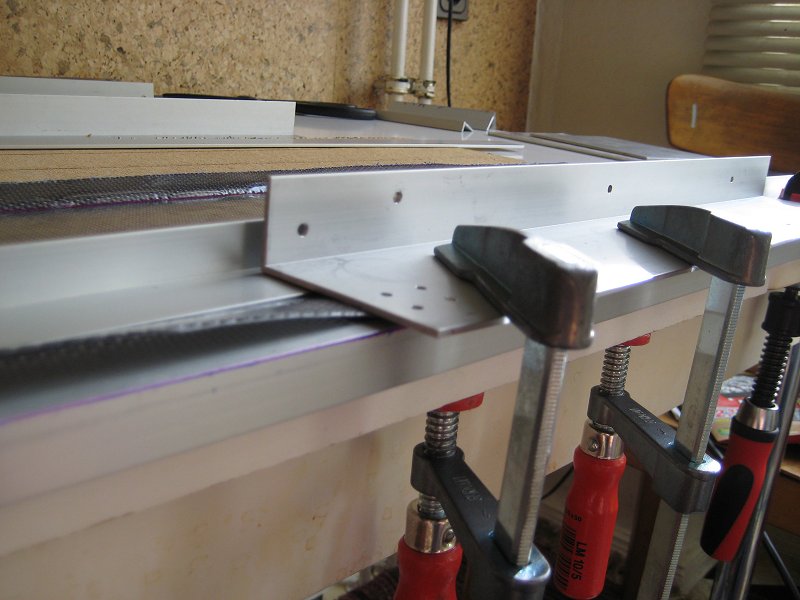

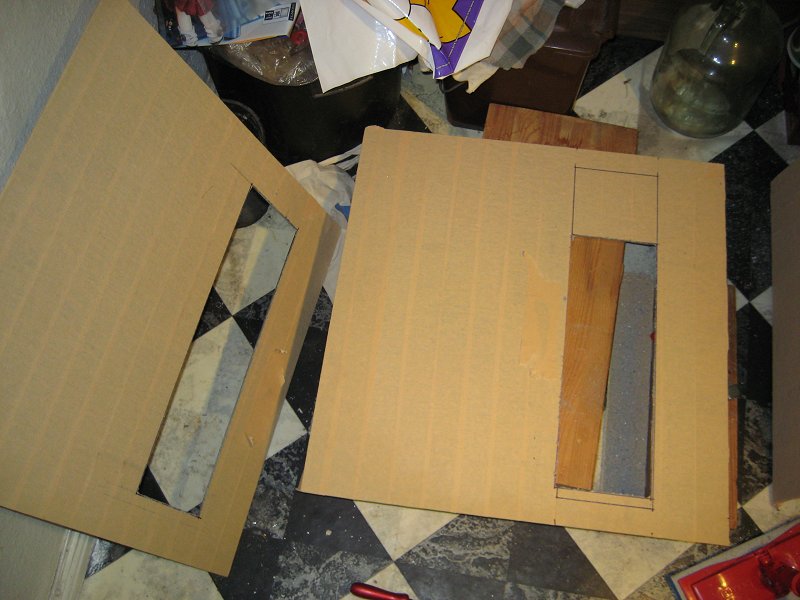

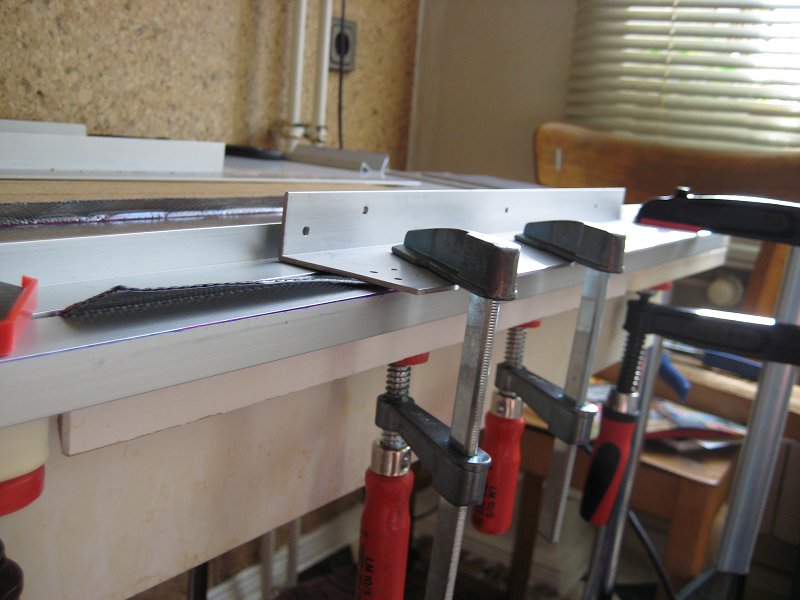

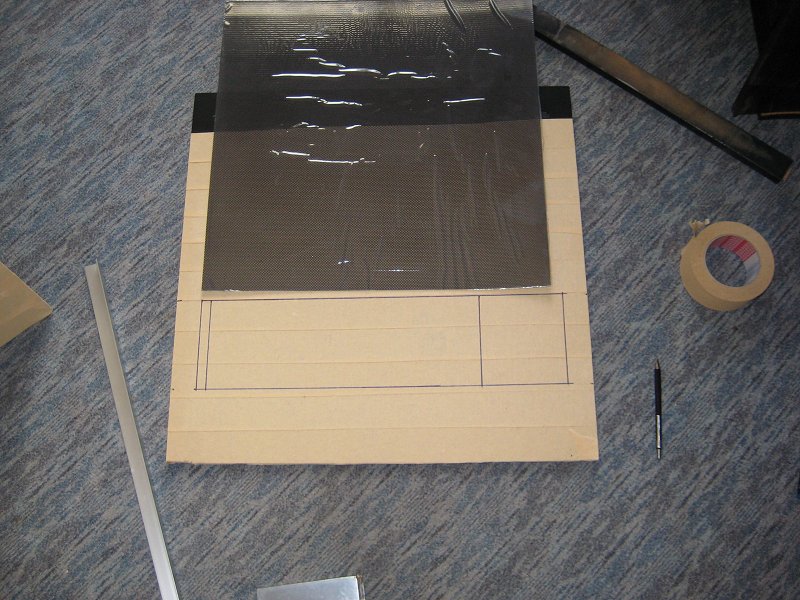

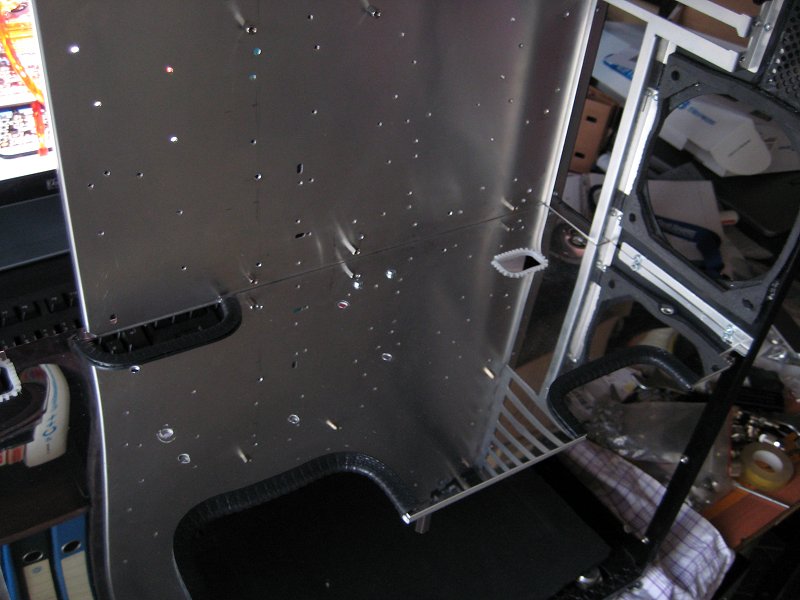

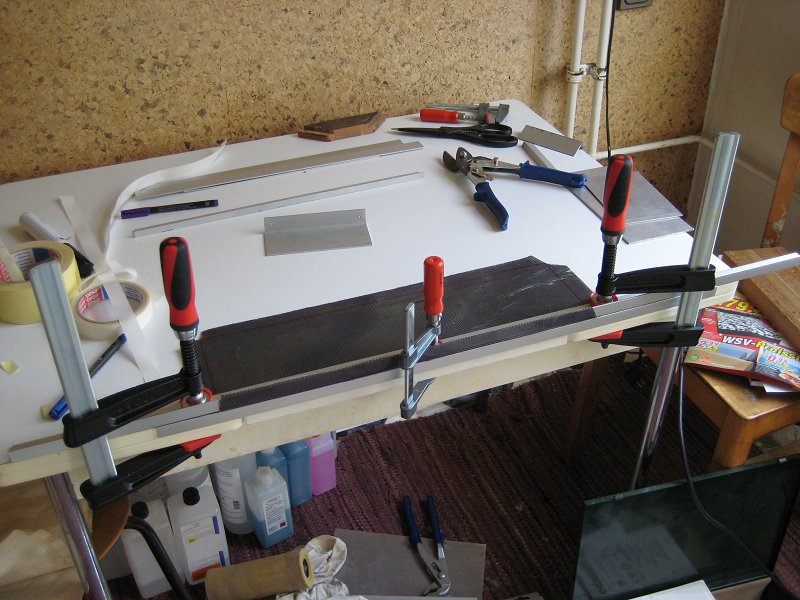

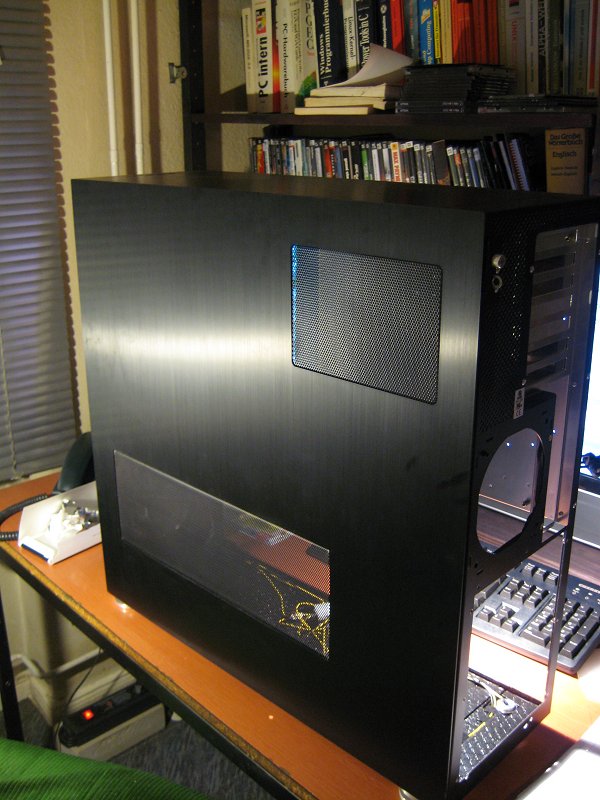

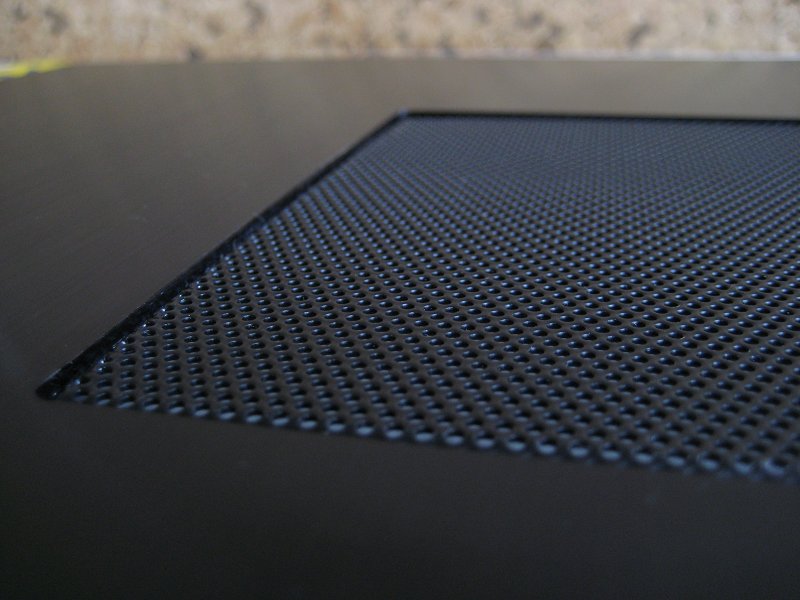

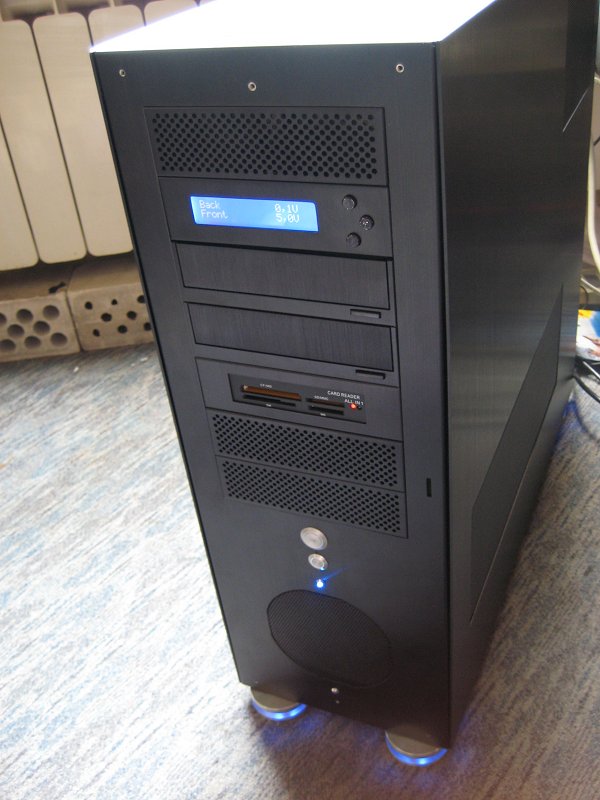

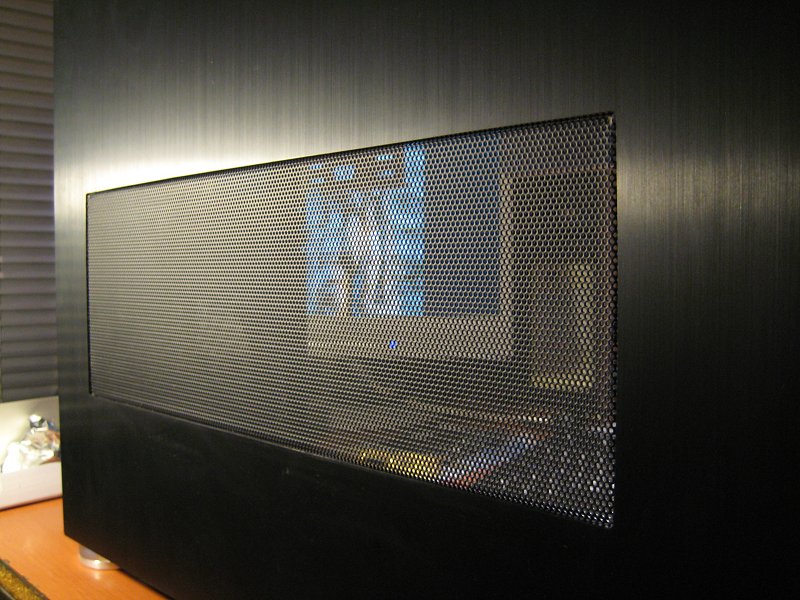

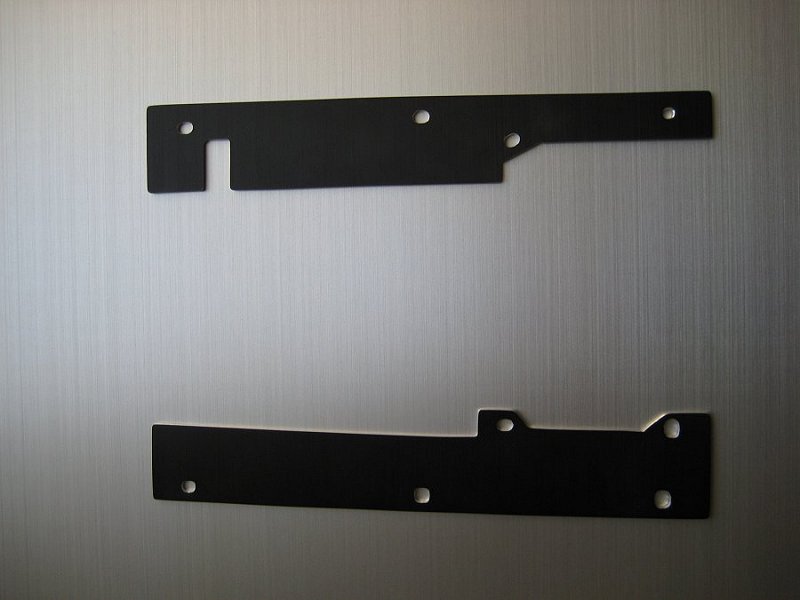

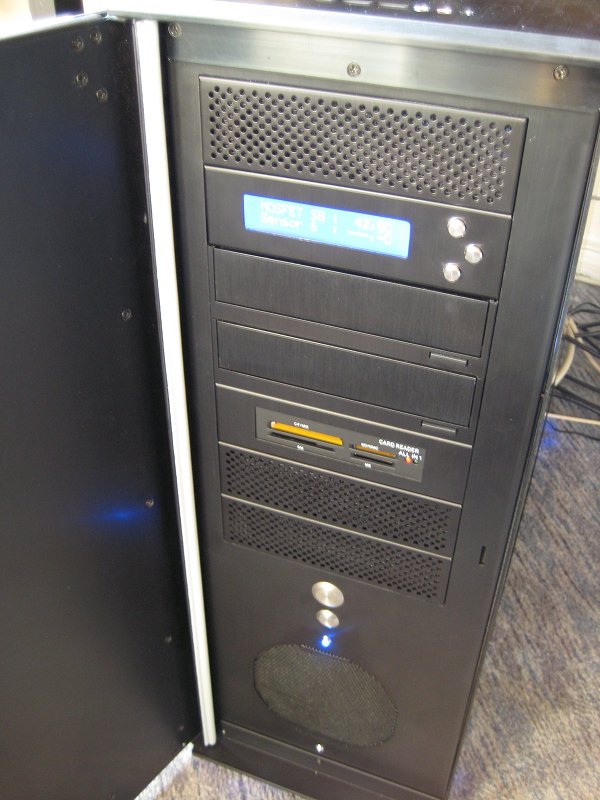

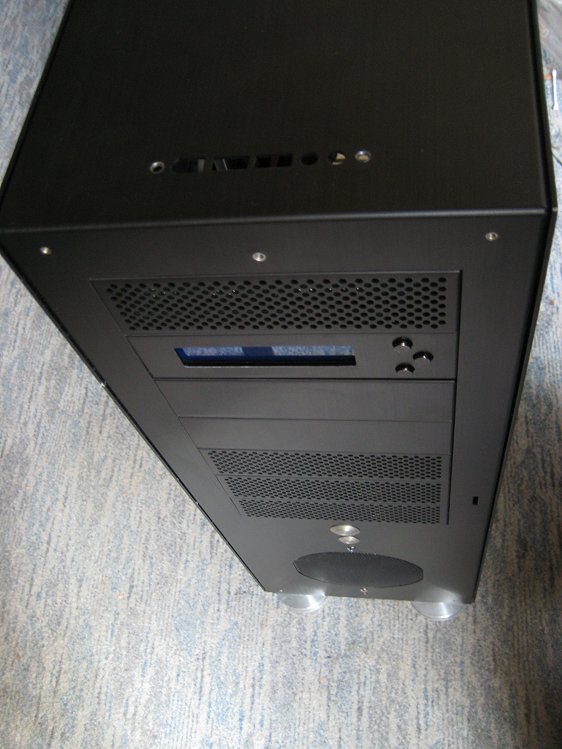

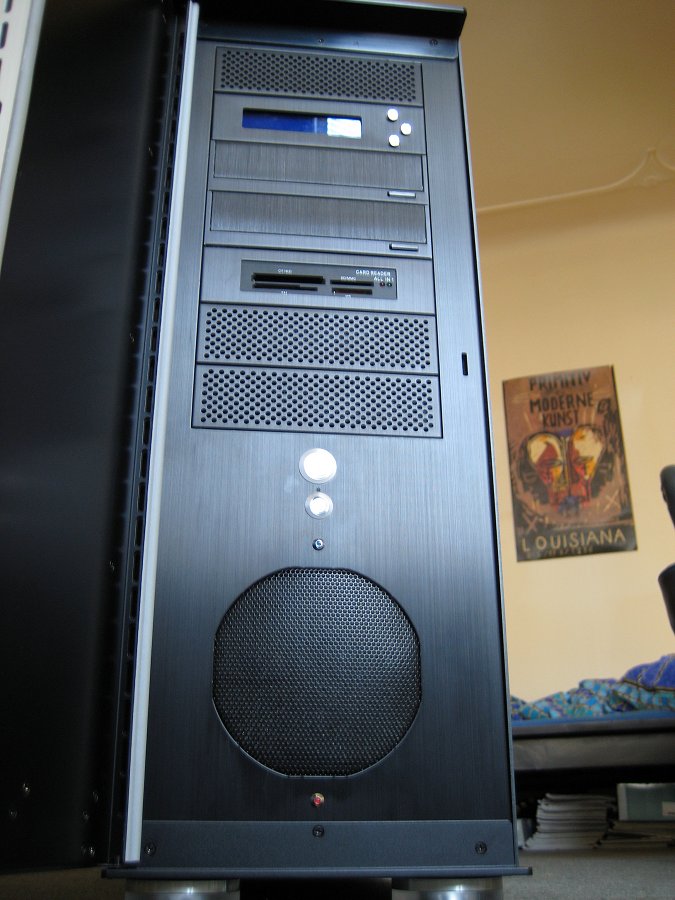

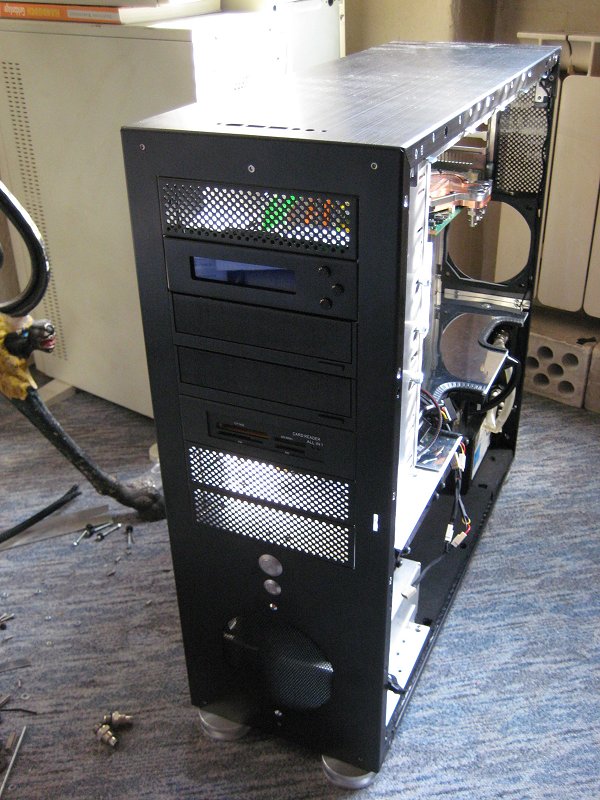

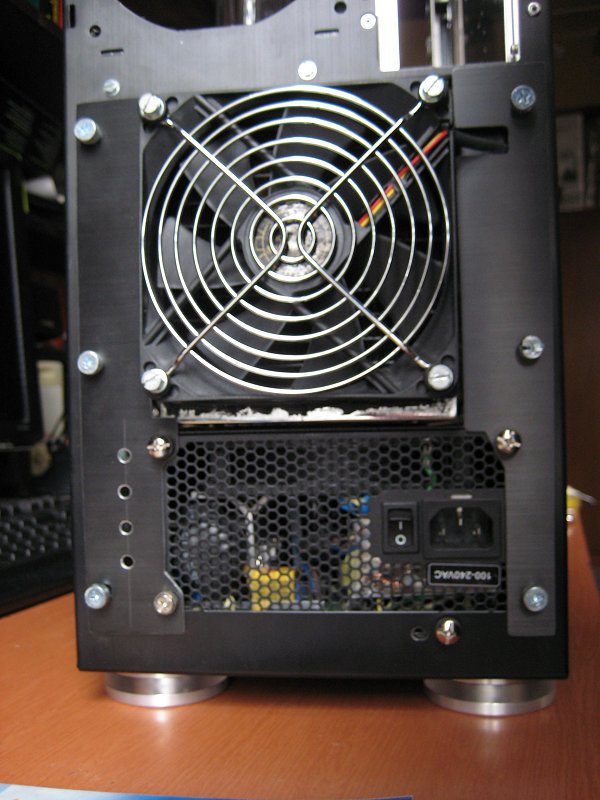

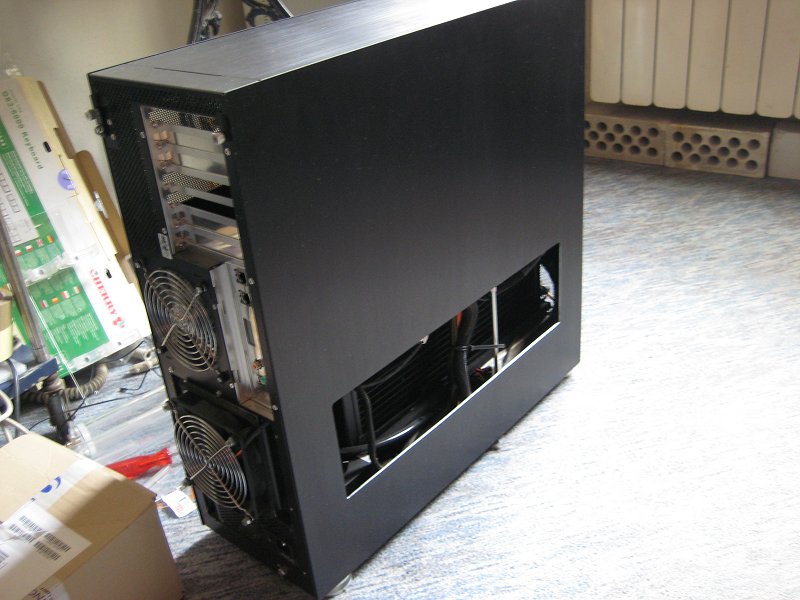

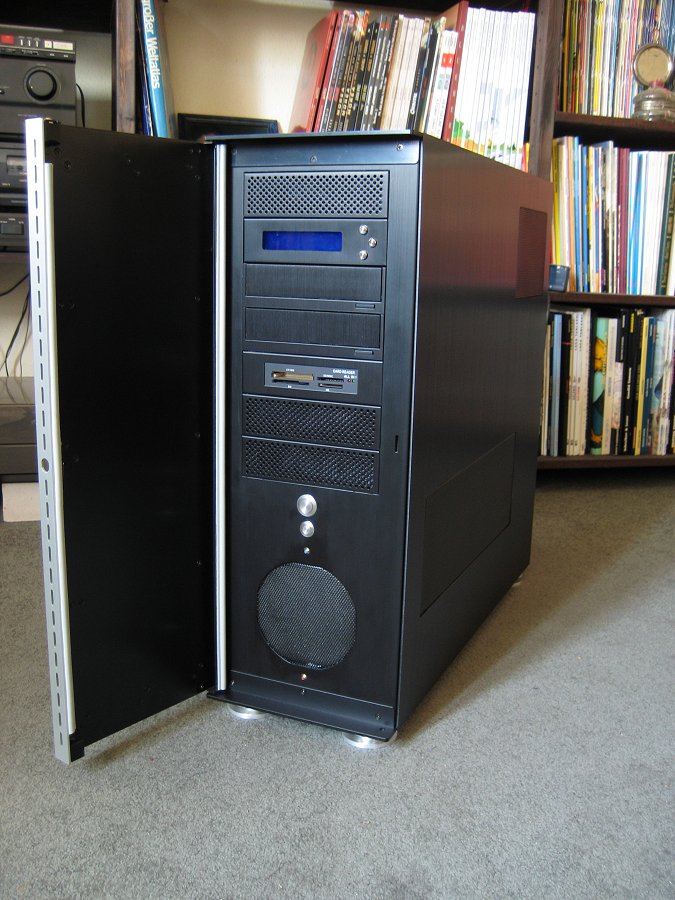

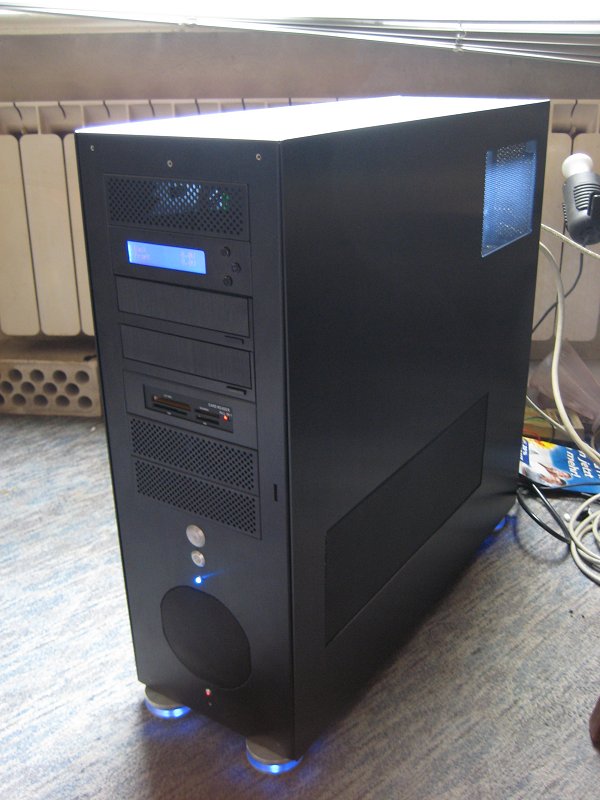

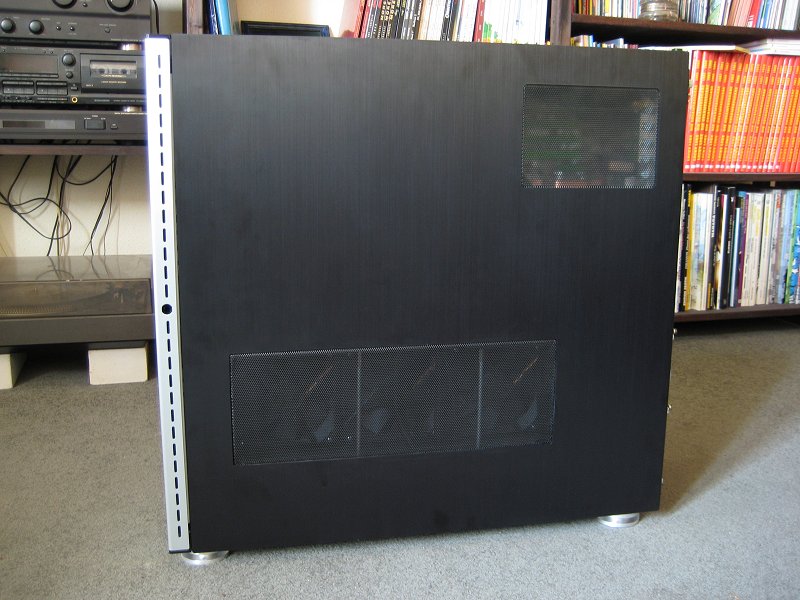

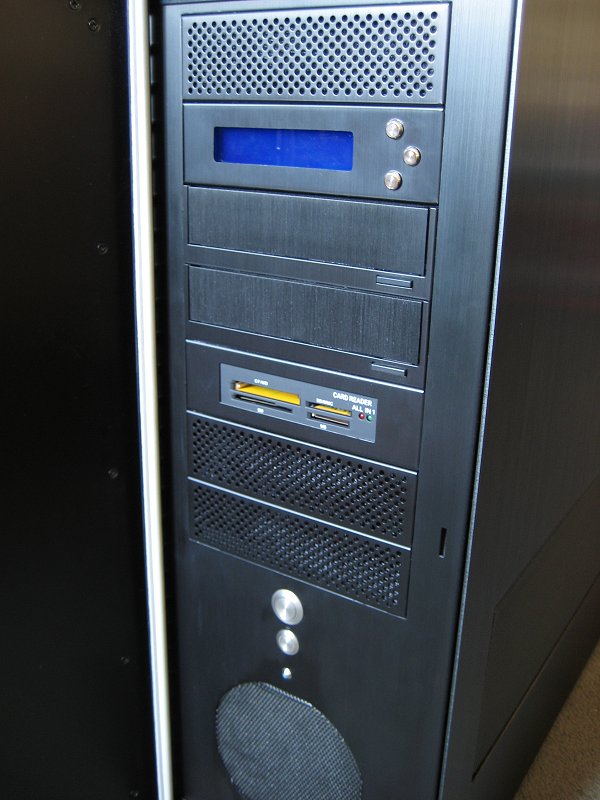

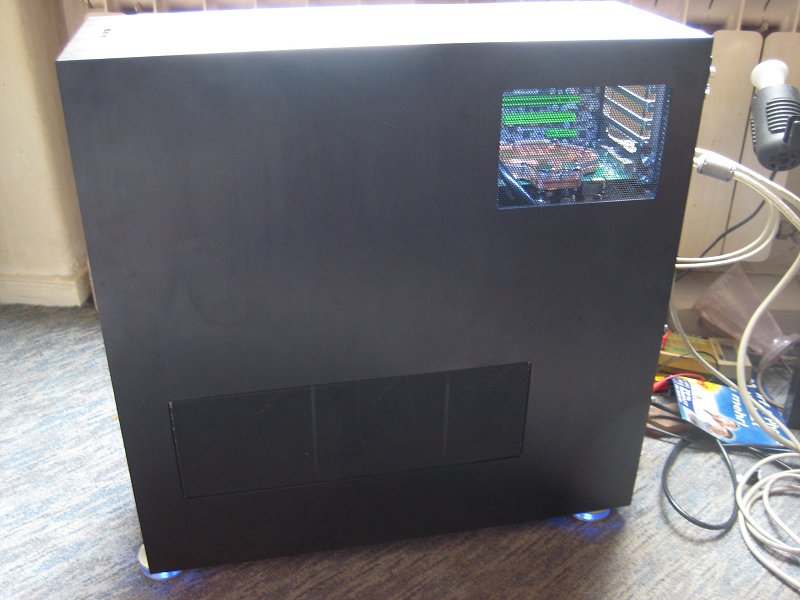

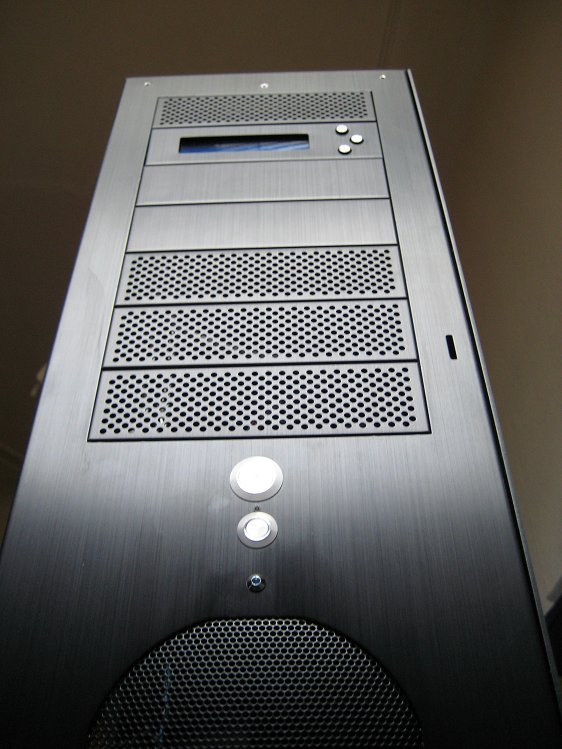

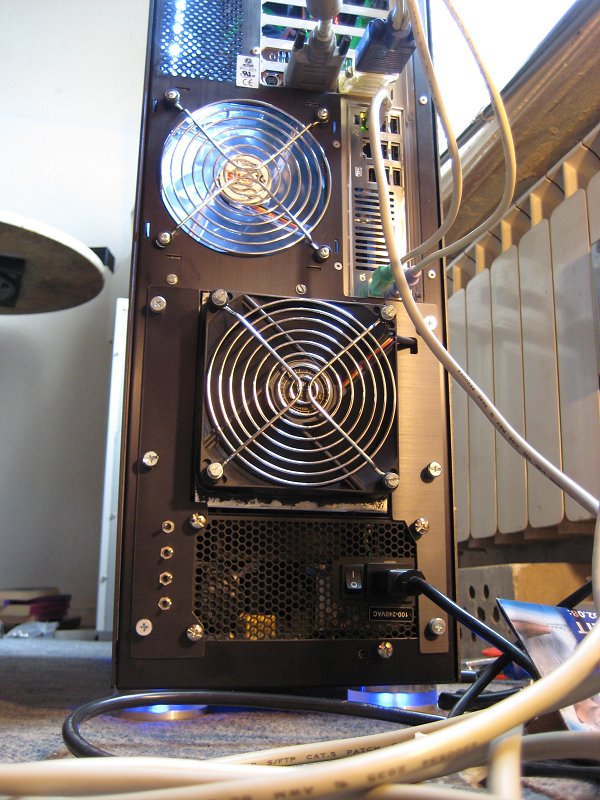

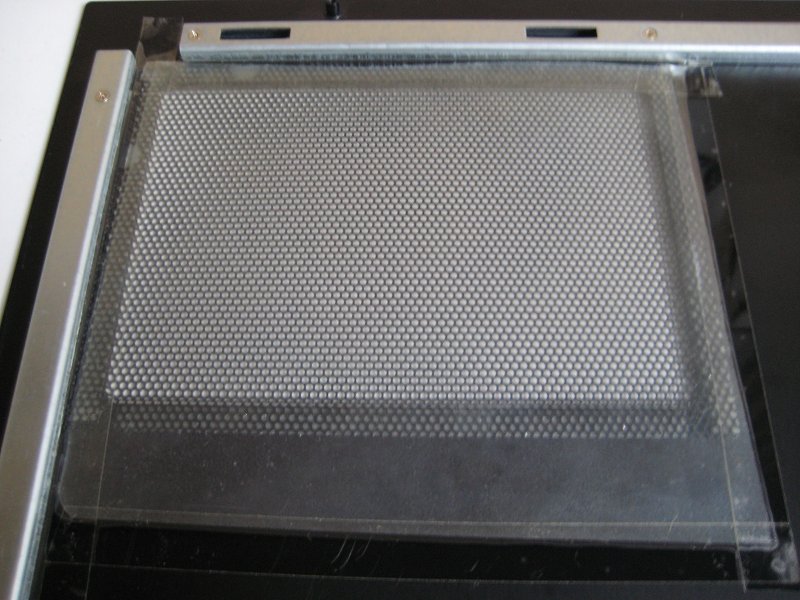

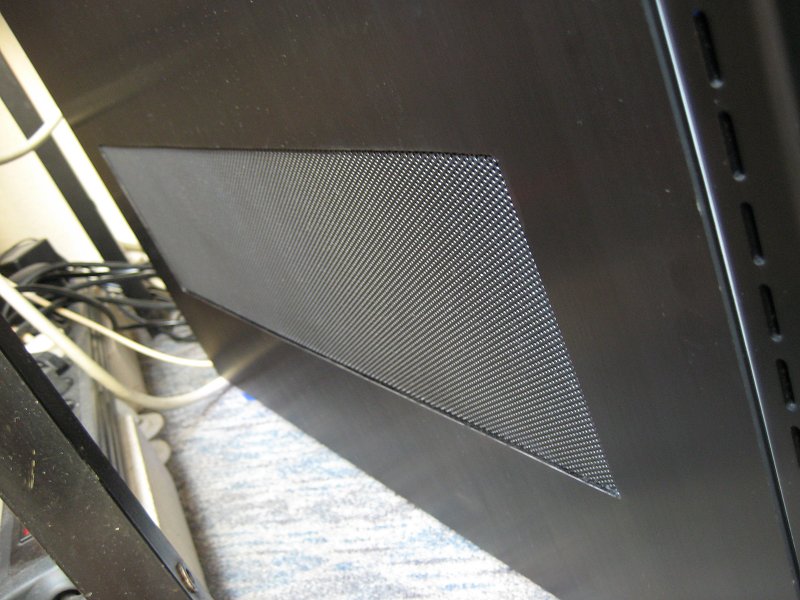

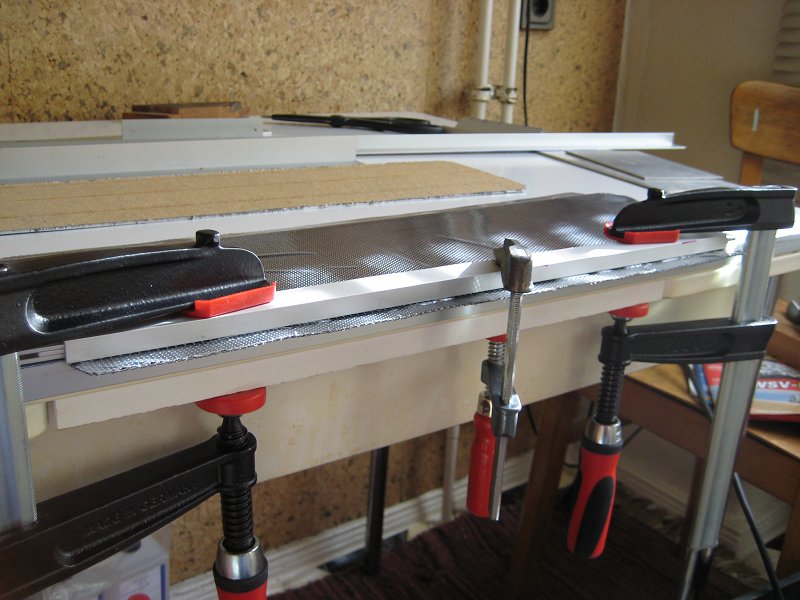

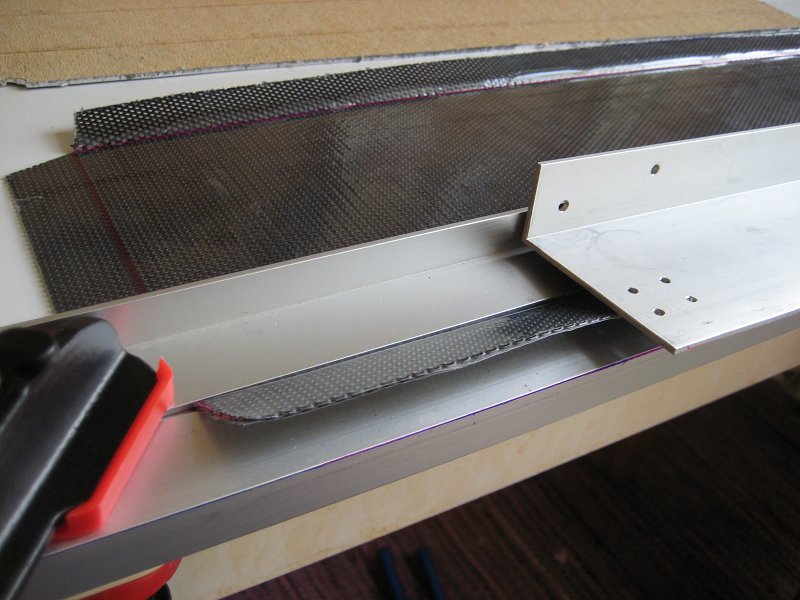

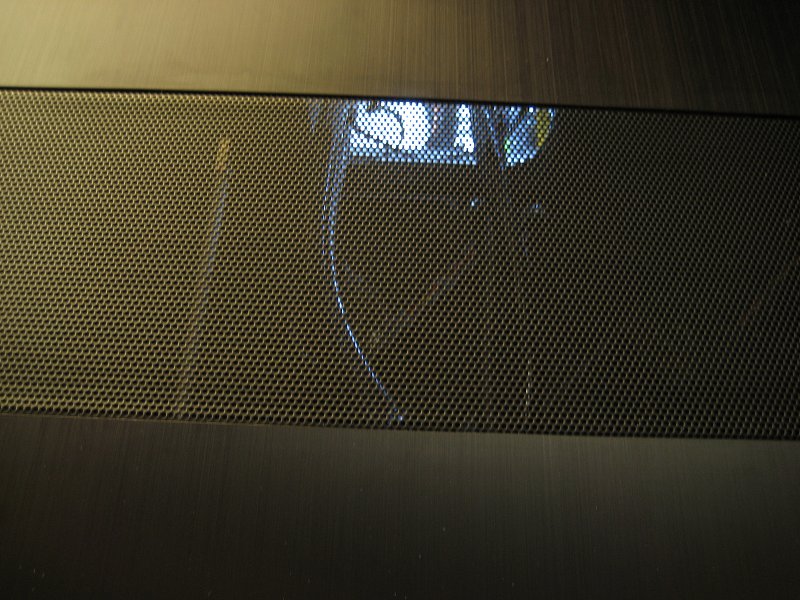

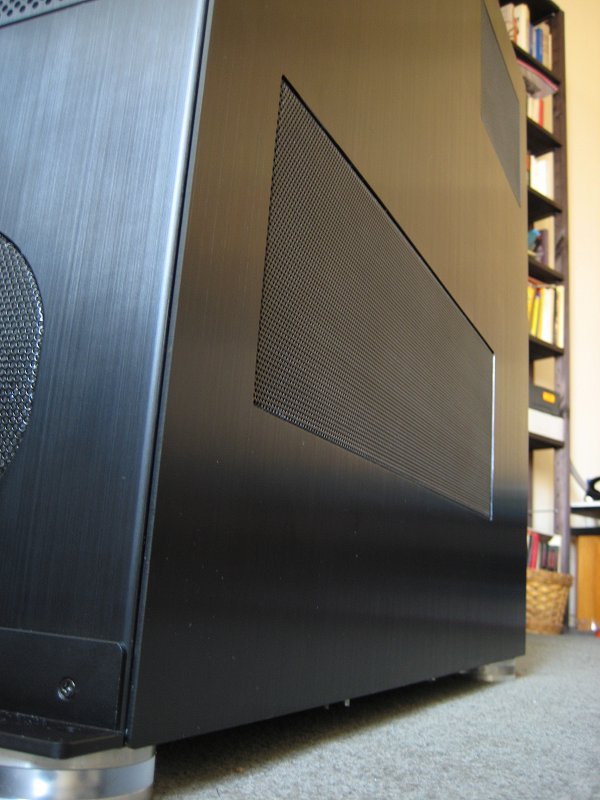

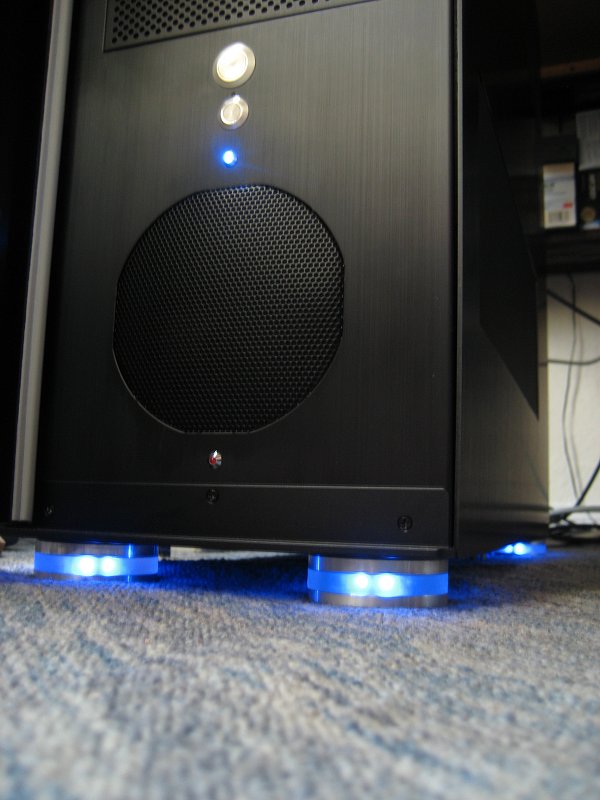

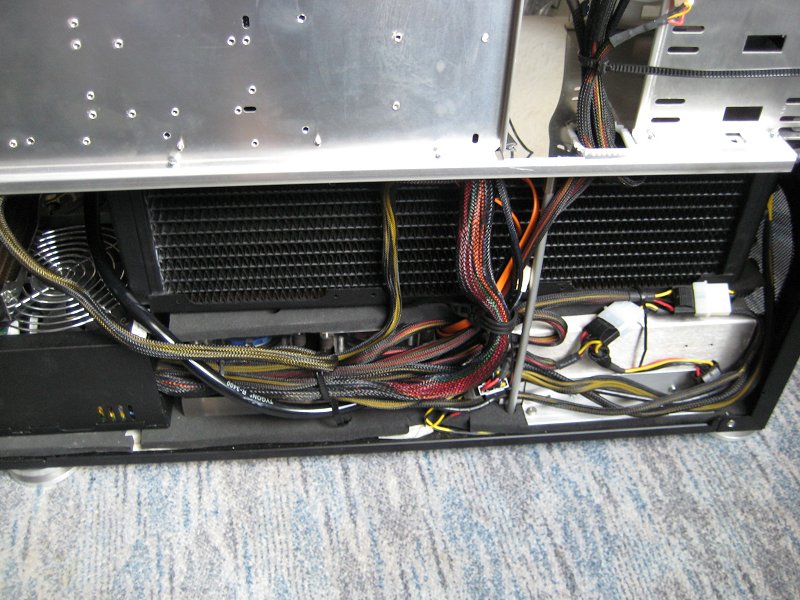

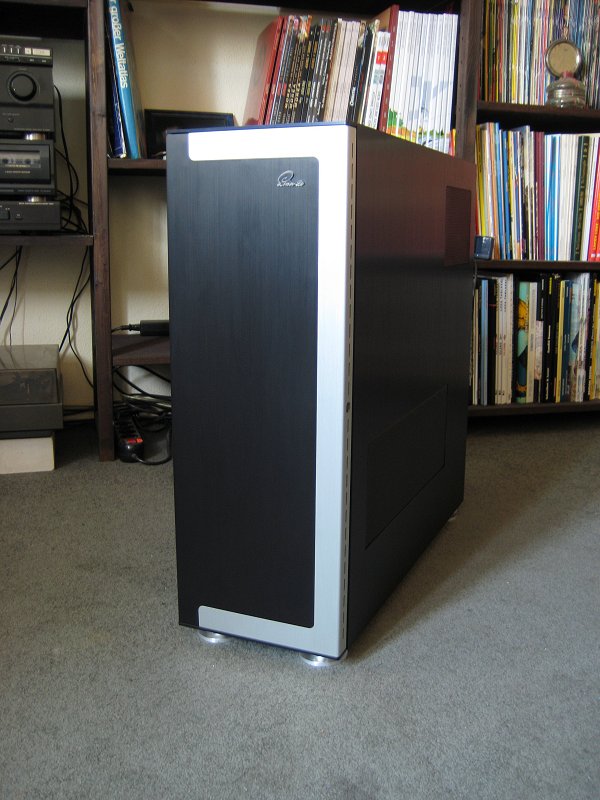

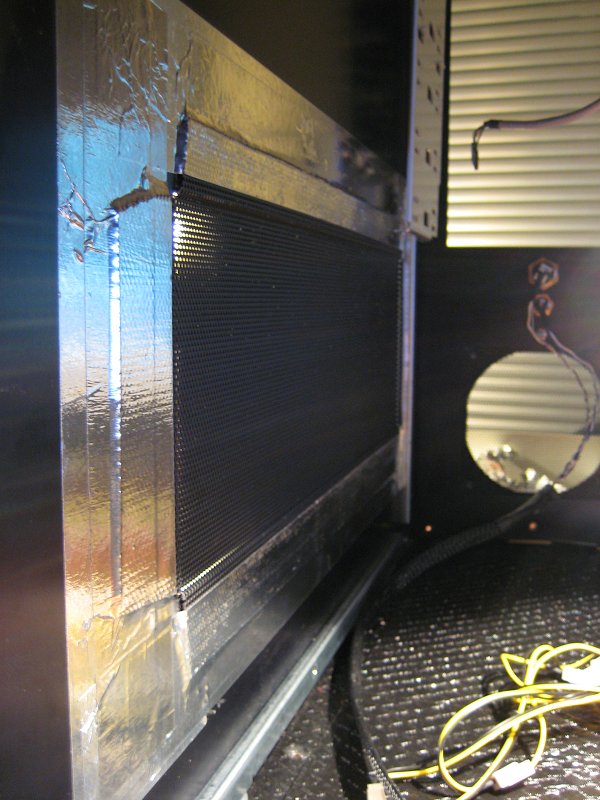

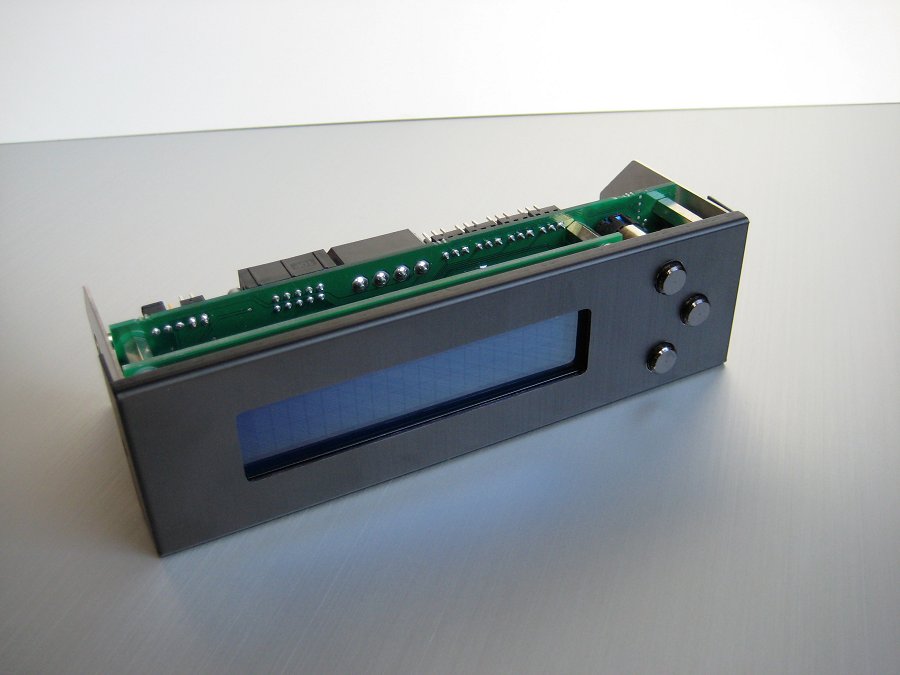

Case Update

PC201B PC201B PC201B PC201B PC201B PC201B PC201B

PC201B PC201B PC201B PC201B PC201B PC201B PC201B PC201B

PC201B PC201B PC201B PC201B PC201B PC201B PC201B

PC201B PC201B PC201B PC201B PC201B PC201B PC201B

PC201B PC201B PC201B PC201B PC201B PC201B

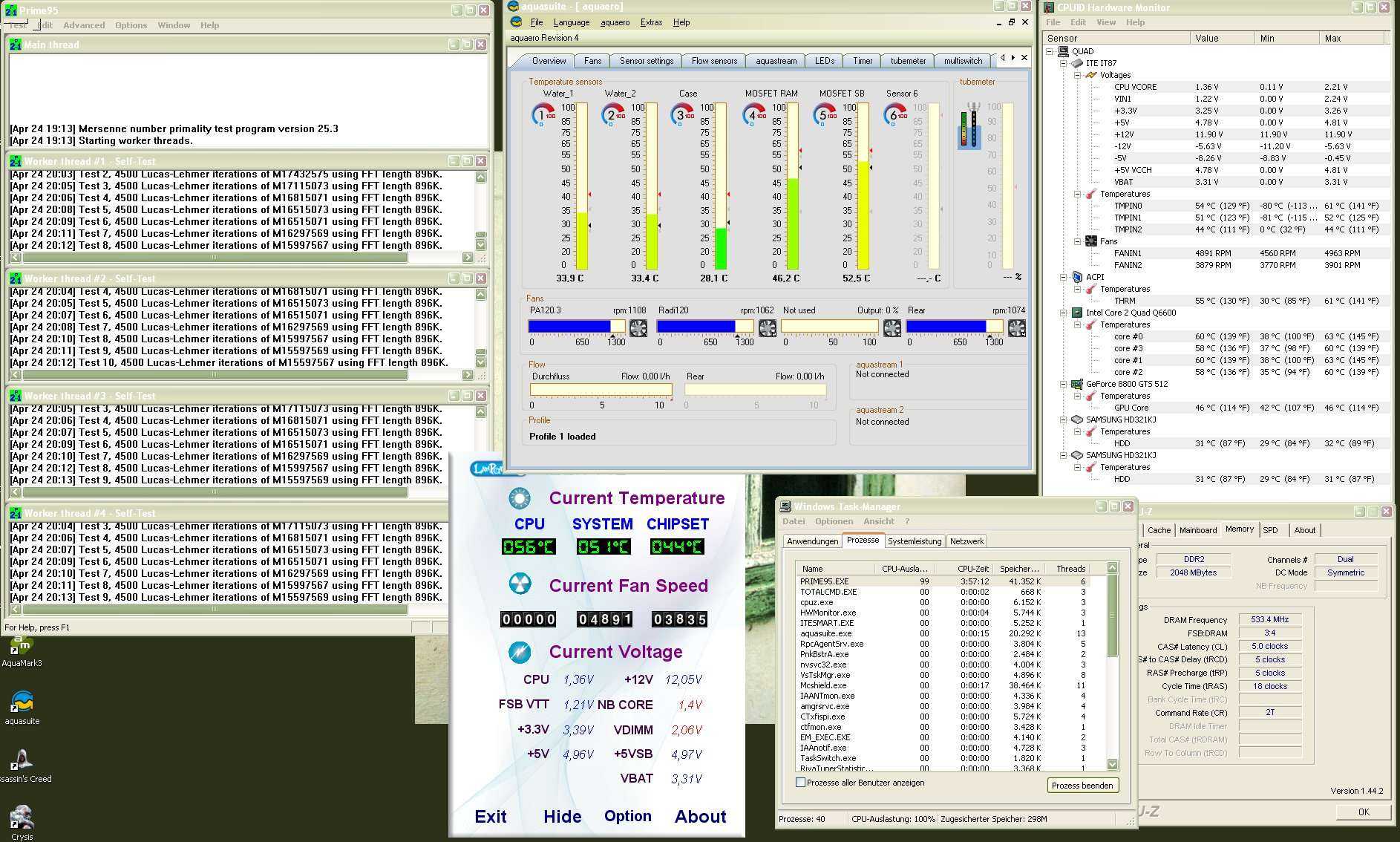

Bios settings, stress tests and benchmarks

22.04 .. 04.05.2008

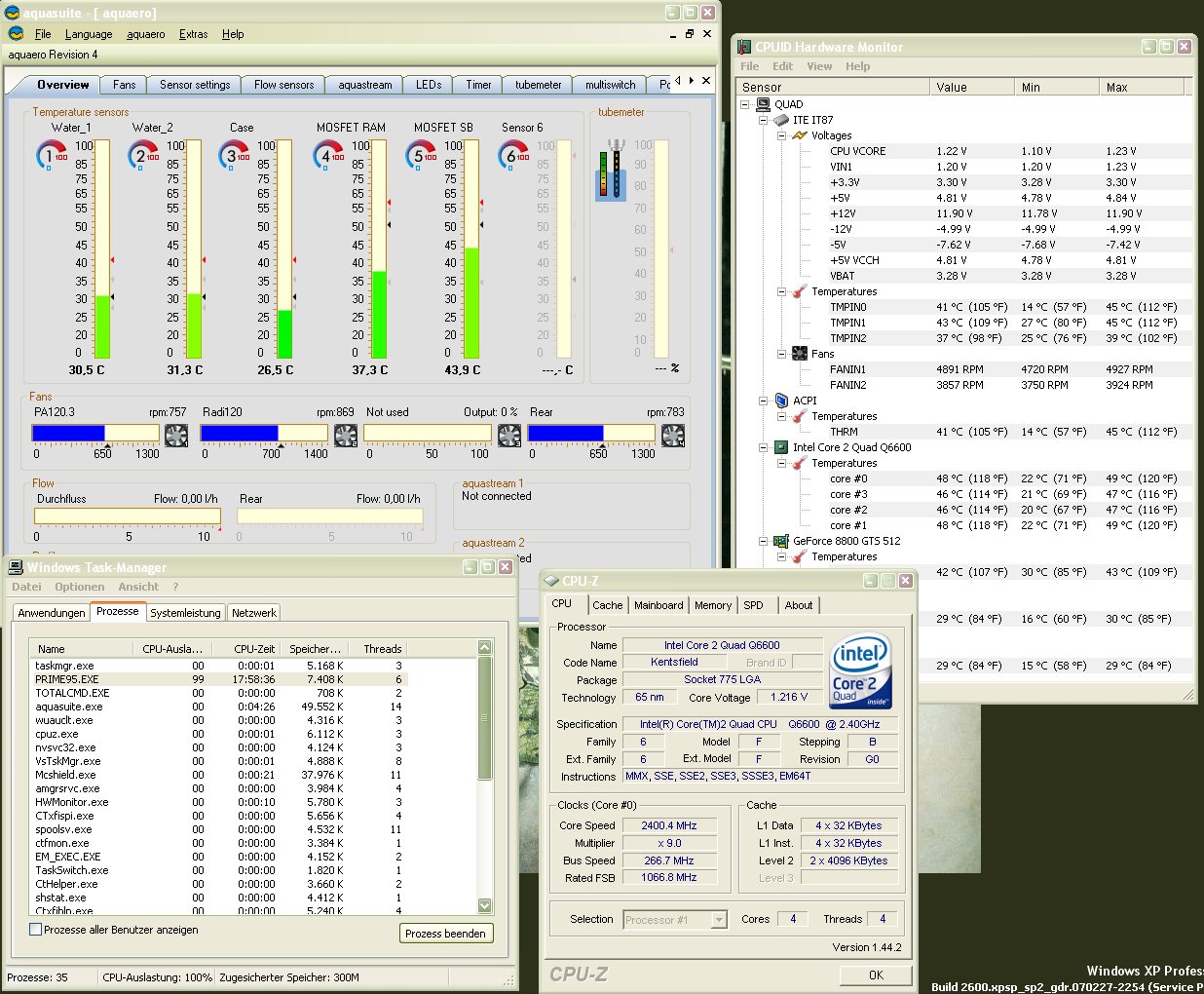

2.4 GHz CPU clock (9x266) standard setting (Bios defaults):

PC201B PC201B PC201B PC201B PC201B PC201B



3.0 GHz CPU clock (9x333), FSB set to 333 MHz, VCore @104.6%, RAM 533MHz, rest @stock:

PC201B PC201B PC201B PC201B PC201B PC201B
So reaching 3.0 GHz is really easy ;-)

Adjusting the XFX GTS512 clocks (core/memory) to 680/1000, 720/1000 and 750/1010:
PC201B PC201B PC201B



3.2 GHz CPU clock (8x400), FSB set to 400 MHz, VCore 105.6%, NB VCore to 1.405V, RAM 533MHz, rest @stock:

PC201B
Did not spend a long time with this setting and moved forward.



3.6 GHz CPU clock (9x400), FSB set to 400 MHz, RAM 533MHz:

Setting 1: VCore 109.6% = 1.36V, NB VCore 1.405V, SB VCore 1.510V, VTT 1.211V, Clockgen 3.45V, rest @stock:
PC201B PC201B

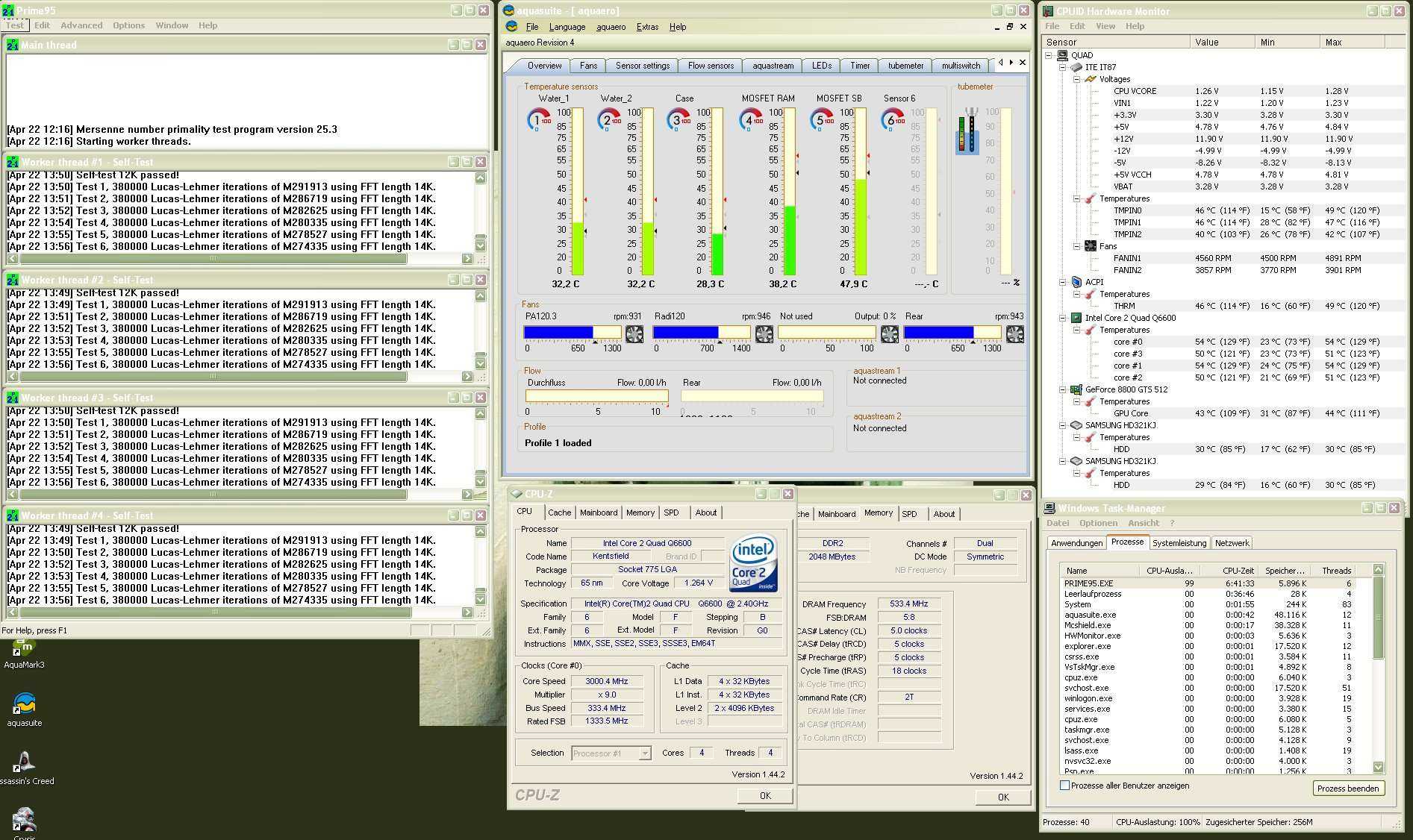

Unstable: 2h Prime32 under XP32 -> Reboot

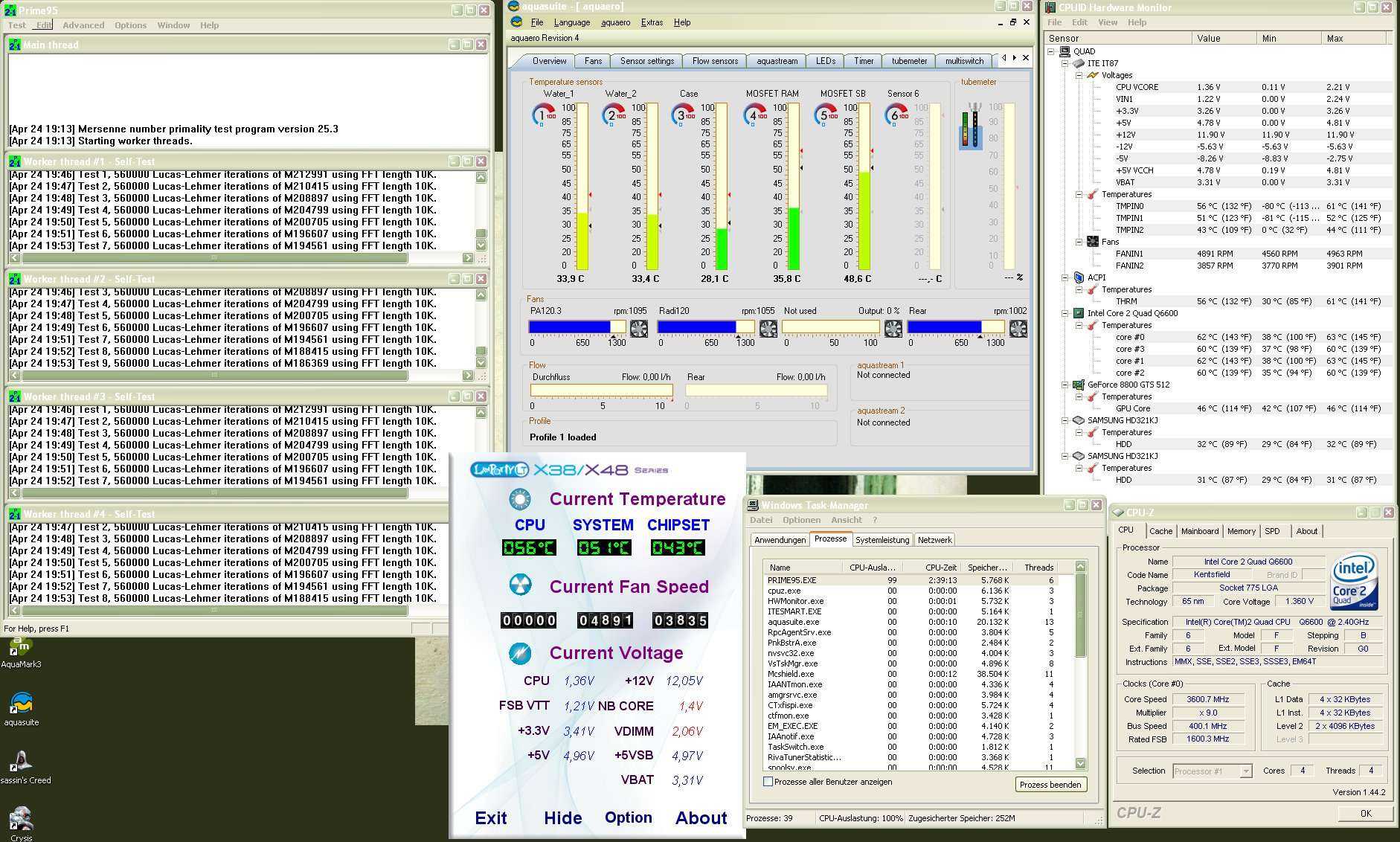

Setting 2: VCore 110.x% = 1.376V, NB VCore 1.405V, SB VCore 1.510V, VTT 1.266V, Clockgen 3.60V, rest @stock:
Added a SilenX iXtrema 120 Fan blowing to the RAM- and SB-MOSFETs of the Mainboard
PC201B PC201B
Unstable: 6h Prime32 under XP32 ok, but 30 min Prime64 under XP64 -> Reboot

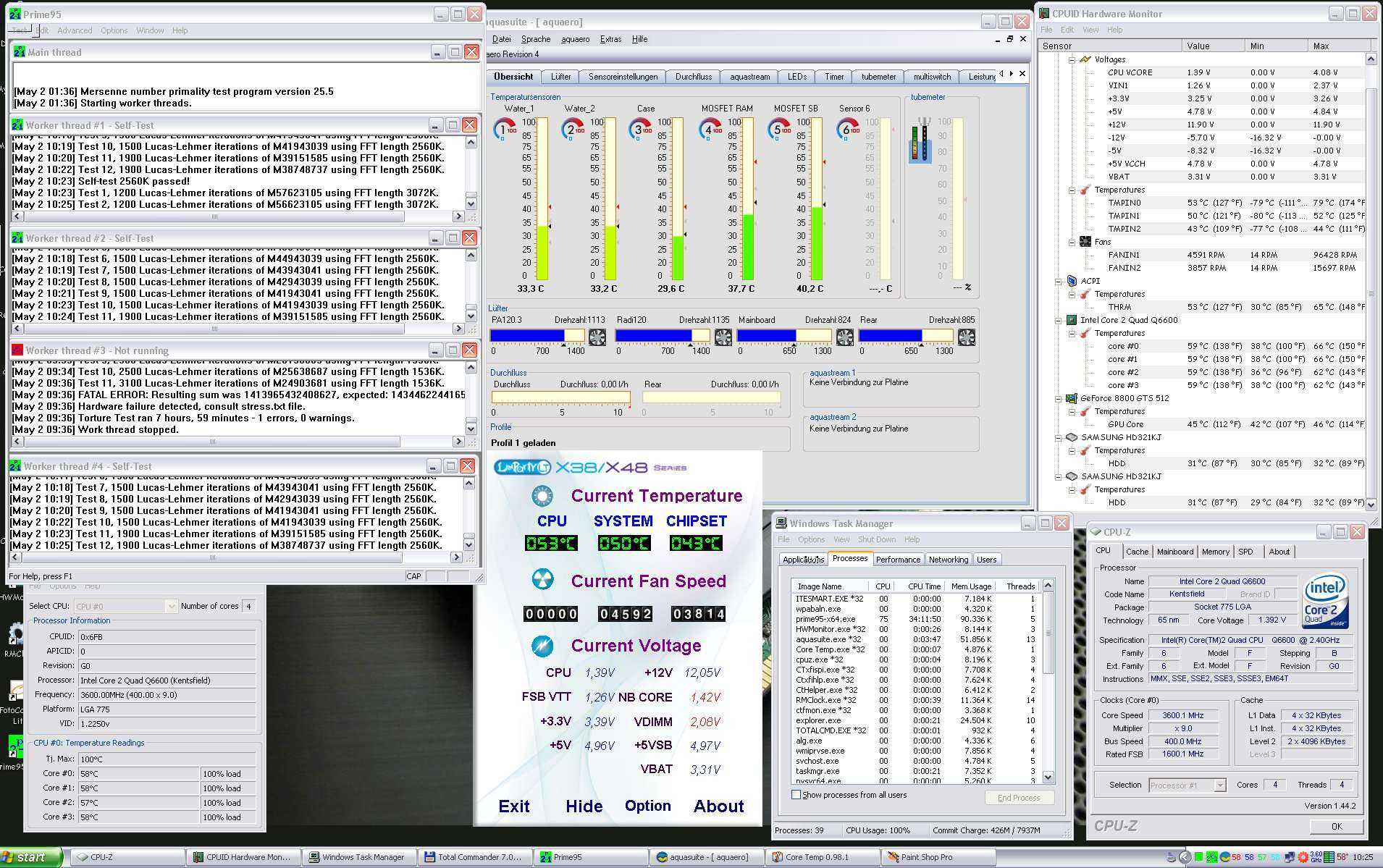

Setting 3: VCore 111.57% = 1.392V, NB VCore 1.444V, SB VCore 1.640V, VTT 1.266V, Clockgen 3.60V, rest @stock:
PC201B PC201B

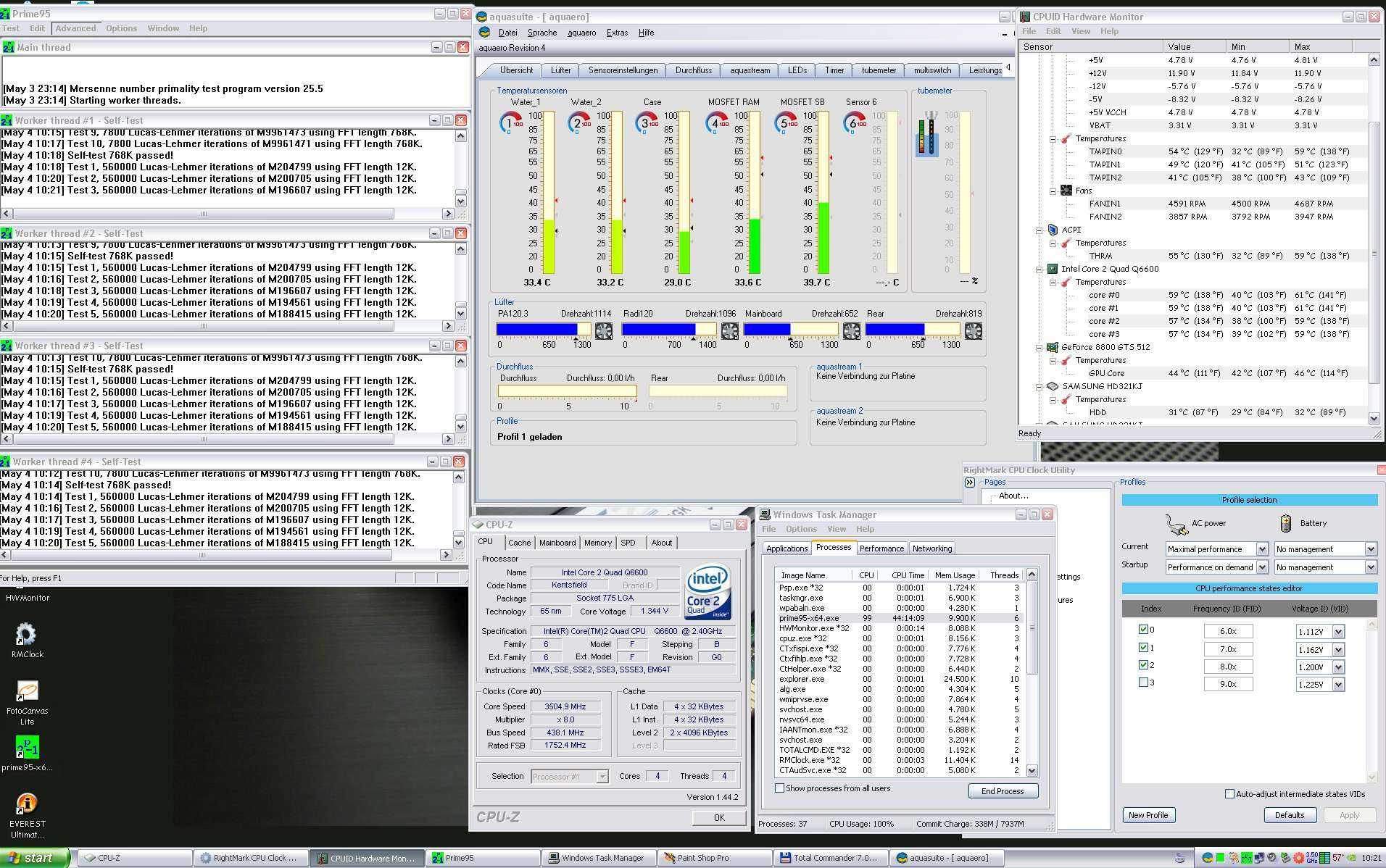

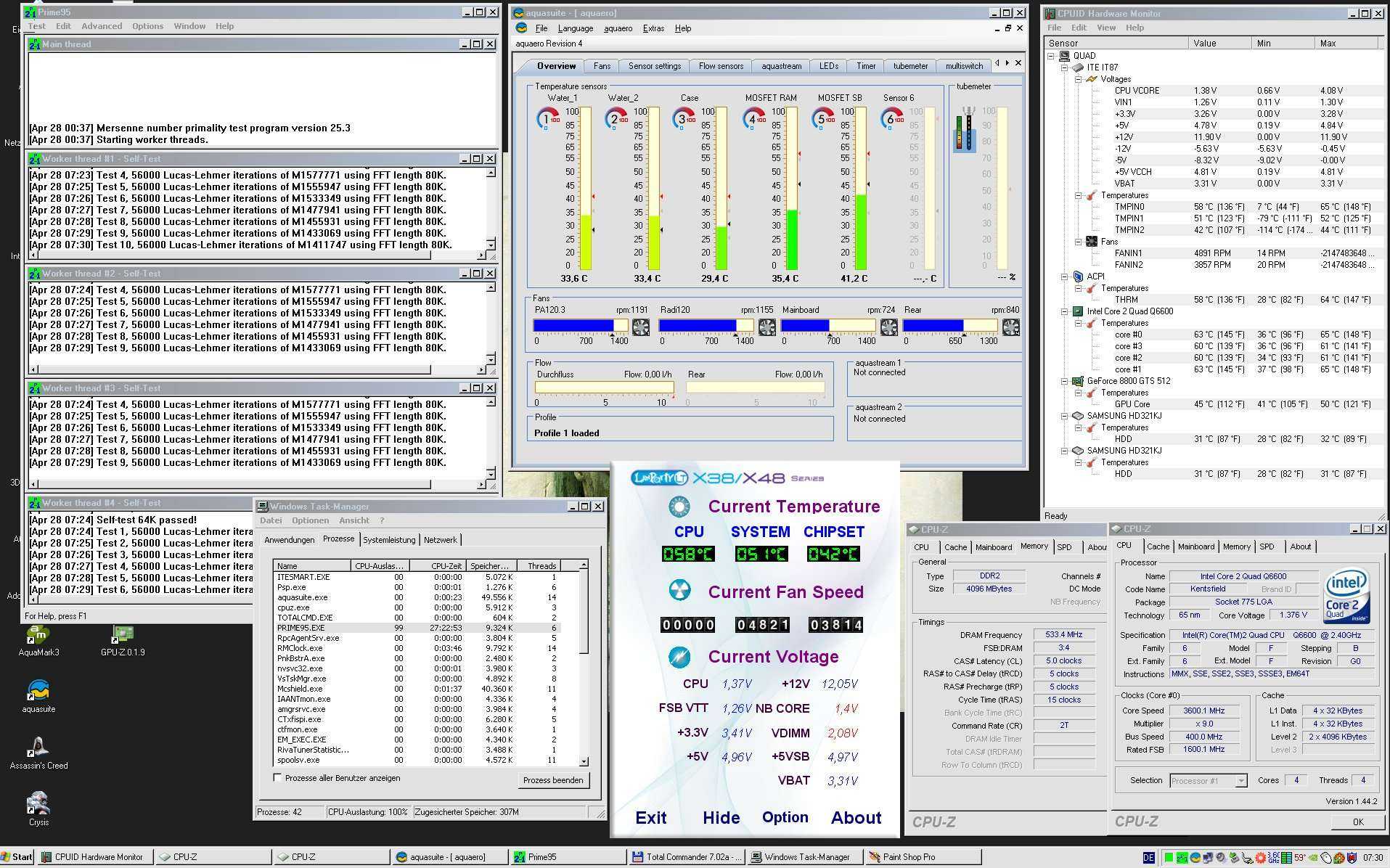

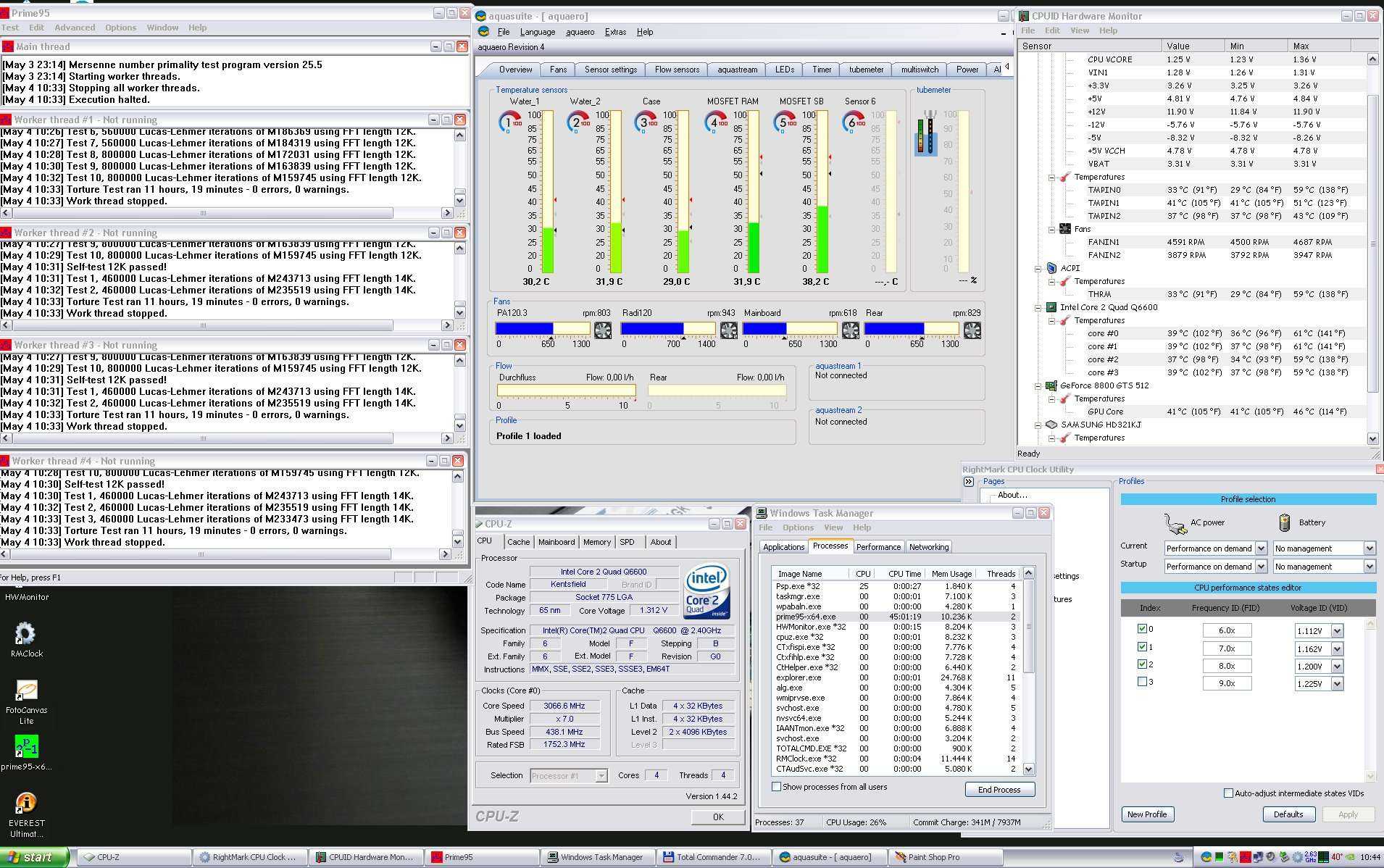

Unstable: 8h Prime64 under XP64 -> Thread3 Fatal Error

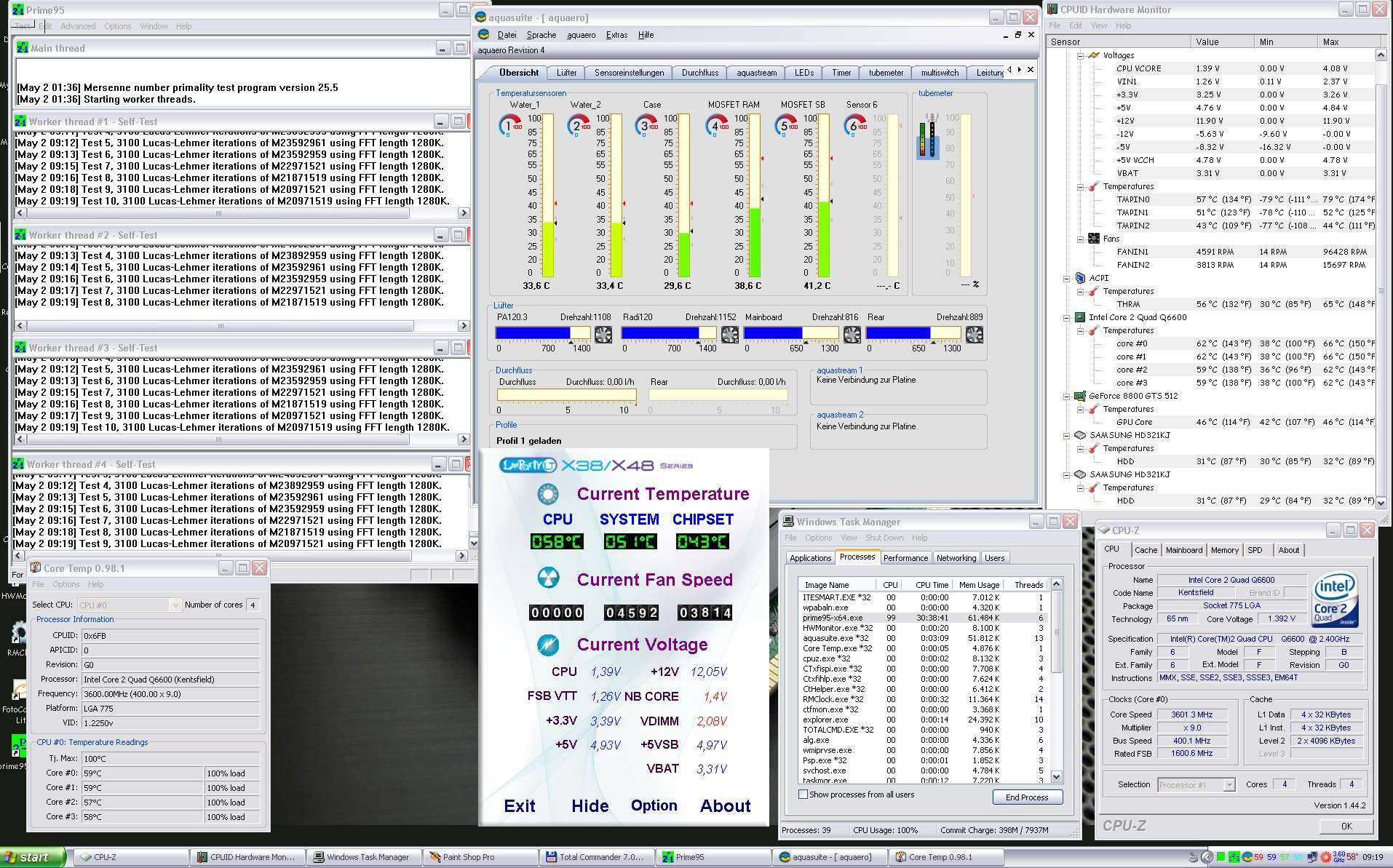

Setting 4: VCore 111.81% = 1.396V, NB VCore 1.456V, SB VCore 1.640V, VTT 1.272V, Clockgen 3.60V, rest @stock:

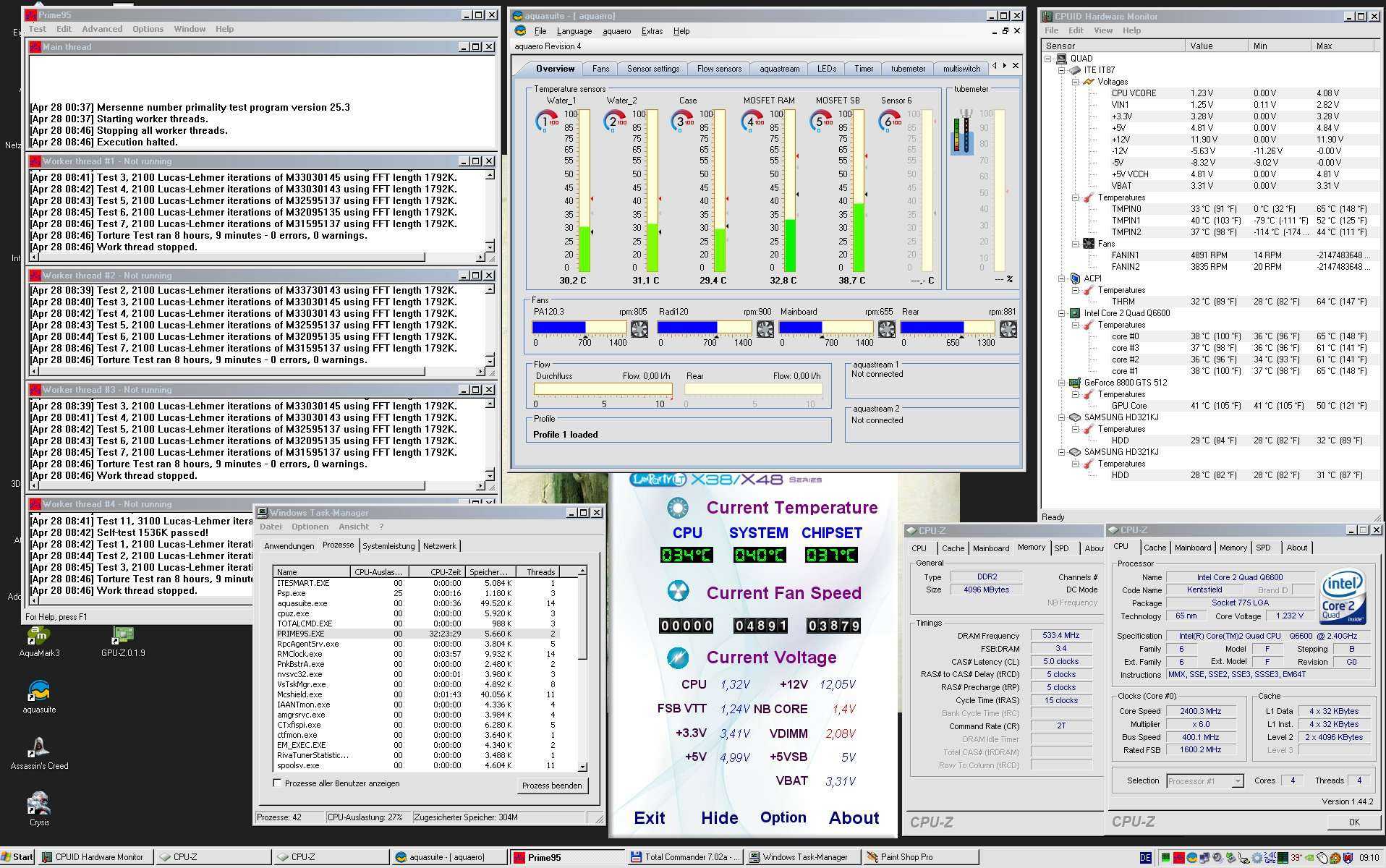

Testing: 8h Prime64 under XP64 ok, but hot CPU core temperatures up to 66C

Some Benchmark results with setting 4 and XFX GTS512 @750/1010:
PC201B PC201B PC201B PC201B PC201B



Further testing around 3.5 GHz:

After a couple of further different bios setting tryouts, i used manual GTL REF Voltage Control settings
and could lower CPU Vcore a bit. Some longer stress tests later i reached this intermediate result:

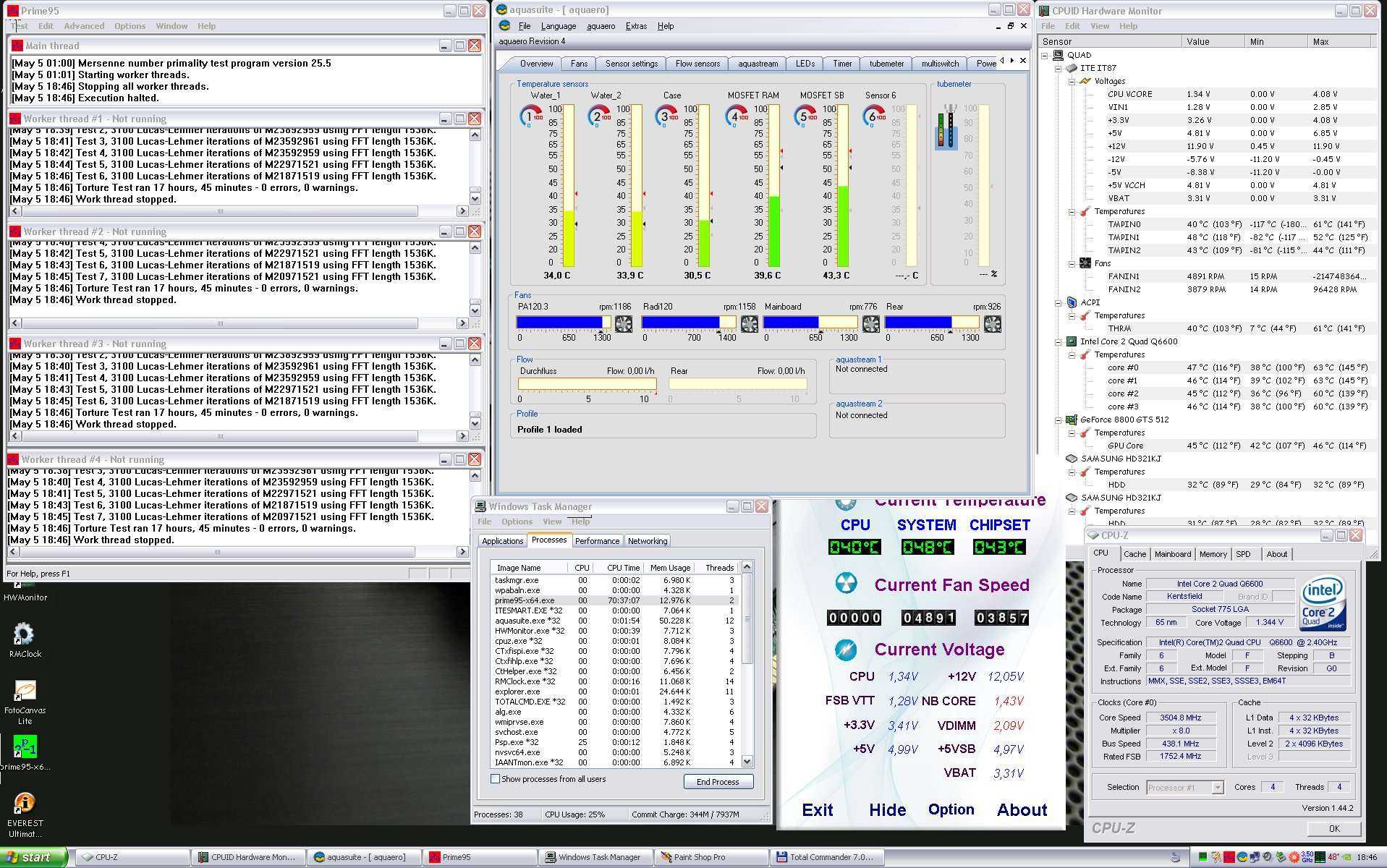

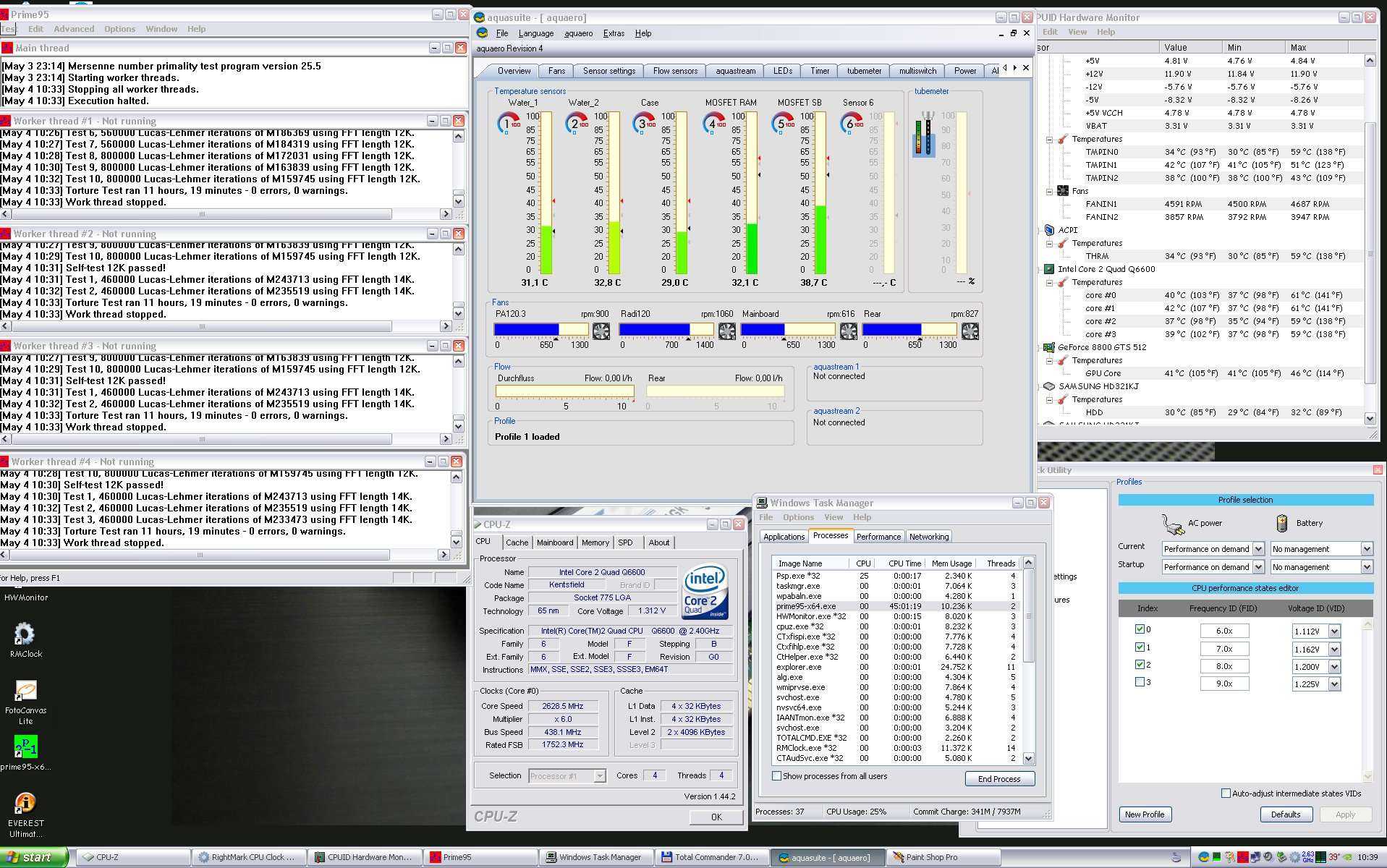

3.5 GHz CPU clock (8x438), RAM 547MHz complete DFI Genie Bios settings

PC201B PC201B PC201B PC201B

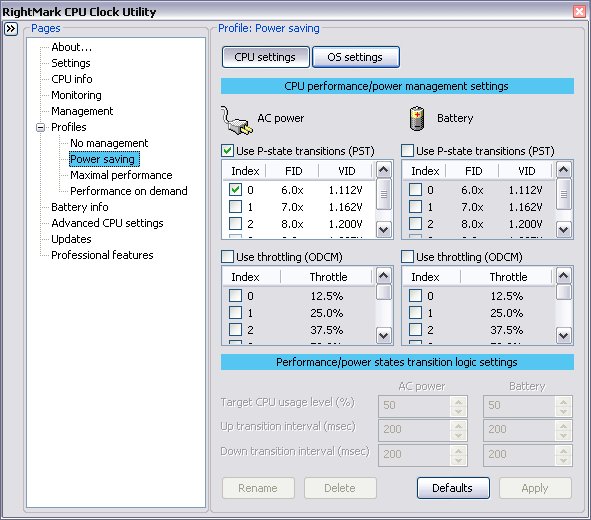

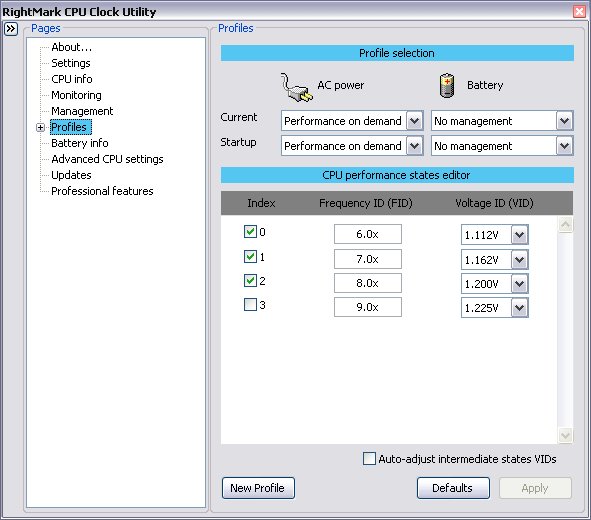

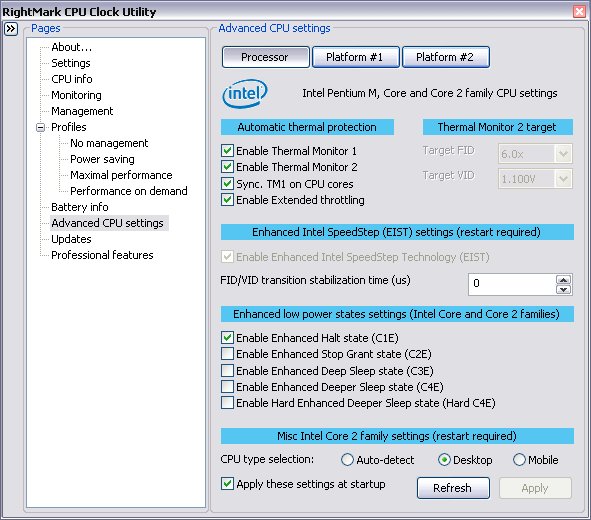

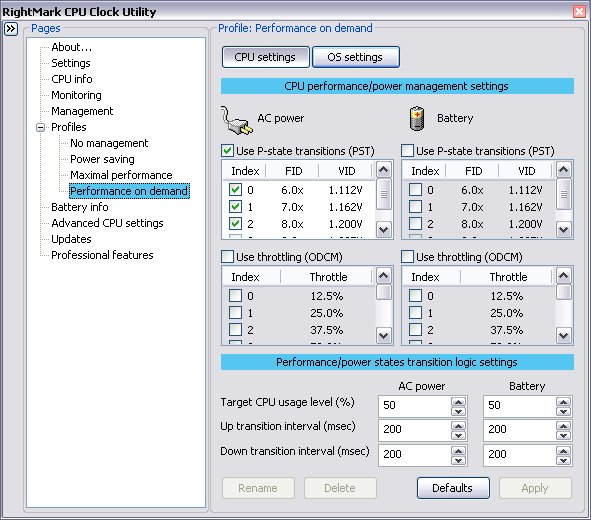

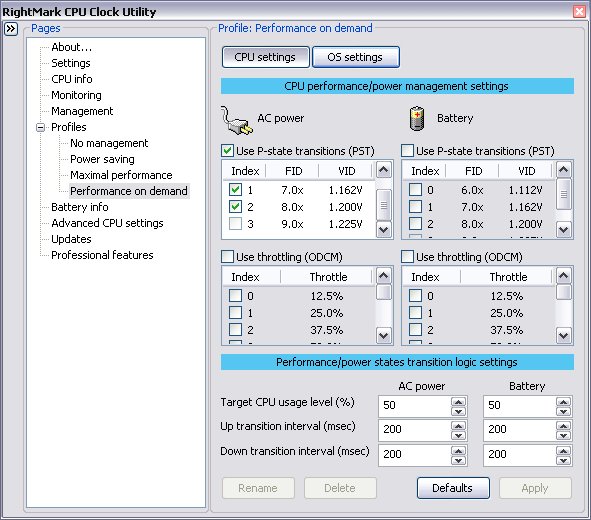

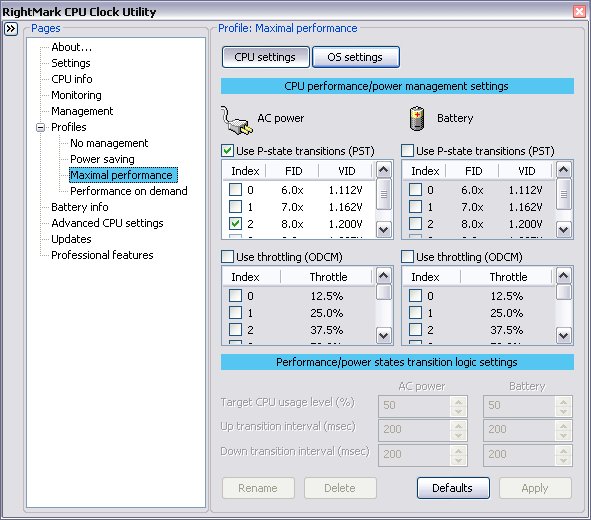

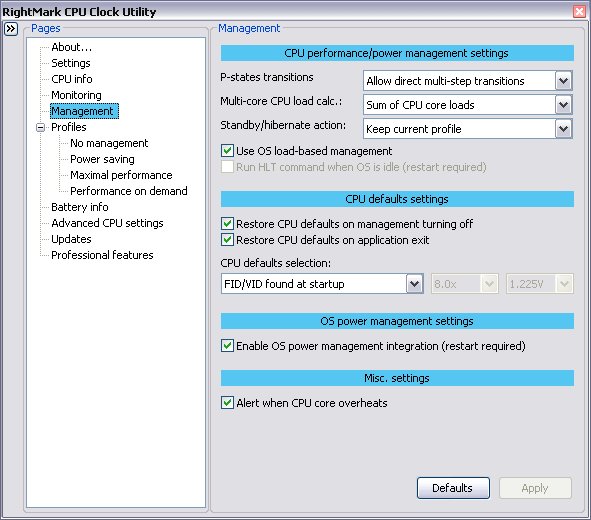

RMClock settings:

PC201B PC201B PC201B PC201B PC201B PC201B PC201B

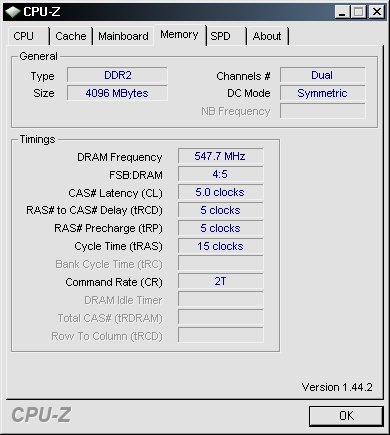

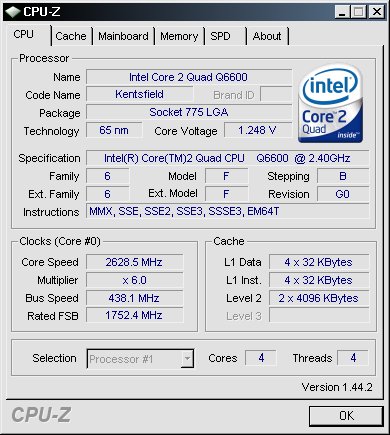

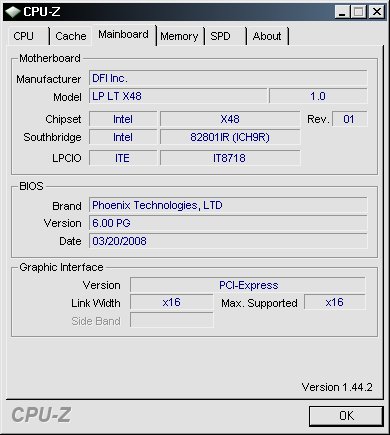

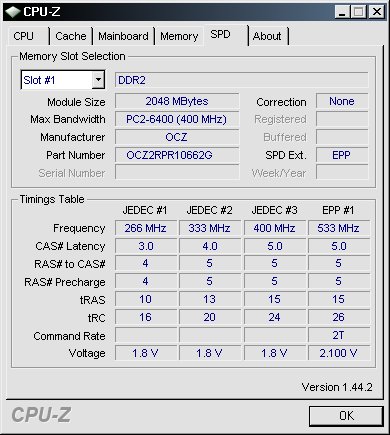

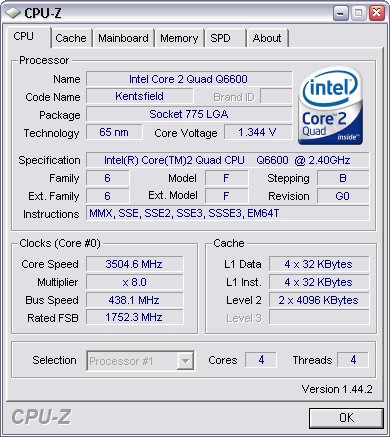

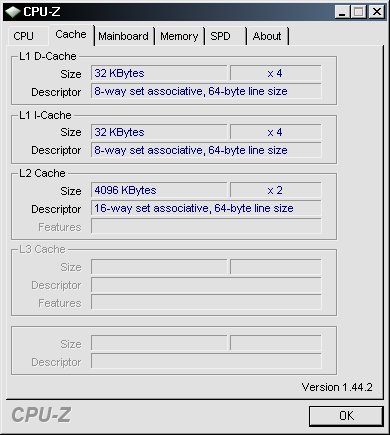

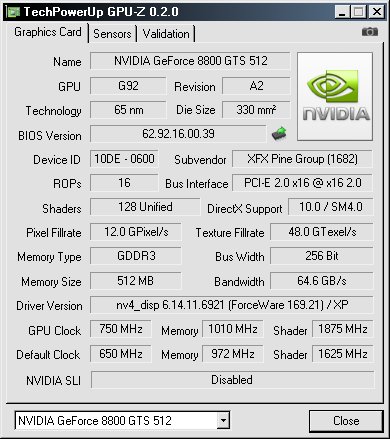

CPU-Z, GPU-Z:

PC201B PC201B PC201B PC201B PC201B PC201B PC201B PC201B PC201B

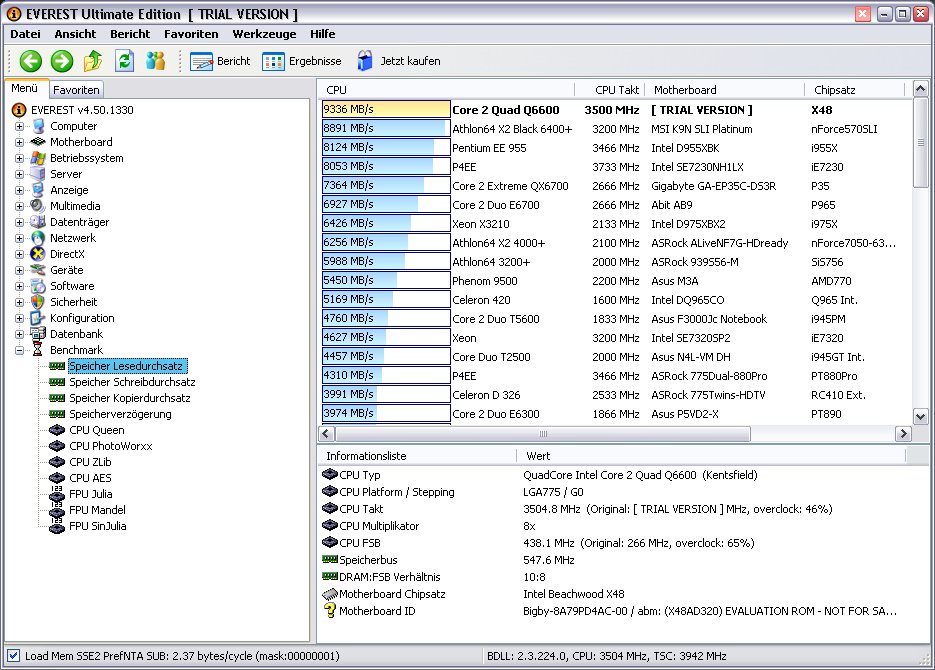

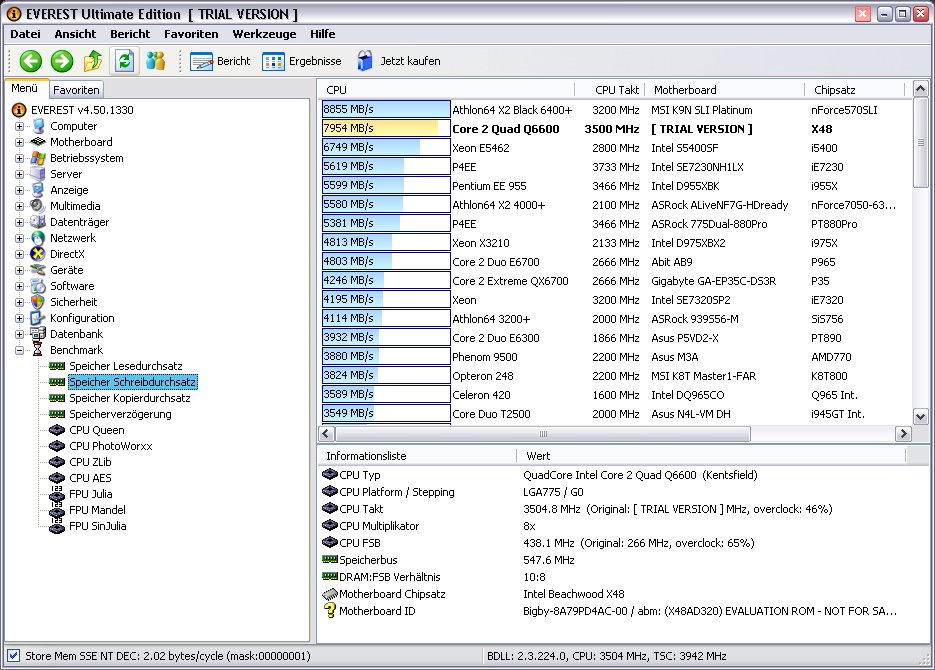

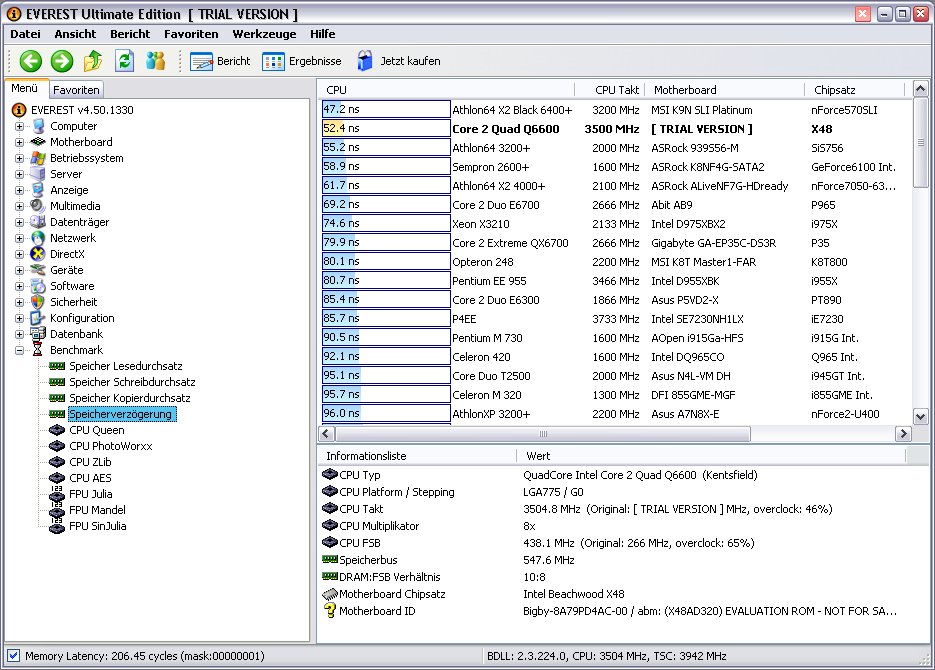

Everest:

PC201B PC201B PC201B PC201B

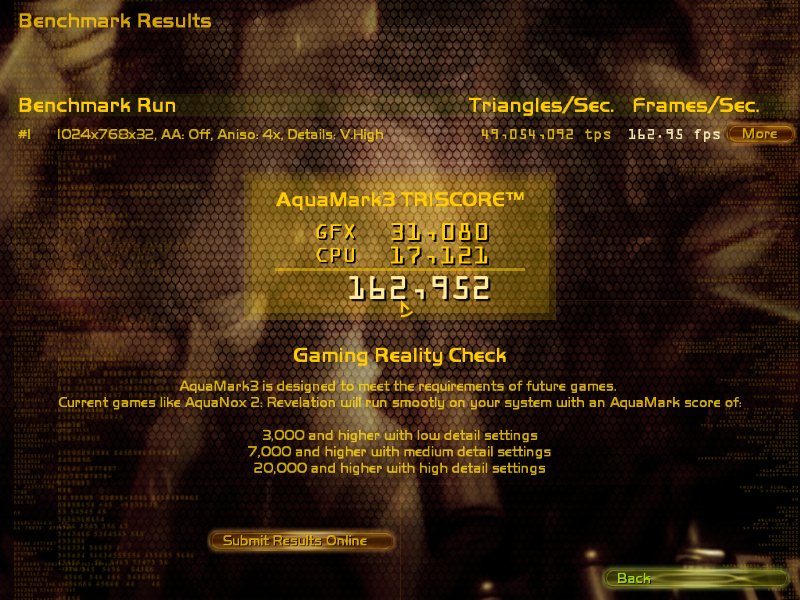

Aquamark 2.62 / 3.06 / 3.50 GHz with XFX GTS512 @750/1010 and 3.50 GHz with XFX GTS512 @stock:

PC201B PC201B PC201B PC201B

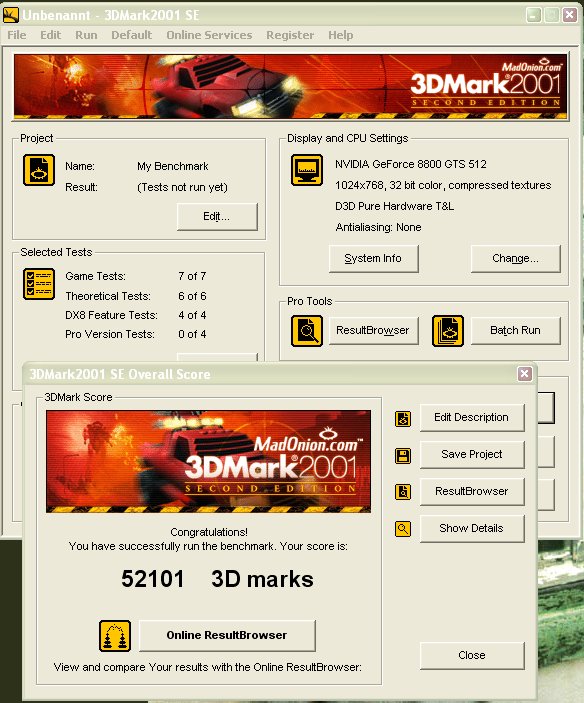

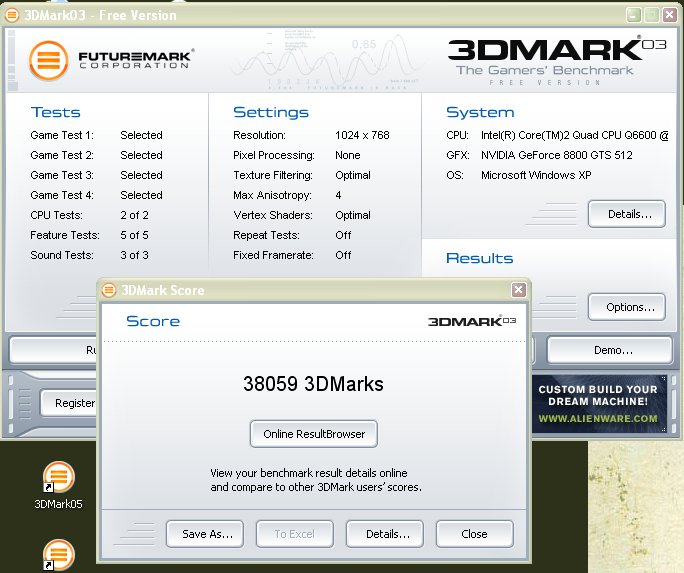

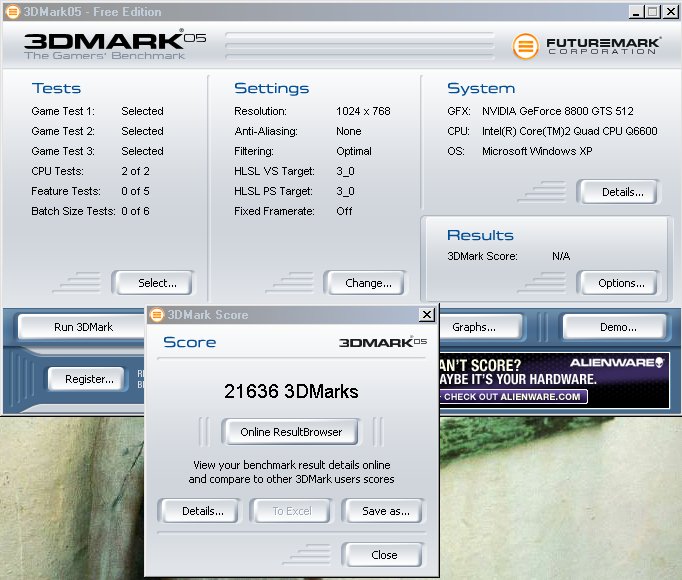

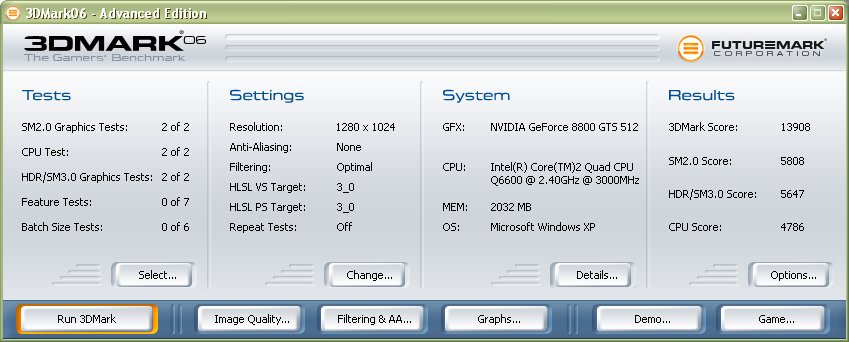

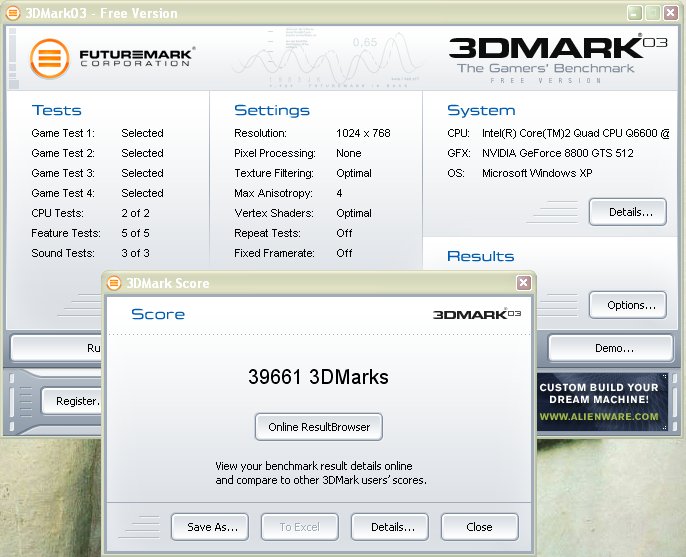

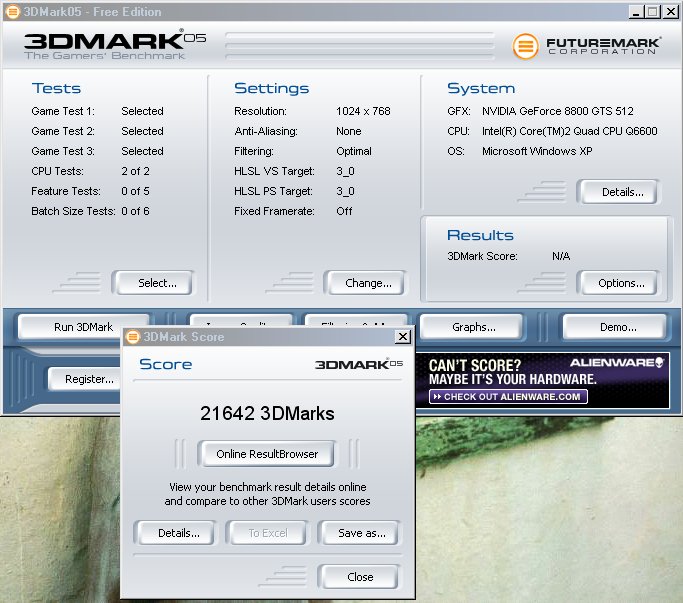

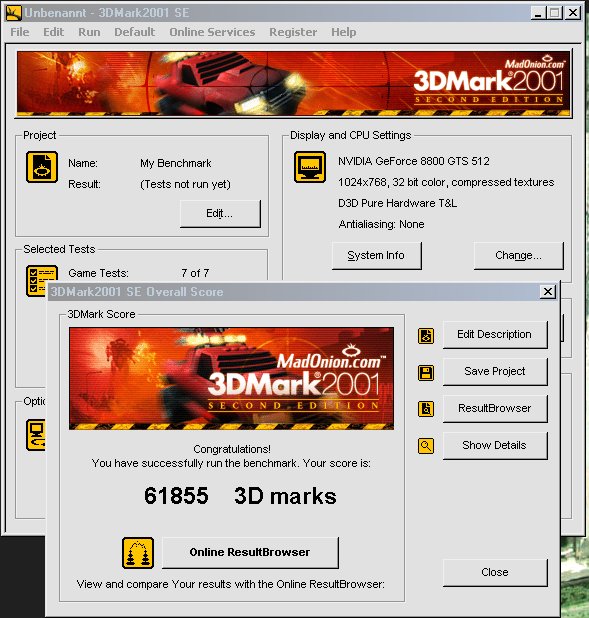

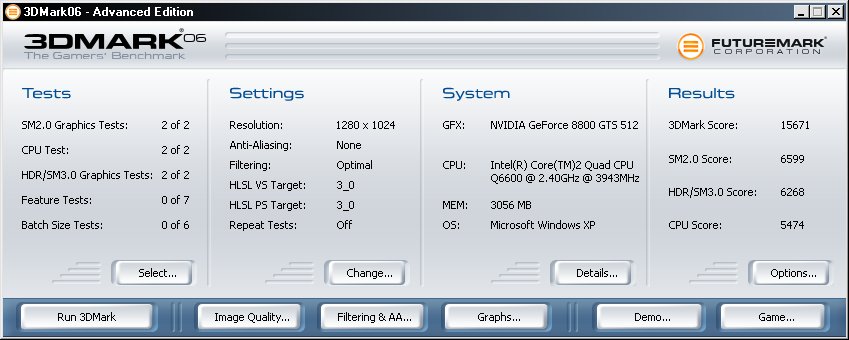

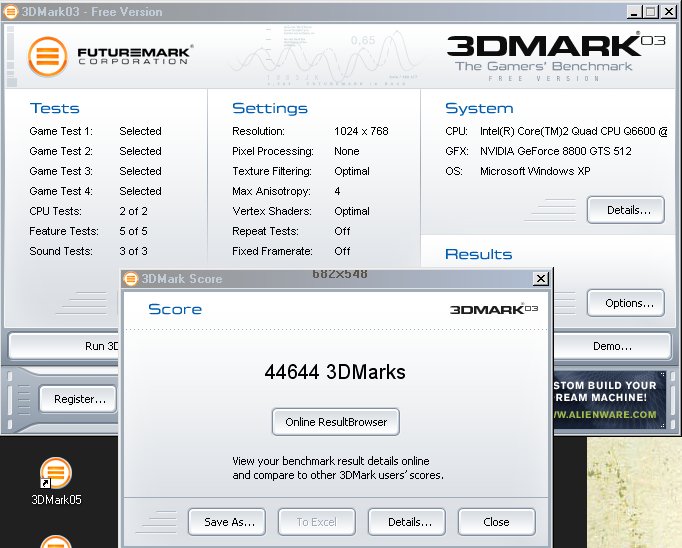

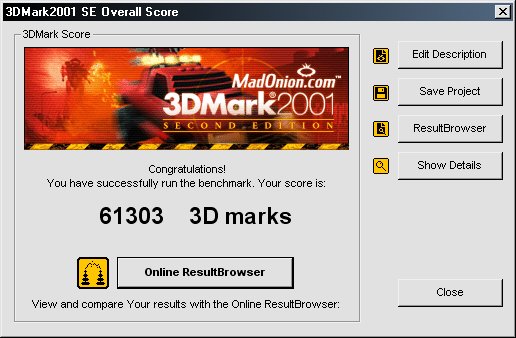

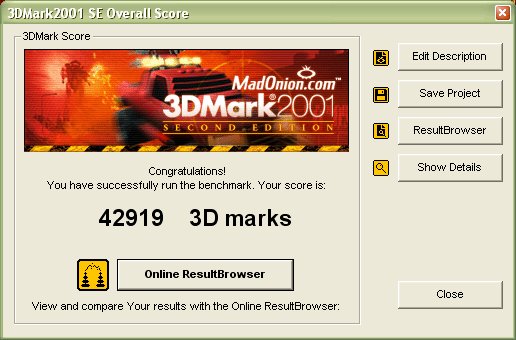

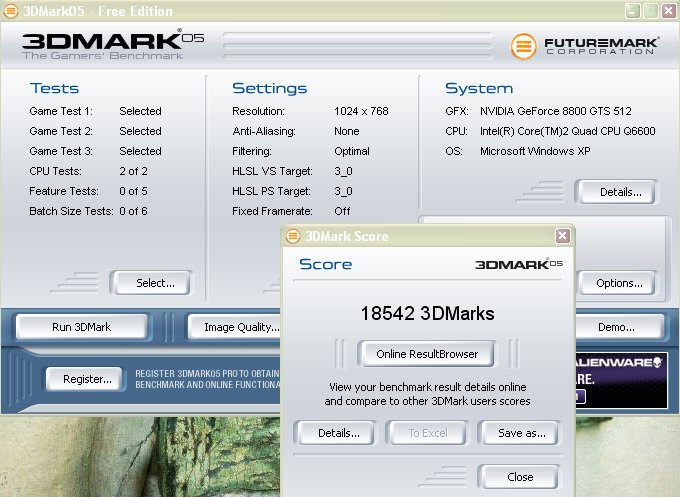

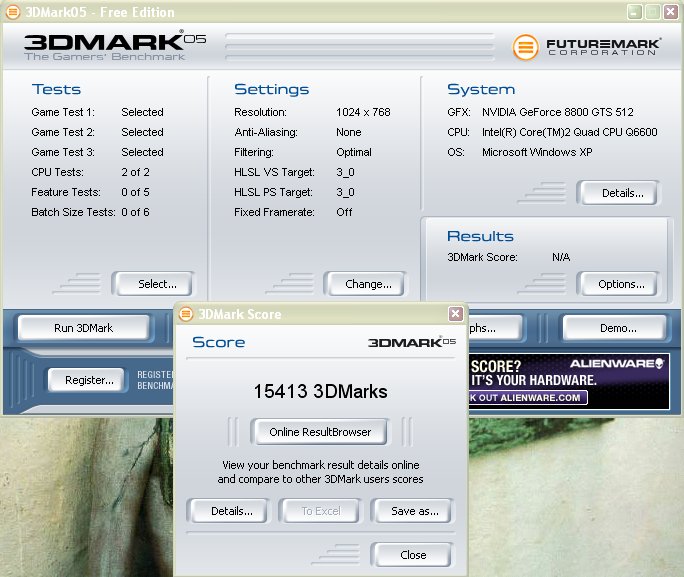

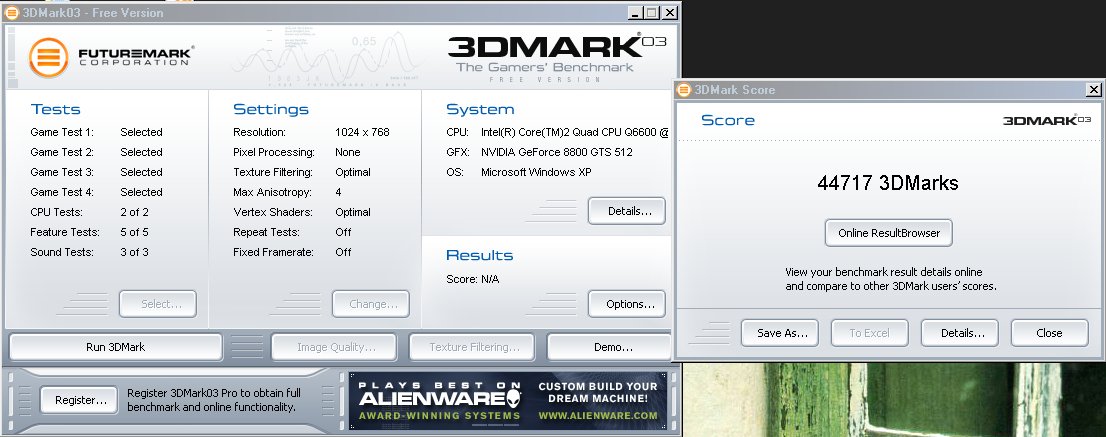

3DMark results, 3.50 GHz and XFX GTS512 @750/1010:

PC201B PC201B PC201B PC201B

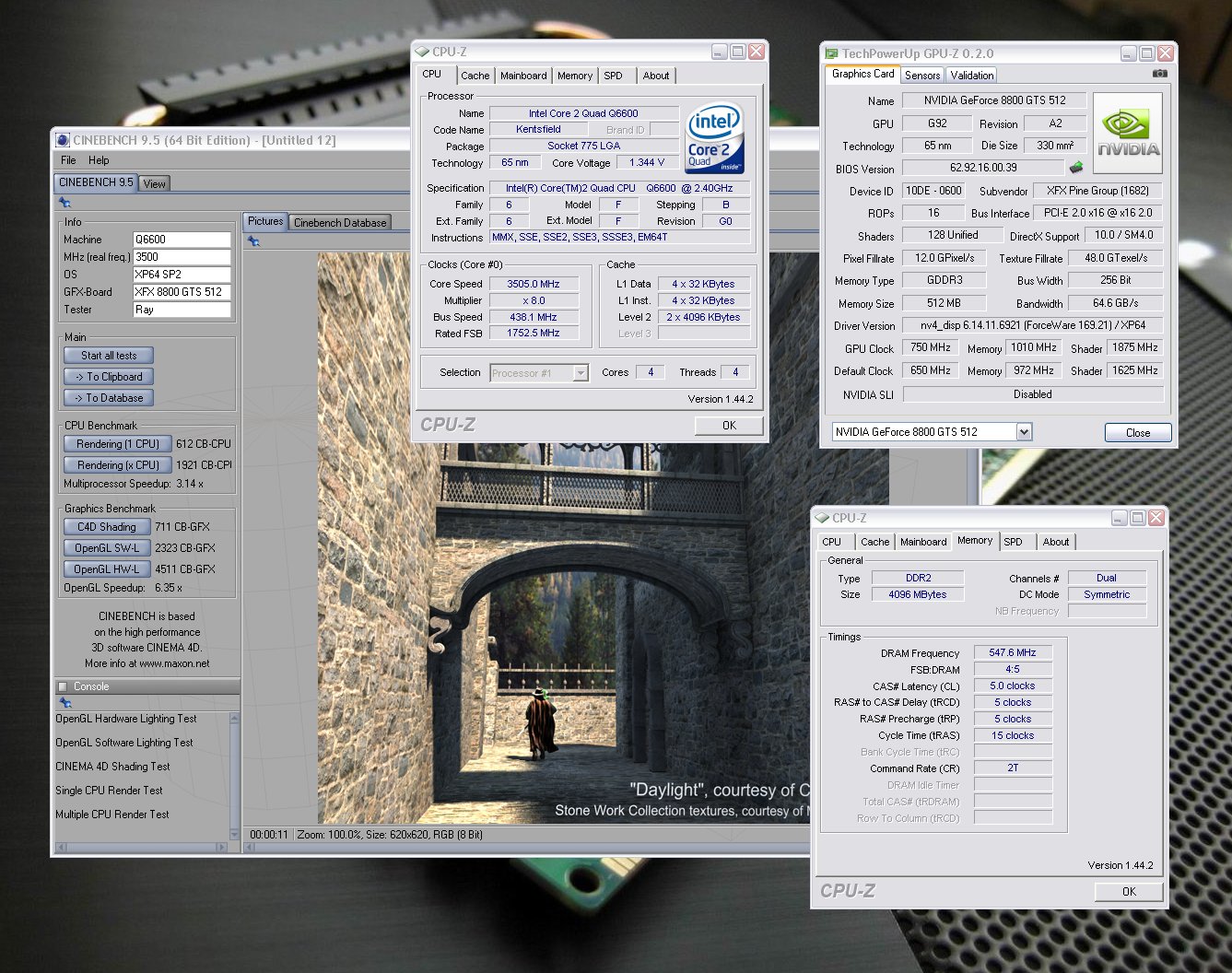

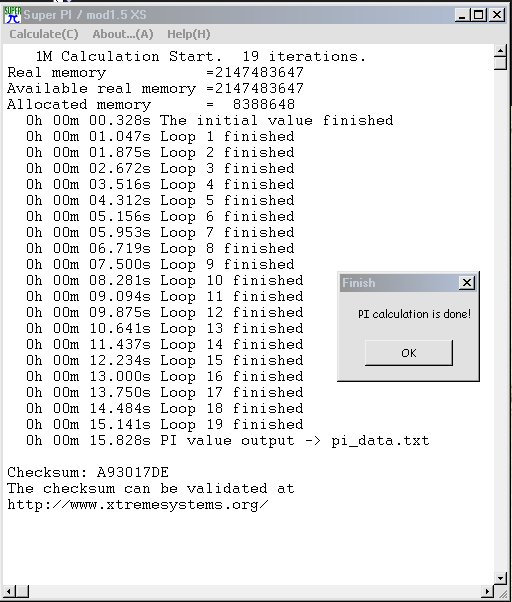

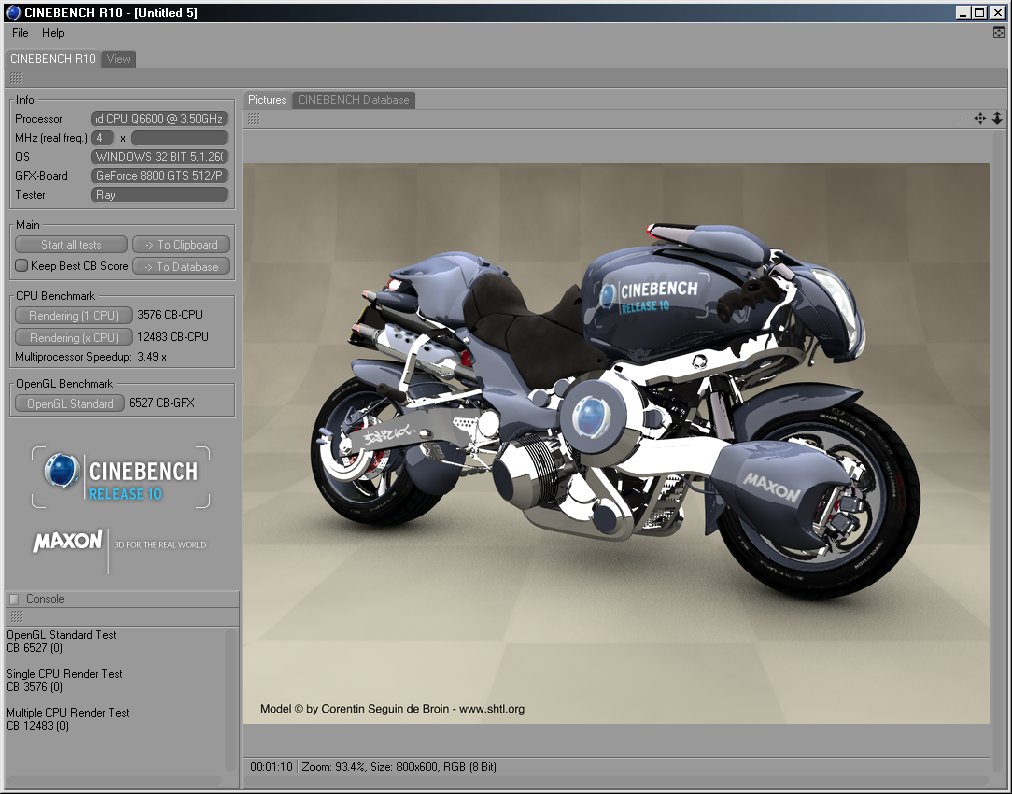

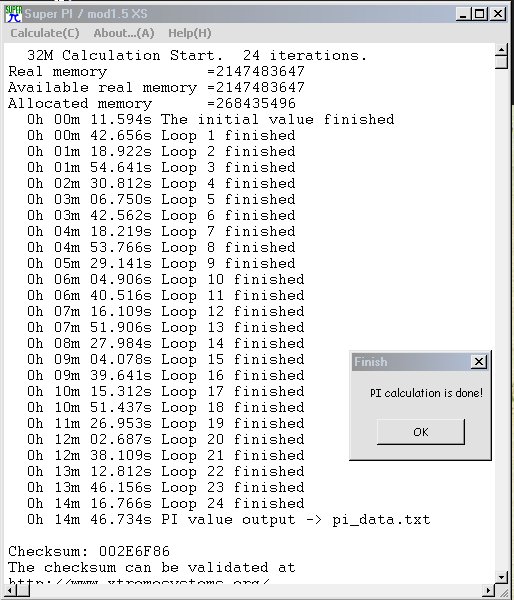

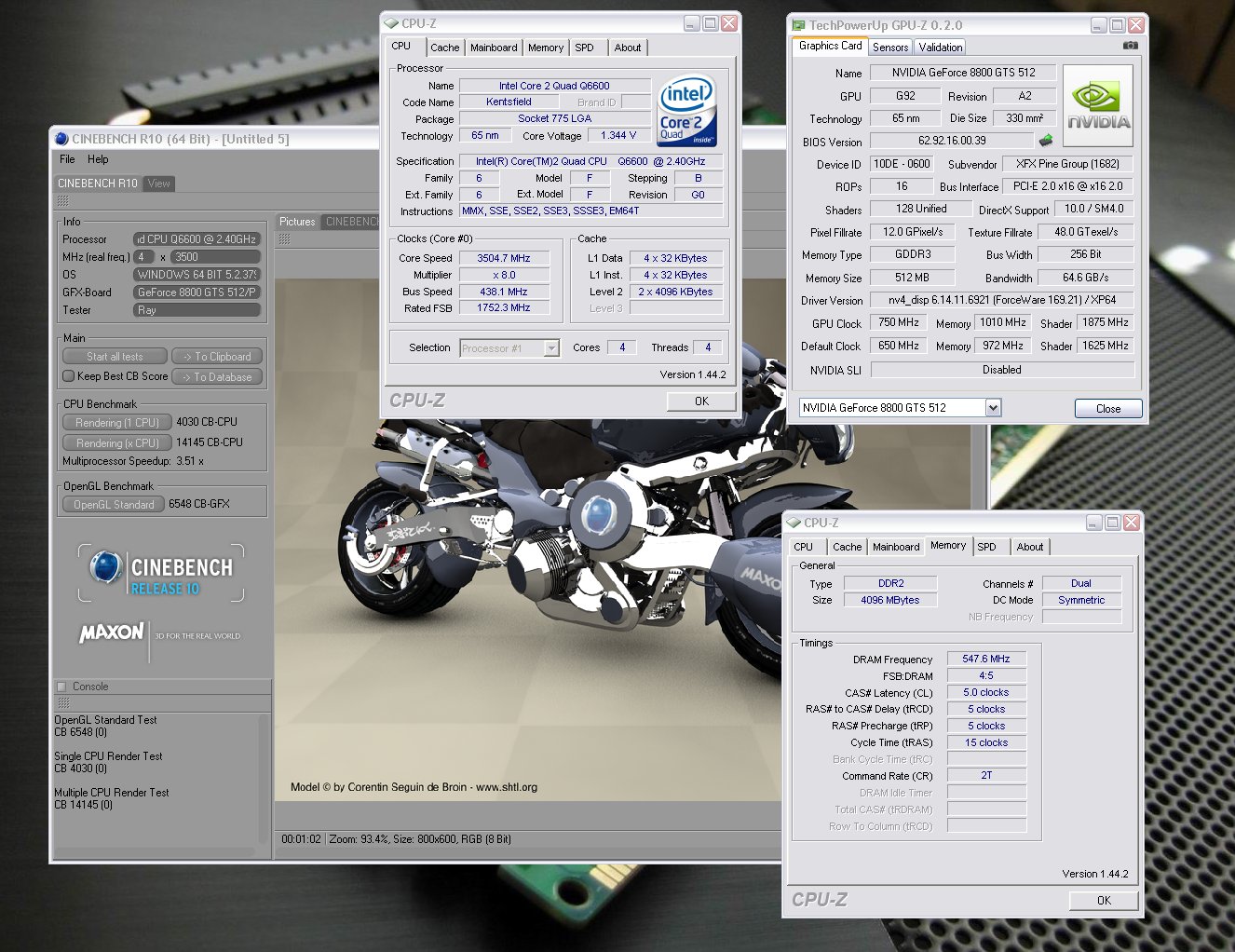

Cinebench and SuperPi results:

PC201B PC201B PC201B PC201B PC201B PC201B



20.12.2008

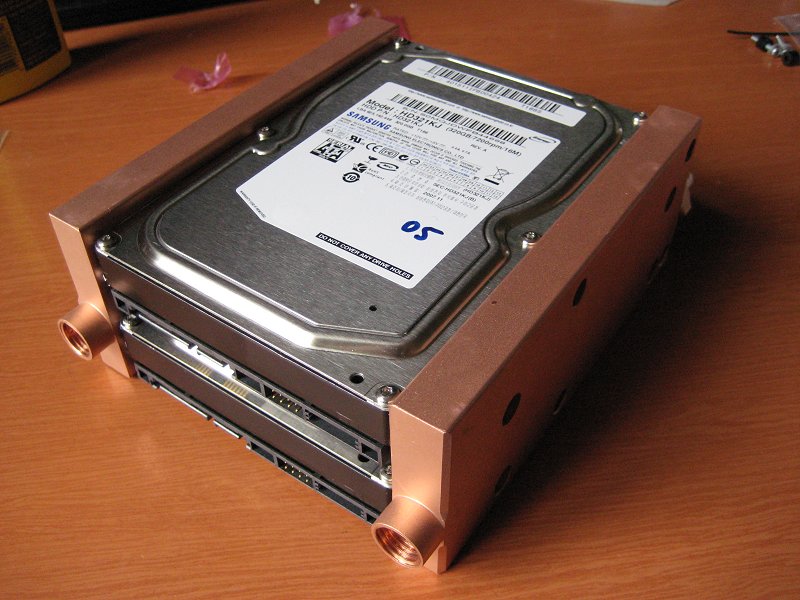

Harddisk update:

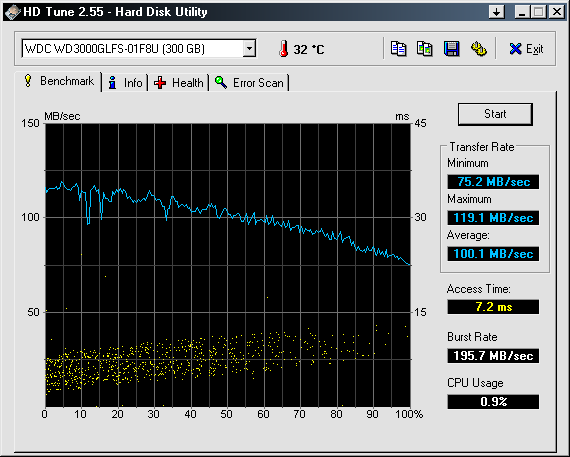

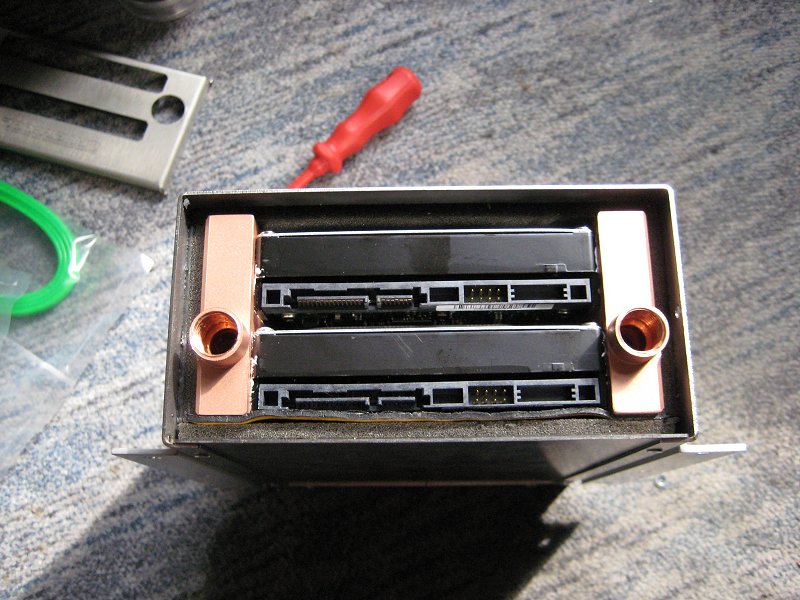

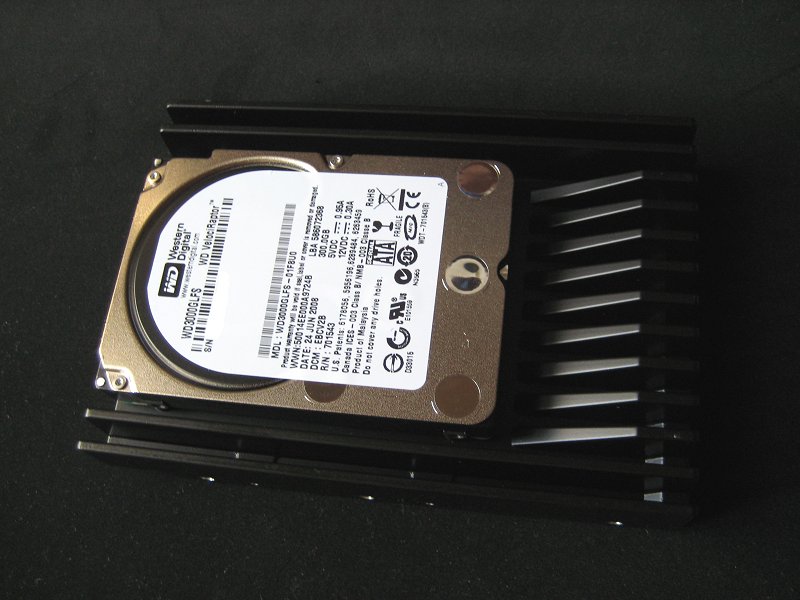

Added Western Digital WD3000GLFS VelociRaptor as boot drive and a 3rd Samsung HD321KJ for backup:


PC201B PC201B PC201B



November 2009
NT destroyed itself with a loud sound, R.I.P:
Replaced Seasonic S12-650 with a Seasonic S12-550, which was already available.






What next:

To be continued ...
