Rays Lian Li PC7077
2006

Rays Lian Li PC7077 at Nethands
Rays Lian Li PC7077 2005




Case
Lian Li PC7077
2 mm Alu Profile
2 and 4 mm Bastlerglas
0,8 mm and 1,0 mm Lochblech



Hardware
DFI Lanparty NF4 Ultra-D
AMD Opteron 170 DualCore (Denmark/Toledo, 2 x 1 MB L2 Cache)
2 x 1024 MB OC-Wear Goliath Ultra PC4000
Sapphire ATI X1900XTX
Soundblaster Audigy2 ZS
2 x Hitachi HDT722516DLA380 160 GB SATA-II
1 x Toshiba SD-1912 16xDVD/48xCD IDE
1 x Plextor PlexWriter PX-740A
be quiet! Dark Power Pro 600W NT

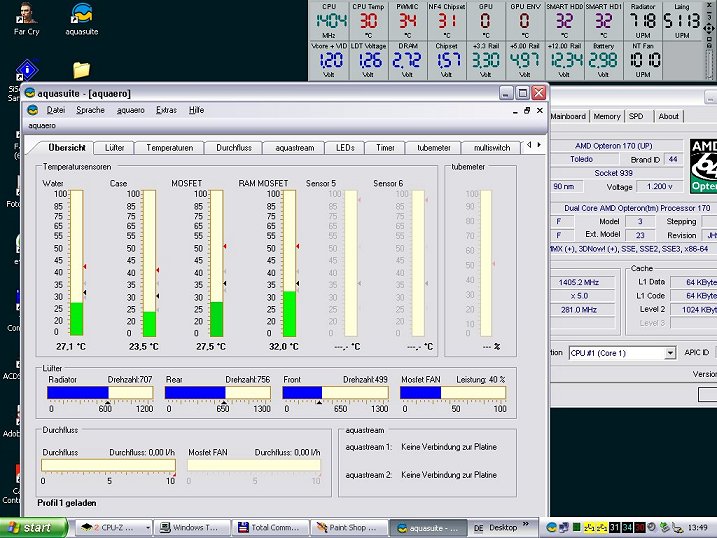

Aquacomputer Aquaero 4.0

Watercooling

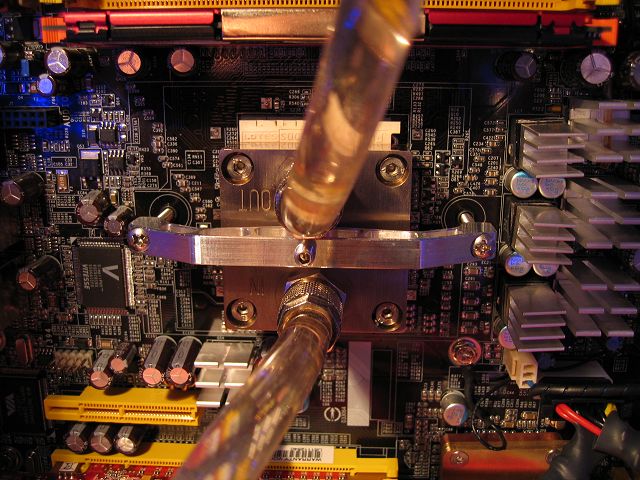

Alphacool NexXxoS XP with Zern Holder
EK Water Block FCX1800/1900/Crossfire - ATI

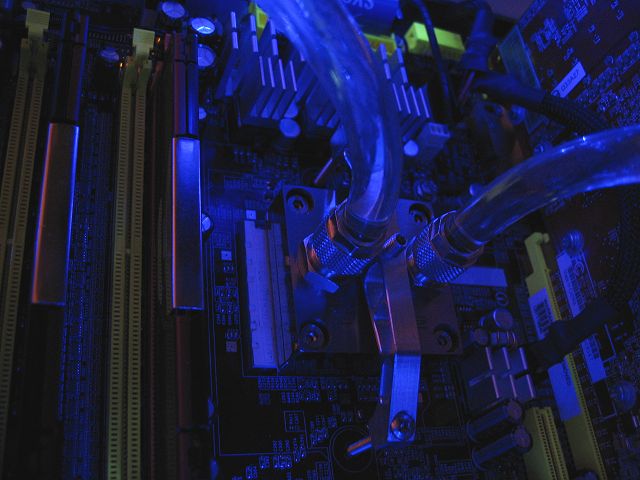

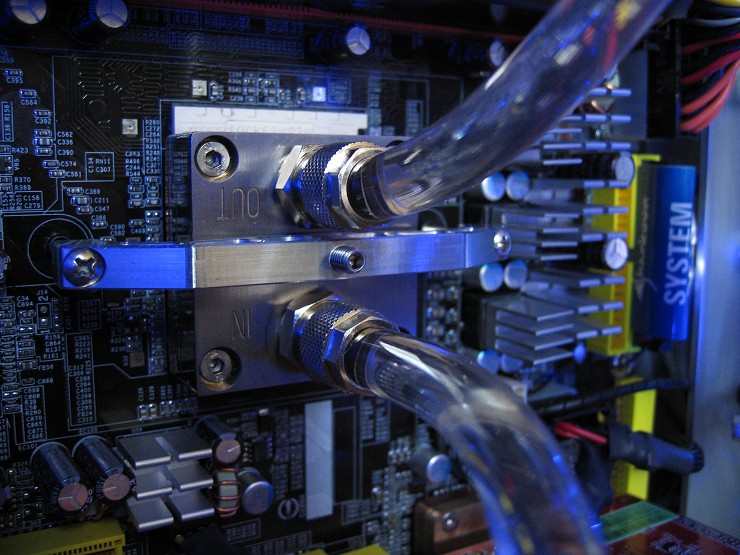

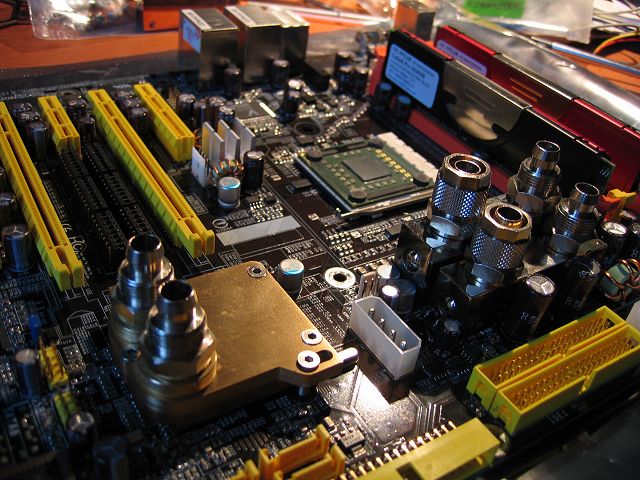

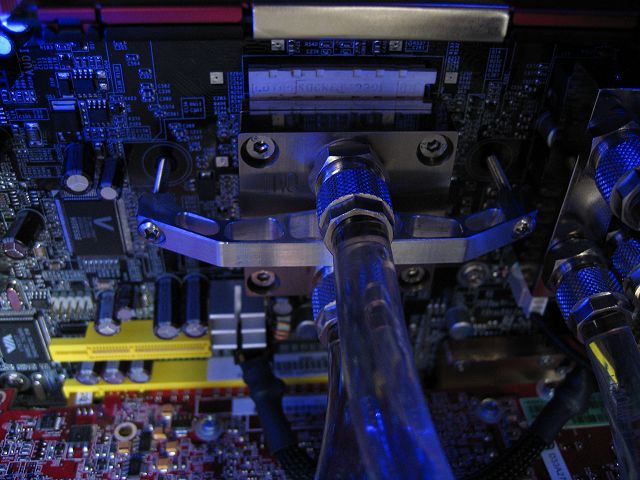

DFI Lanparty Chipset Freezer
SILENTstar HD-Dual
Laing DDC-Ultra 12 with DDC-Case
Cape Coolplex 25 AB
Black ICE Xtreme III
Tygon R3603 11,2/8mm

 Aircooling
6 x SilenX iXtrema 120 Blue:
Front, Rear, 3 x Radiator, Mobo Power MOSFETs



06-05-2006

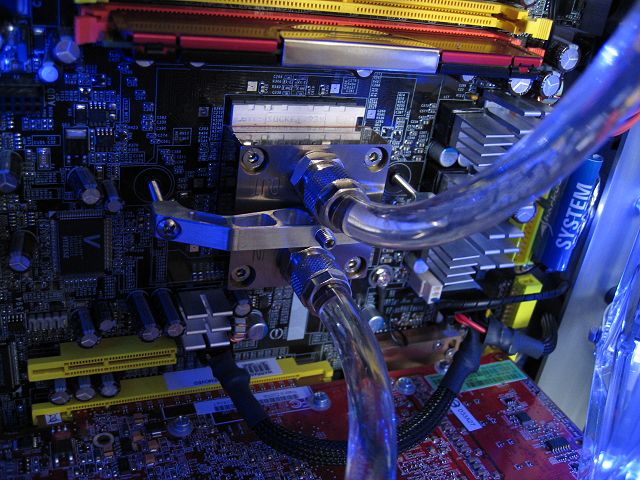

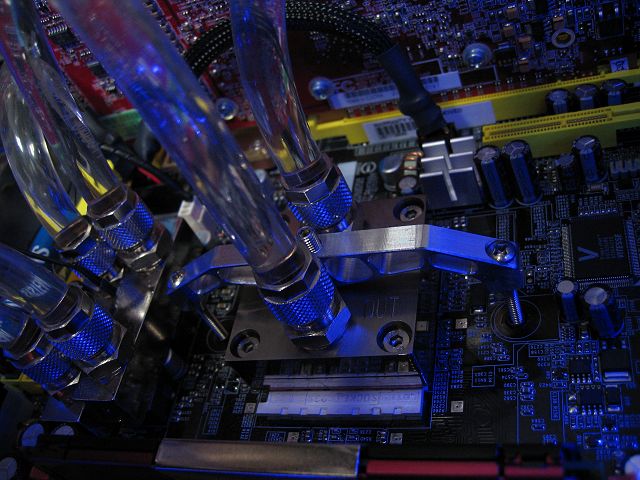

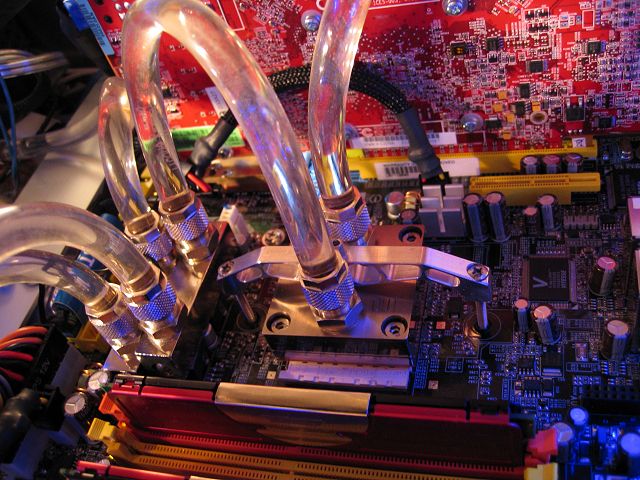

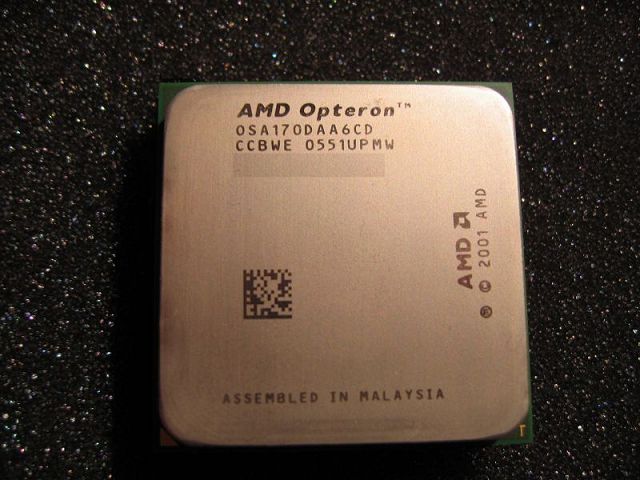

CPU AMD Opteron 170 DualCore and 2 x 1024 MB OC-Wear Goliath Ultra PC4000
Additional MOSFET cooling via FAN.

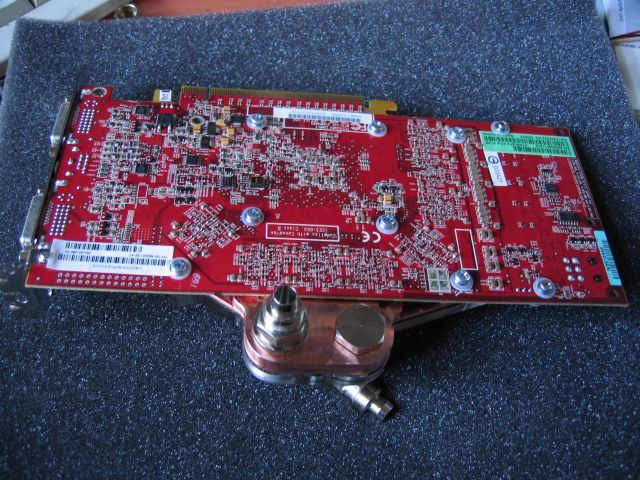

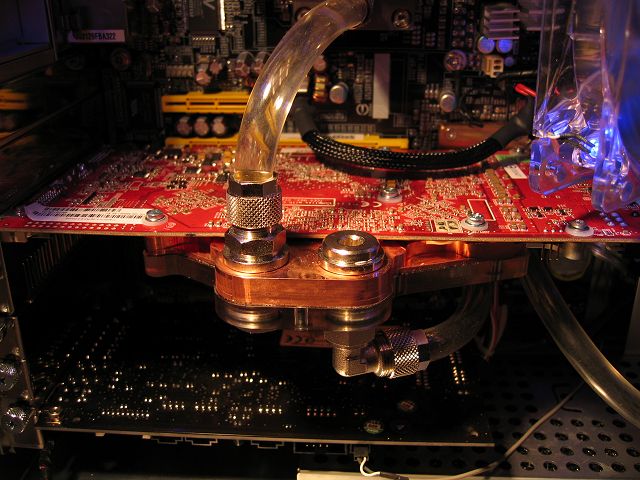

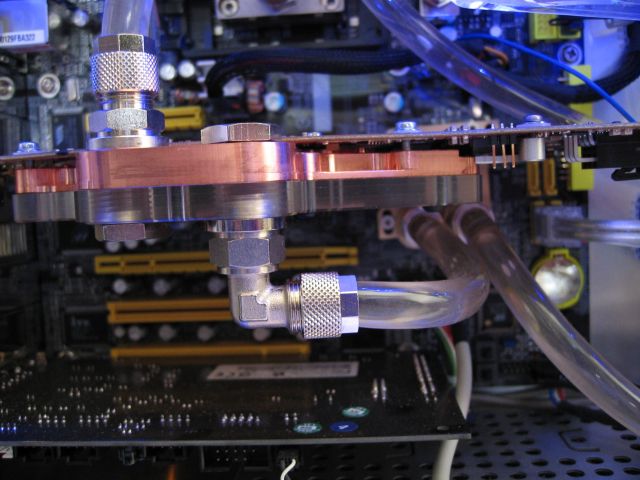

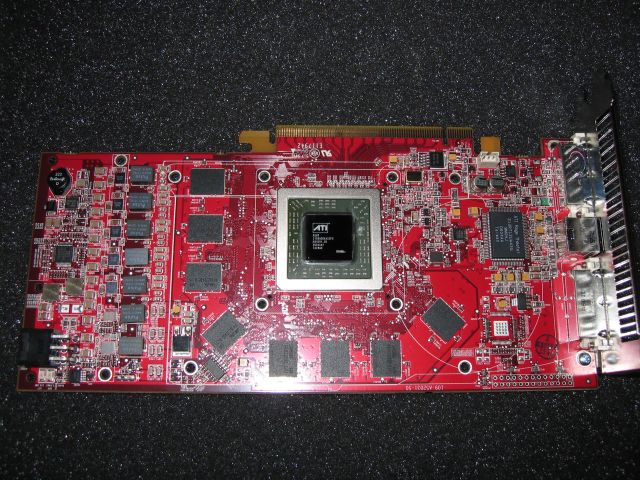

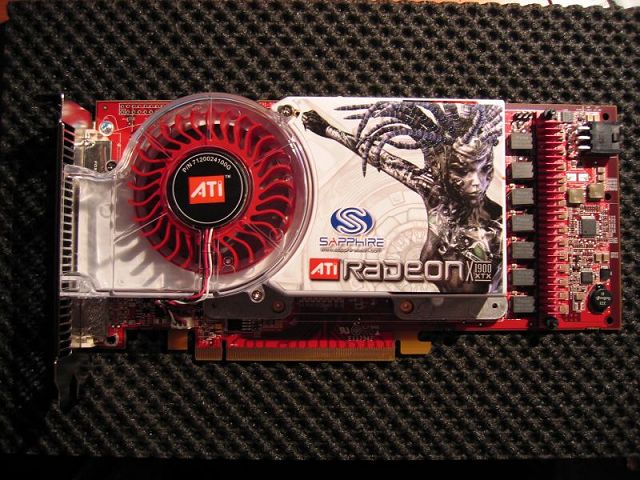

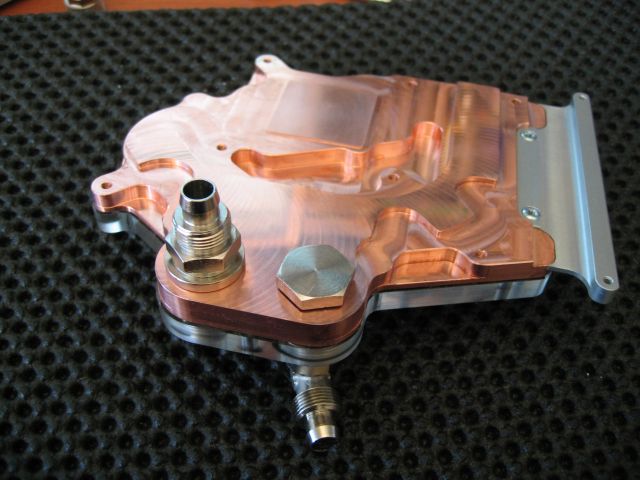

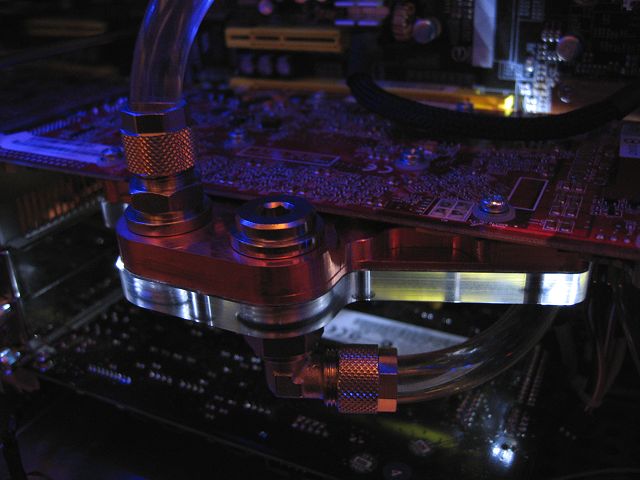

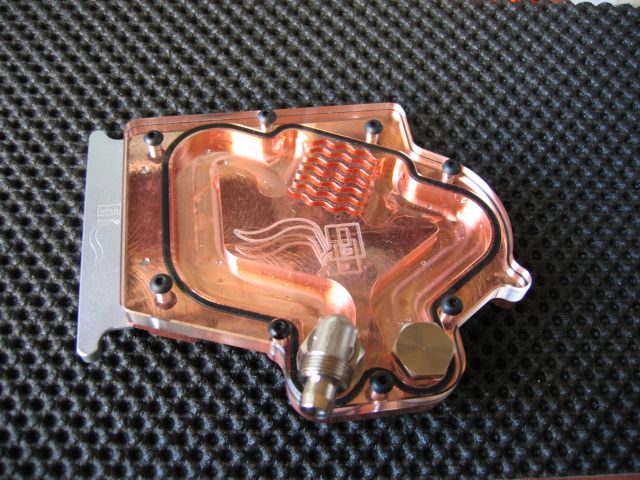

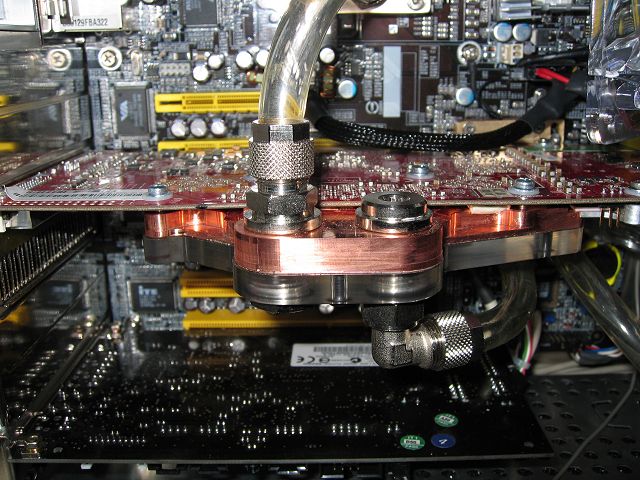

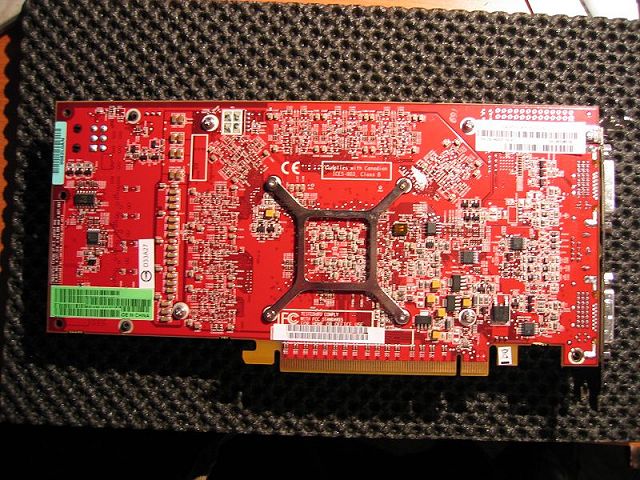

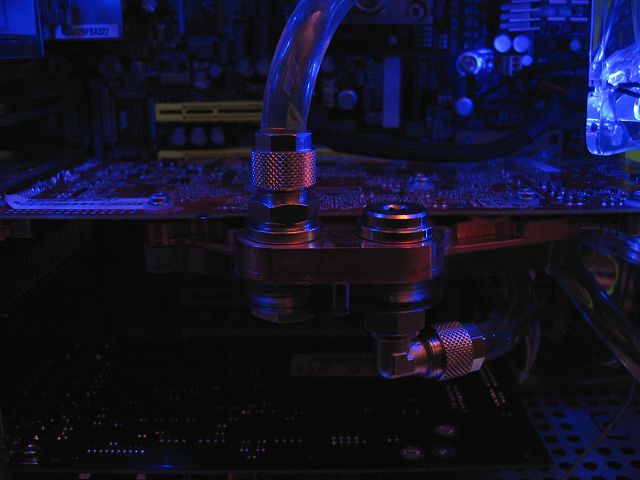

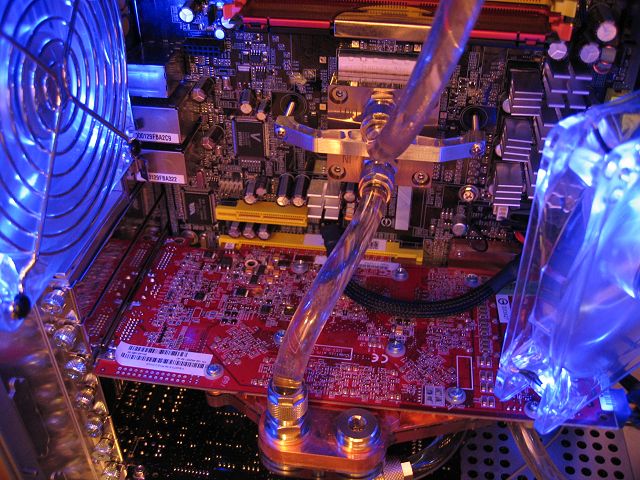

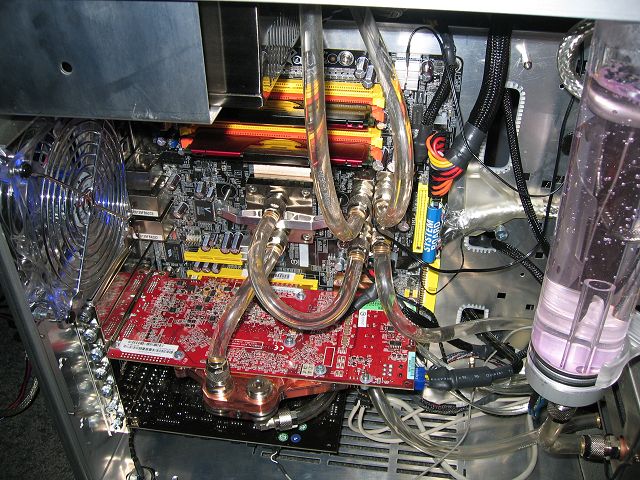

Sapphire ATI X1900XTX and EK Water Block FCX1800/1900/Crossfire





14-05-2006

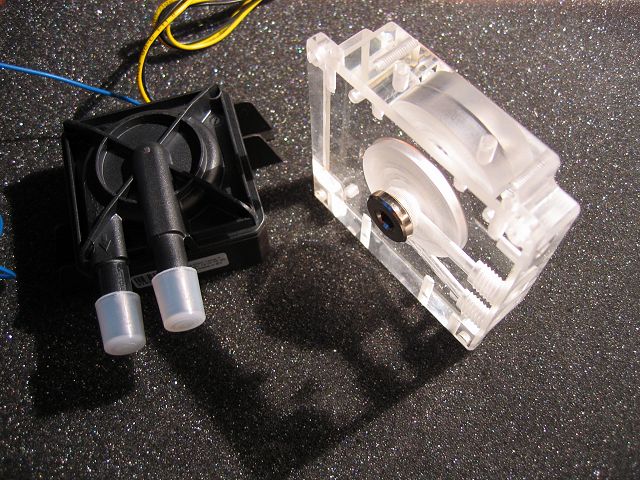

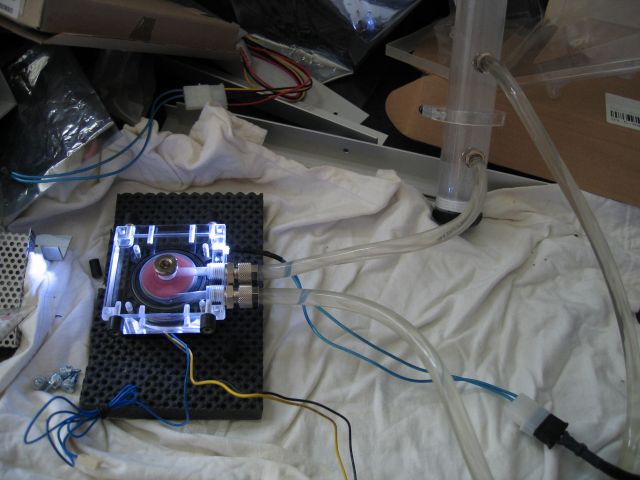

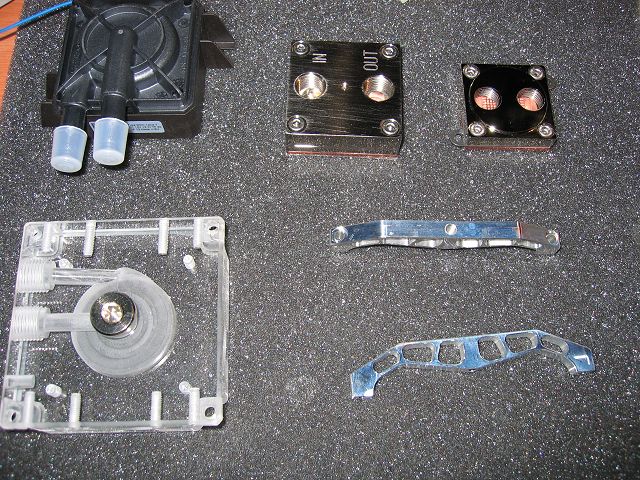

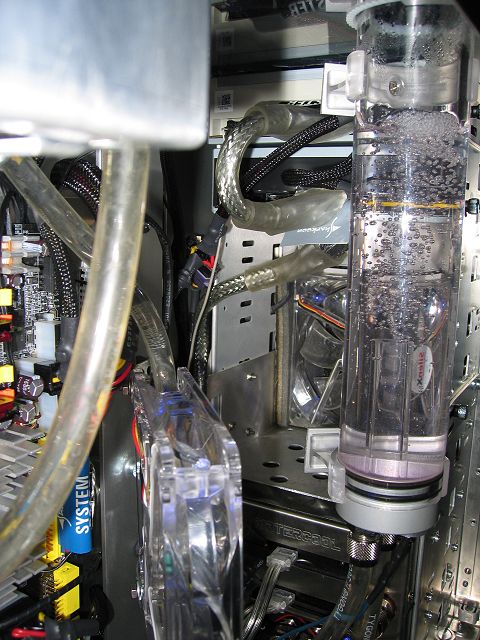

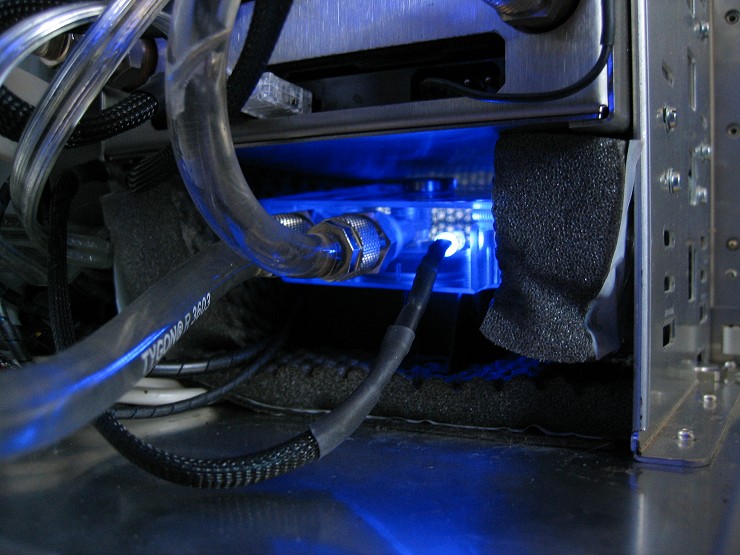

Laing DDC-Ultra 12 with DDC-Case
The two cooler are for another machine, the Zern Holder replaces the original from Alphacool



be quiet! Dark Power Pro 600W NT

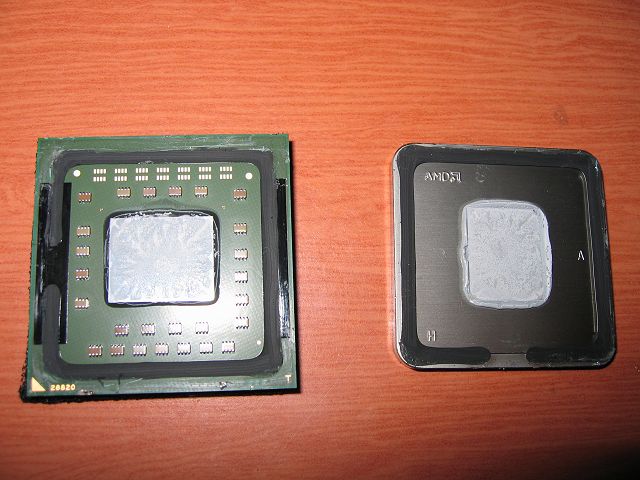

Heat Spreader removed

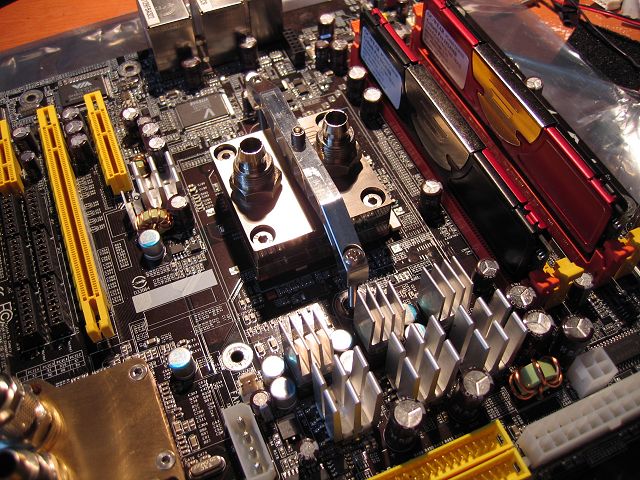

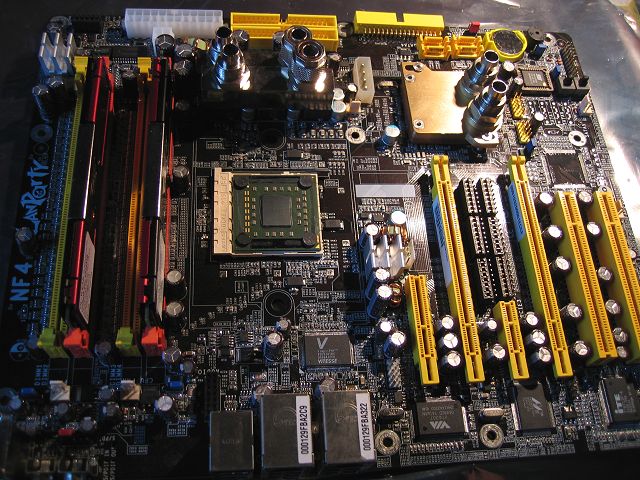

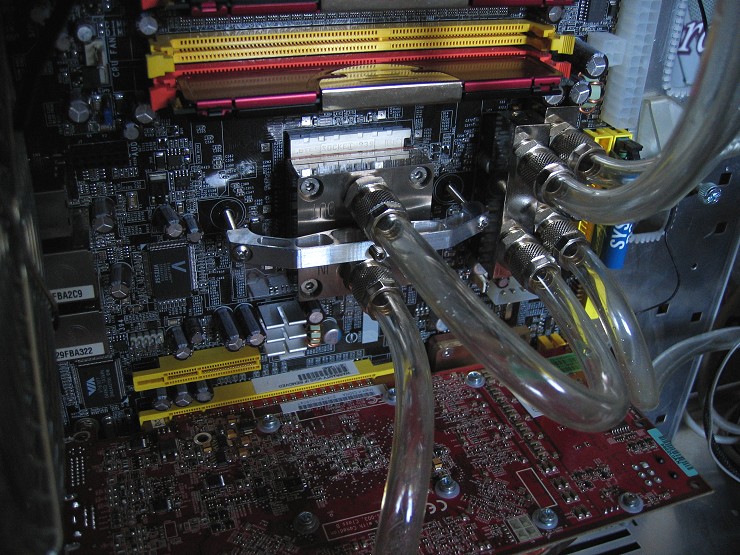

Additional Power MOSFET water cooling for test





20-05-2006

Power MOSFET water cooling test showed bad results (over 60° C) for PWM temps.
Now heatsinks are back on the MOSFETs, cooled with an extra FAN. PWM temps now 51° C max!



Replaced original feets by ALU-Acryl feets ;-).

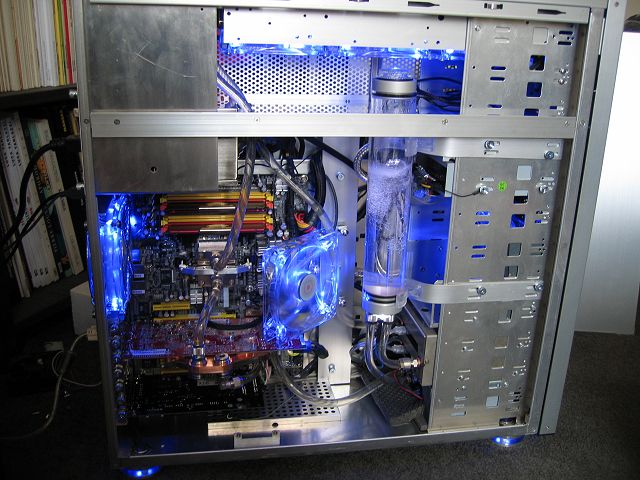

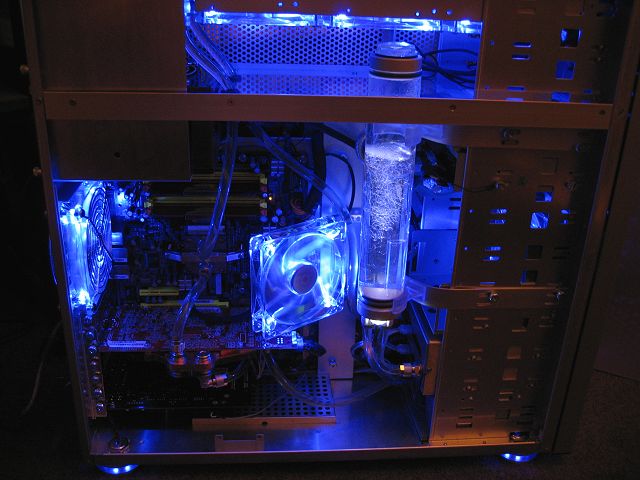

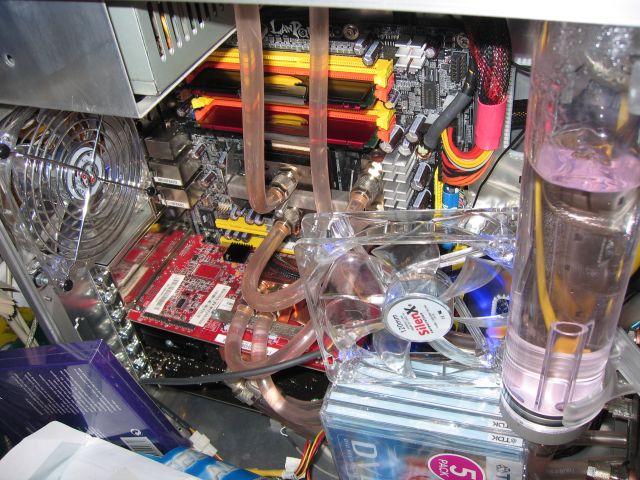

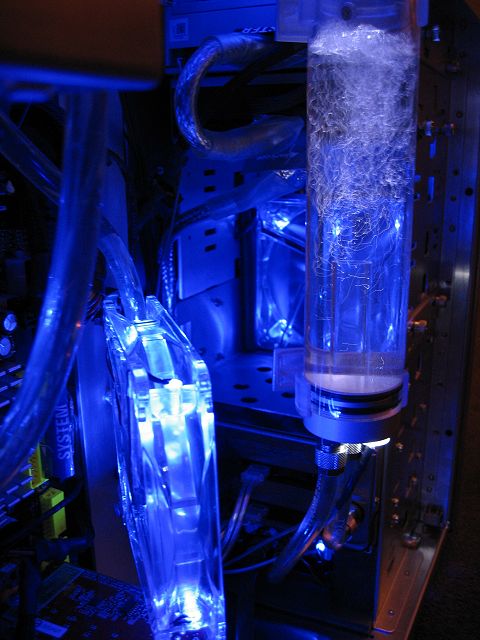

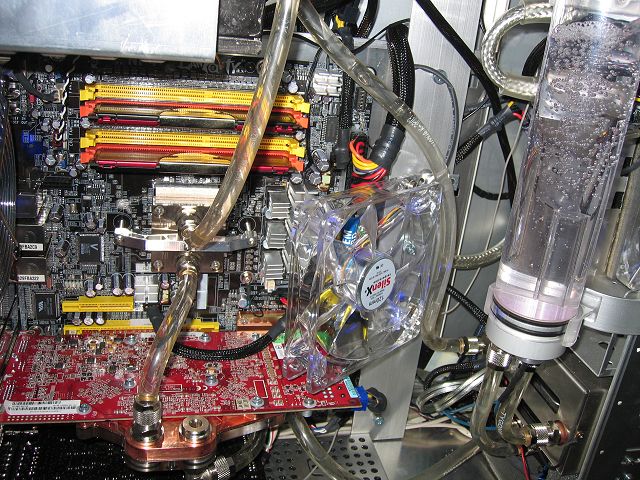

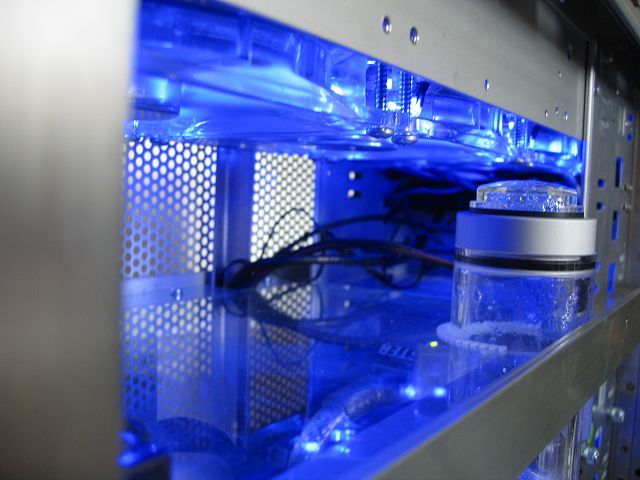

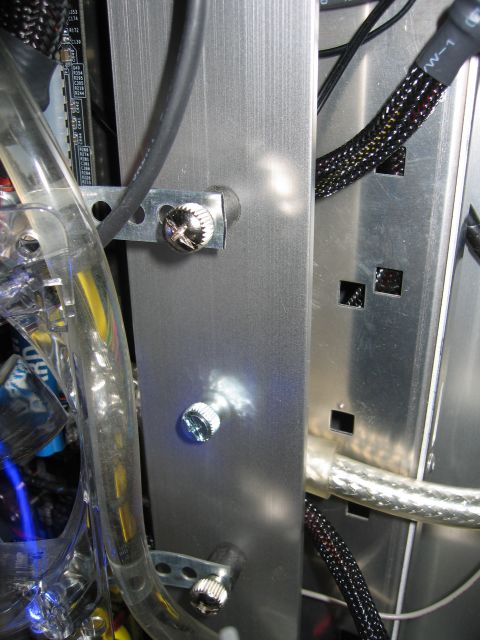

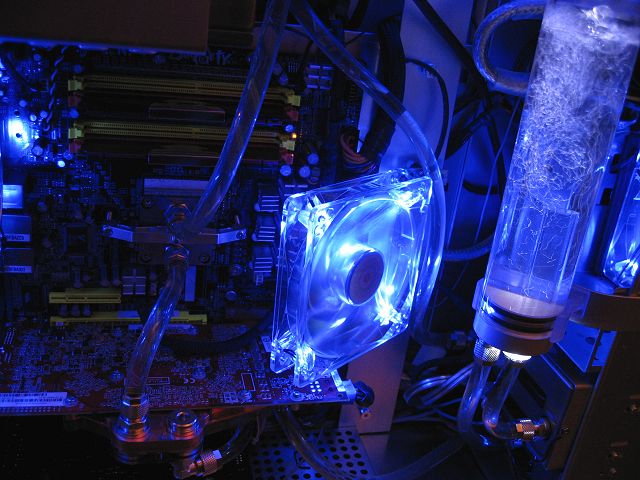

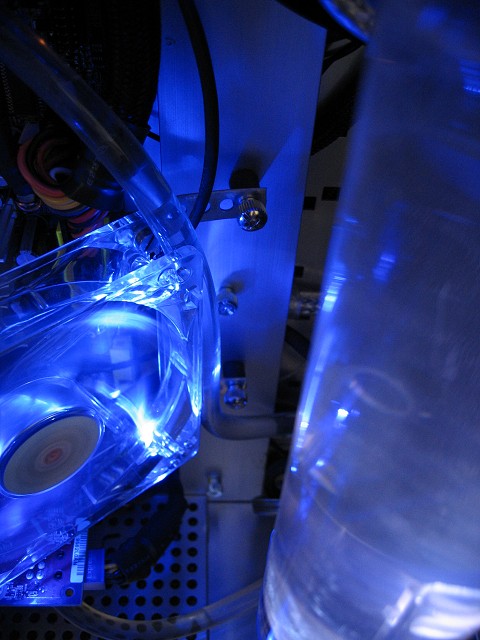

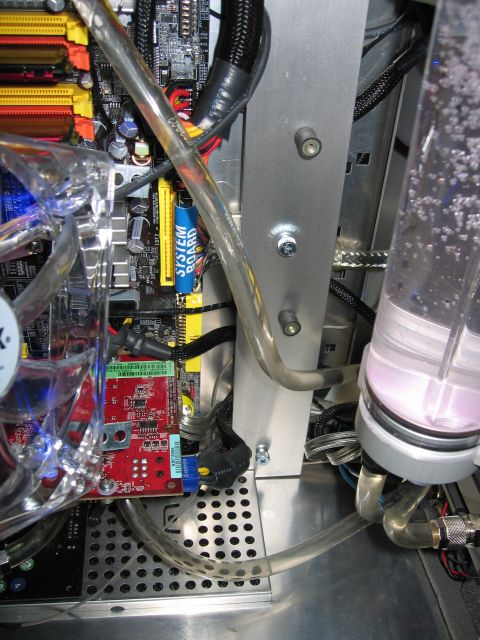

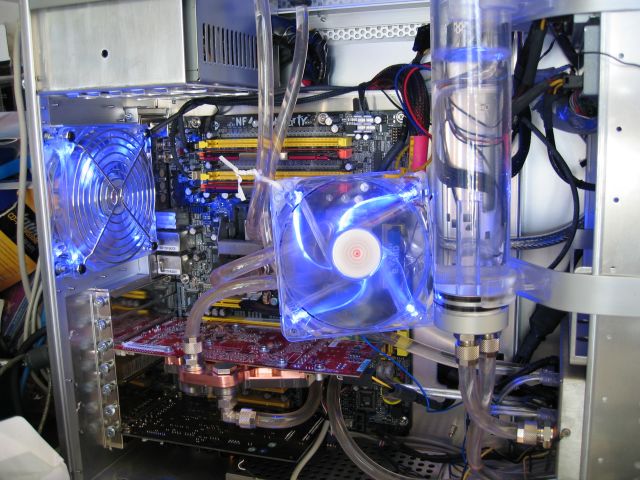

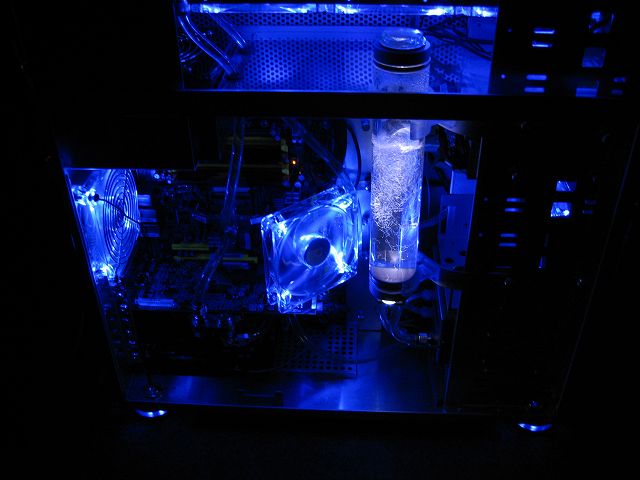

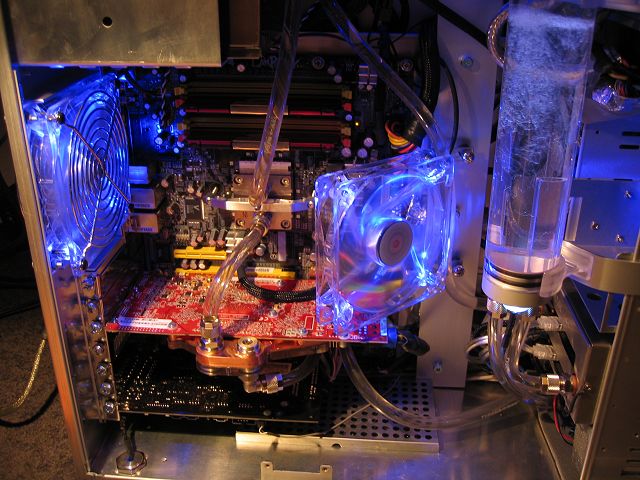

Some more impressions

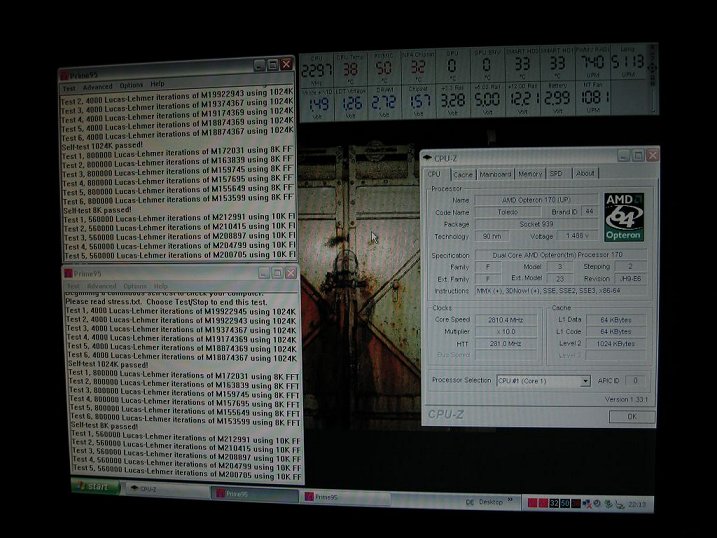

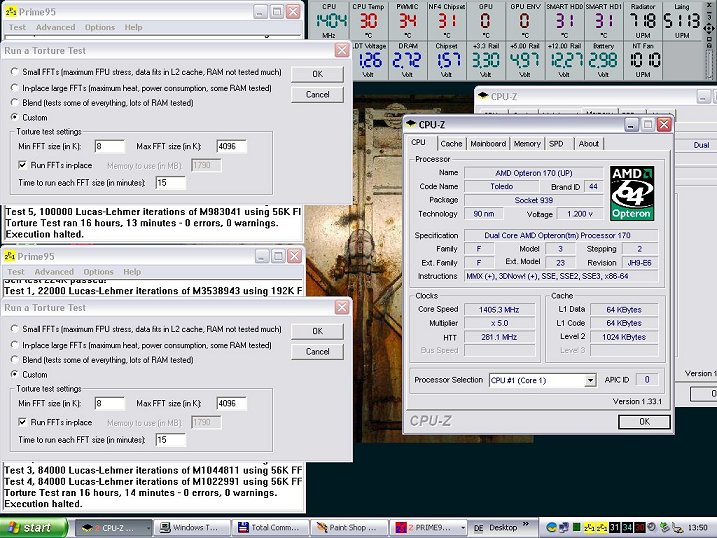

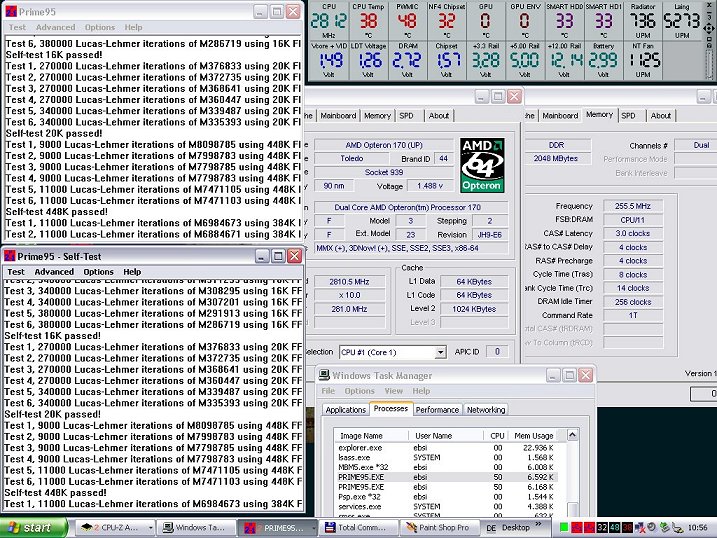

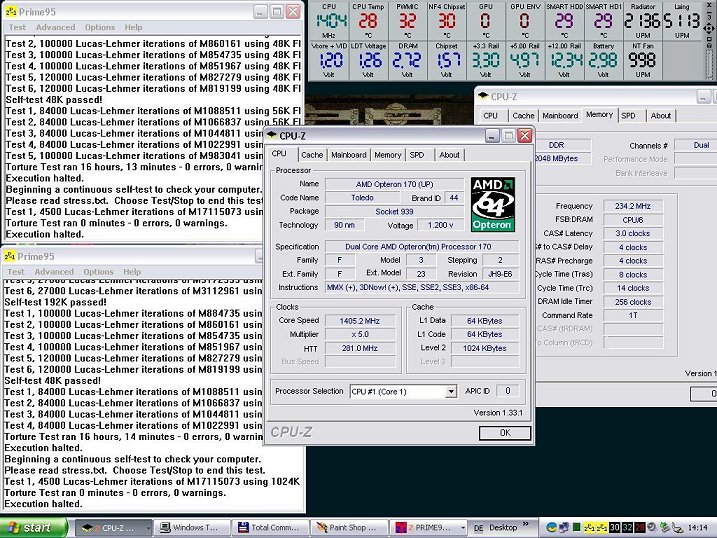

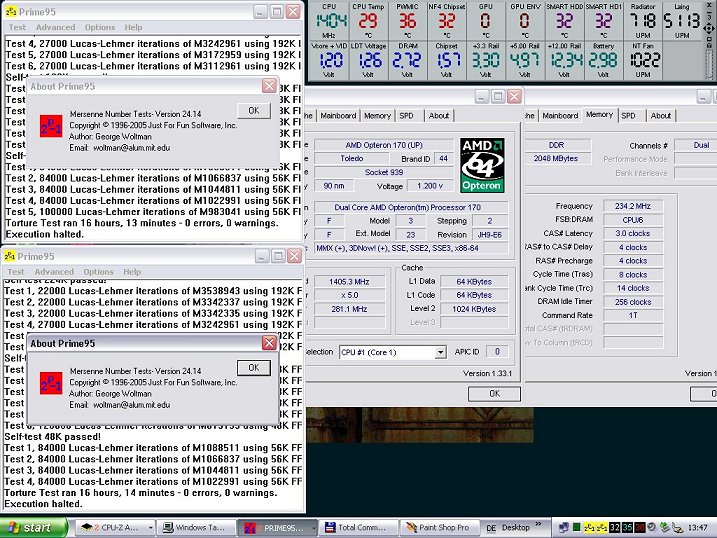

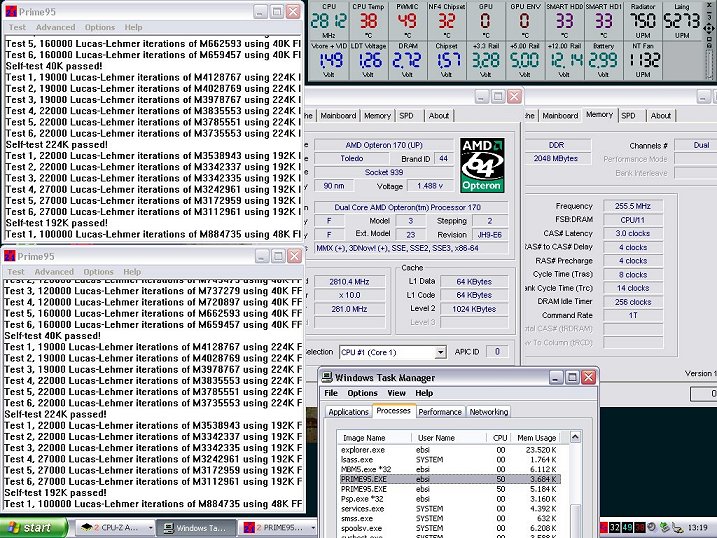

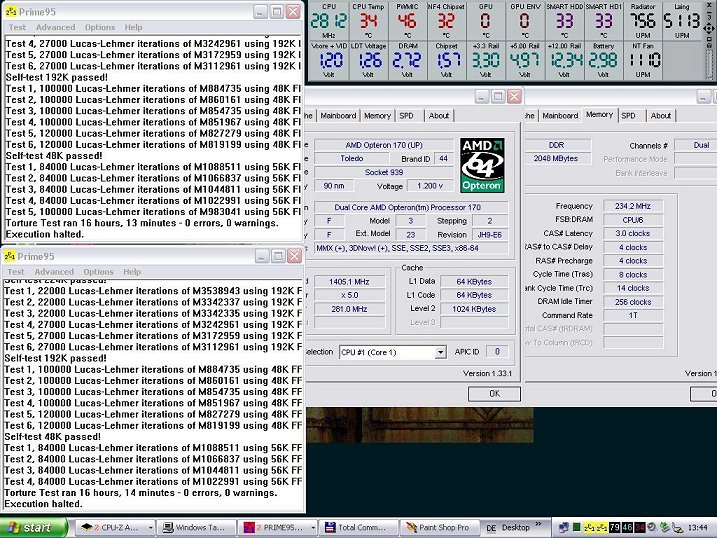

Starting stress test with two instances of Prime95 64Bit 24.14
under Windows XP64 at about 22:00 and running for 16 hours:

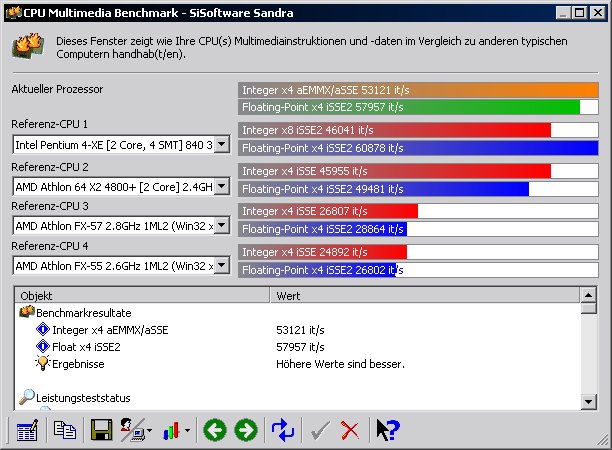

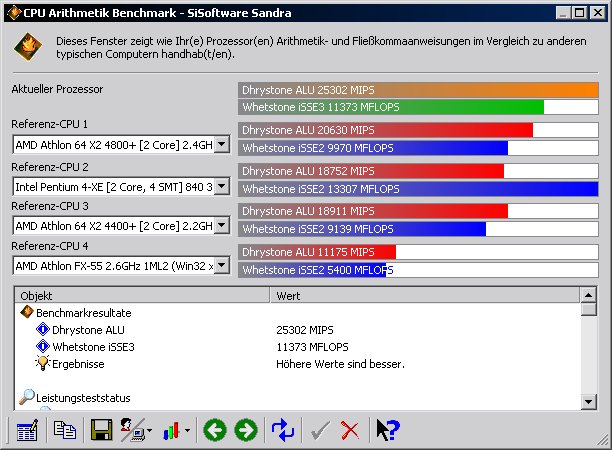

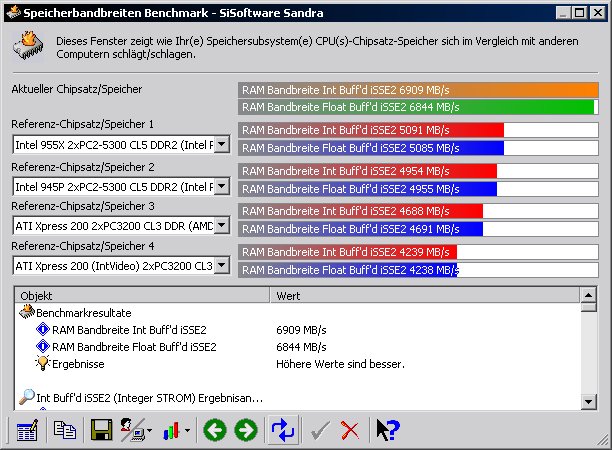

SiSoftware Sandra Lite 2005.SR3:



Overclocking XT1900XTX GPU/MEM 650/775 MHz to 700/850 MHz:

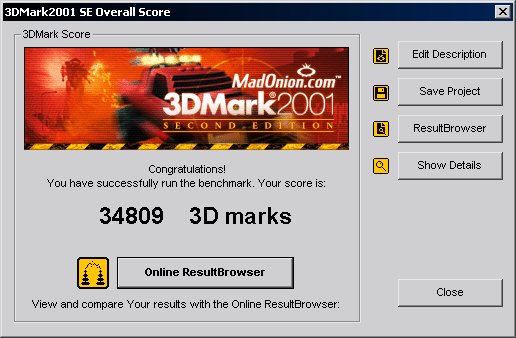

 3DMark 01: 34809

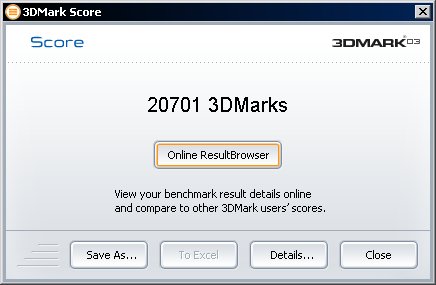

 3DMark 03: 20701

  3DMark 05: 12797

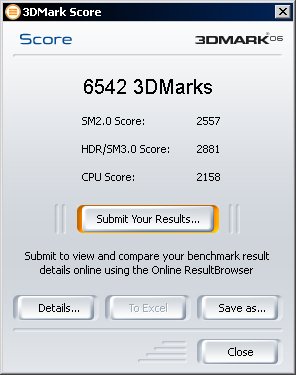

  3DMark 06: 6542

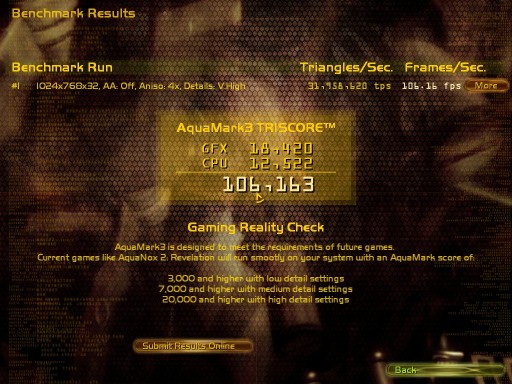

  Aquamark3: 106163
